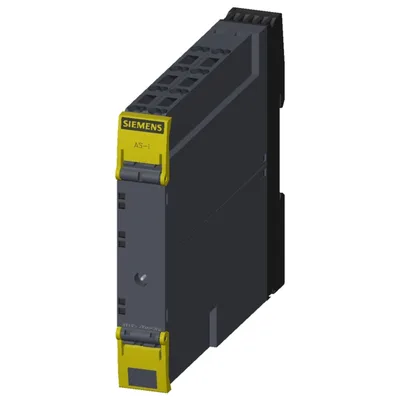

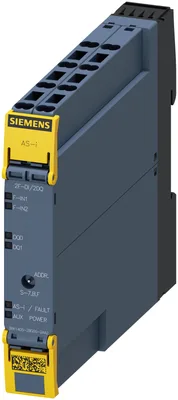

Siemens 3RK1405-2BG00-2AA2
ASIsafe SlimLine Compact modül SC17.5F dijital safety 2 F-DI/2 DQ, IP20 2 x giriş için mechanical sensors 2 x standart çıkış 24 V DC çıkış besleme can be switched spring-type terminals genişlik 17,5 mm
design of the productAS-i SC17.5F, 2F-DI/2DQ
product type designation3RK1
design of the device typestandard slave
AS-Interface device profileS-7.B.F
ID1 codeF; Factory setting, changeable
at 30 V maximum270 mA
Ürün Hakkında
ASIsafe SlimLine Compact modül SC17.5F dijital safety 2 F-DI/2 DQ, IP20 2 x giriş için mechanical sensors 2 x standart çıkış 24 V DC çıkış besleme can be switched spring-type terminals genişlik 17,5 mm
Siemens 3RK1405-2BG00-2AA2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product designationSlimline Compact I/O module for use in the control cabinet
design of the productAS-i SC17.5F, 2F-DI/2DQ
product type designation3RK1
design of the device typestandard slave
AS-Interface device profileS-7.B.F
ID1 codeF; Factory setting, changeable
operating voltage according to AS-Interface specification18... 31,6 V
product function suitable for AS-i Power24VVar
at 30 V maximum270 mA
at 24 V with AS-i Power24V maximum270 mA
type of address setting of the AS-i devicesvia front addressing socket
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
Net Weight0,139 kg
according to EN 61346-2K
according to DIN 40719 extended according to IEC 204-2 according to IEC 750A
shock resistance15 g / 11 ms (modules) veya 10 g / 11 ms (modules with device connector)
other informationAn auxiliary external feed (AUX POWER) of between 20 ve 30 V DC is necessary for supplying the output circuits. The auxiliary feed must comply with IEC 60990 (PELV), protection class III.
Digital Inputs
number of digital inputs0
number of digital inputs safety-related2
type of input characteristicmechanical contacts
Digital Outputs
number of digital outputs2
type of switching outputPNP transistor
product function for power supply reverse polarity protectionVar
property of the output short-circuit proofVar
product functionBuilt-in induction protection
total current of digital outputs per module maximum0,5 A
note0,2 A with supply via AS interface / 0,5 A with supply via Uaux
type of voltage supply at the outputsAS interface / U_AUX switchable
ampacity of the semiconductor output at DC-13 at 24 V0,5 A; 0,15 A with supply via AS interface / 0,5 A with supply via Uaux
Analog girişler
number of analog inputs0
Analog çıkışlar
number of analog outputs0
IEC 62061
PFHD with high demand rate according to IEC 620614.5E-9 1/h
ISO 13849
performance level (PL) according to EN ISO 13849-1e
category according to EN ISO 13849-1up to Category 4
IEC 61508
Safety Integrity Level (SIL) according to IEC 615083
PFDavg with low demand rate according to IEC 615085E-6
Safe failure fraction (SFF)99 %
T1 value for proof test interval or service life according to IEC 6150820 a
Device connector
for AS-Interface2 A
for external auxiliary voltage4 A

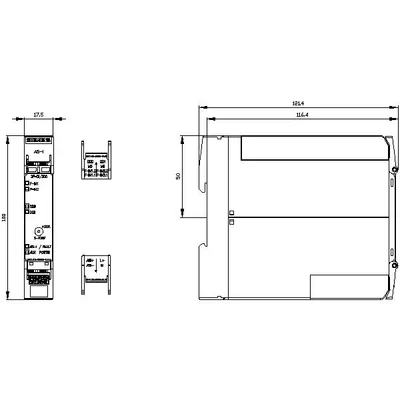

Installation/ mounting/ dimensions
fastening methodscrew ve snap-on mounting
height100 mm
width17,5 mm
depth120 mm
Ambient conditions
during operation-25... +70 °C
during storage-40... +85 °C
Connections/ Terminals
type of electrical connection of the inputs and outputsspring-loaded terminal (push-in)
solid1x (0,5... 1,5 mm²), 2x (0,5... 1,5 mm²)
finely stranded with core end processing1x (0,25... 1,0 mm²), 2x (0,25... 1,0 mm²)
finely stranded without core end processing1x (0,5... 1,5 mm²), 2x (0,5... 1,5 mm²)
for AWG cables solid1x (20... 16), 2x (20... 16)
for AWG cables stranded1x (20... 16), 2x (20... 16)
Aksesuarlar 18
Siemens 3RK1405-2BG00-2AA2 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RK1901-1YA00 | Aksesuar · Device connector | |
| 3ZY1141-2BA00 | Aksesuar · Removable terminals | |
| 3ZY1141-1BA00 | Aksesuar · Removable terminals | |
| 3ZY1121-2BA00 | Aksesuar · Removable terminals | |
| 3ZY1121-1BA00 | Aksesuar · Removable terminals | |
| 3ZY1131-2BA00 | Aksesuar · Removable terminals | |
| 3ZY1122-2BA00 | Aksesuar · Removable terminals | |
| 3ZY1440-1AA00 | Aksesuar · Further accessories | |
| 3ZY1131-1BA00 | Aksesuar · Removable terminals | |
| 3RA2908-1A | Aksesuar · Miscellaneous accessories · screwdrivers | |
| 3ZY1311-0AA00 | Aksesuar · Further accessories | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RT2900-1SB10 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RK1901-1YA11 | Aksesuar · Device termination connector | |
| 3RK1901-1YA10 | Aksesuar · Device connector | |
| 3RK1901-1YA01 | Aksesuar · Device termination connector | |
| 3ZY1122-1BA00 | Aksesuar · Removable terminals | |
| 3ZY1450-1BA00 | Bileşen · Further accessories |
