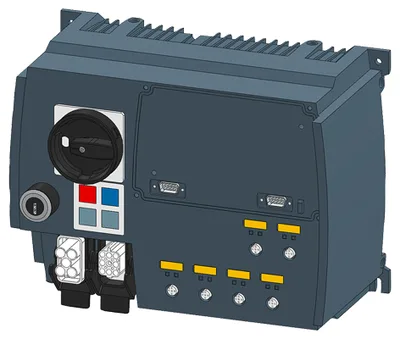

Siemens 3RK1395-6LS71-2AD5
SIRIUS motor starter M200D technology modül direct-on-line starter elektronik anahtarlama AC-3, 5,5 kW / 400 V 1,5 A...12.00 A elektronik aşırı yük koruması thermistor: thermoclick / PTC ile fren kontak 180 V DC 4 DI / 2 DO Han Q4/2 - Han Q8/0 ile manuel on-site çalışma ve keyswitch via communications modül 3RK1305* can be used on PROFIBUS veya PROFINET
product brand nameSIRIUS
product designationMotor starters
design of the productdirect starter
product type designationM200D
on-site operationVar
insulation voltage rated value500 V
Ürün Hakkında
SIRIUS motor starter M200D technology modül direct-on-line starter elektronik anahtarlama AC-3, 5,5 kW / 400 V 1,5 A...12.00 A elektronik aşırı yük koruması thermistor: thermoclick / PTC ile fren kontak 180 V DC 4 DI / 2 DO Han Q4/2 - Han Q8/0 ile manuel on-site çalışma ve keyswitch via communications modül 3RK1305* can be used on PROFIBUS veya PROFINET
Siemens 3RK1395-6LS71-2AD5
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationMotor starters
design of the productdirect starter
product type designationM200D
on-site operationVar
control circuit interface to parallel wiringYok
insulation voltage rated value500 V
degree of pollution3
surge voltage resistance rated value6.000 V
between main and auxiliary circuit400 V
between control and auxiliary circuit24 V
shock resistance12 g / 11 ms
vibration resistance7 mm / 2 g
type of coordination1
Substance Prohibitance (day/month/year)07/01/2006
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight3,102 kg
direct startVar
reverse startingYok
product component motor brake outputVar
brake control with 230 V ACYok
brake control with 400 V ACYok
brake control with 24 V DCYok
brake control with 180 V DCVar
brake control with 500 V DCYok
product extension braking module for brake controlYok
product function short circuit protectionVar
design of short-circuit protectioncircuit-breakers
at 400 V rated value50.000 A
at 500 V rated value20.000 A
EMC emitted interference according to IEC 60947-1CISPR11, ambience A (group 2)
EMC immunity according to IEC 60947-1corresponds to degree of severity 3, ambience A (industrial sector)
due to burst according to IEC 61000-4-42 kV network connection / 1 kV control connection
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
Safety related data
with low demand rate according to SN 3192050 %
with high demand rate according to SN 3192075 %
B10 value with high demand rate according to SN 319201.000.000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
IEC 61508
T1 value for proof test interval or service life according to IEC 6150820 a
Electrical Safety
touch protection against electrical shockfinger-safe
Main circuit
number of poles for main current circuit3
design of the switching contactsolid-state / thyristor / 2 phases
adjustable current response value current of the current-dependent overload release1,5... 12 A
type of the motor protectionfull motor protection
operating voltage rated value200... 440 V
at AC at 400 V rated value12 A
at AC-3 at 400 V rated value12 A
— at 400 V rated value5,5 kW
— at 500 V rated value5.500 W
— at 400 V rated value6 kW
— at 500 V rated value5,5 kW
digital inputs parameterizableVar
digital outputs parameterizableVar
number of digital inputs4
for digital output signals2
for digital input signals4
number of digital outputs2
Besleme gerilimi
type of voltage of the supply voltageDC
Control circuit/ Control
type of voltage of the control supply voltageDC
control supply voltage 1 at DC rated value20,4... 28,8 V
control supply voltage 1 at DC20,4... 28,8 V
in standby mode of operation100 mA
during operation0,6 A
in switching state OFF with bypass circuit2,7936 W
in switching state ON with bypass circuit5,5296 W
Response times
ON-delay time25 ms
OFF-delay time35 ms
mounting positiondikey, yatay, flat
mounting position recommendedyatay
fastening methodscrew fixing

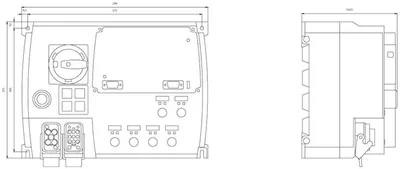

height215 mm
width294 mm
depth148 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +55 °C
during storage-40... +70 °C
during transport-40... +70 °C
relative humidity during operation10... 95 %
PROFIBUS DP protocolYok
PROFINET protocolYok
AS-Interface protocolYok
PROFINET protocolYok
PROFIBUS DP protocolYok
product function bus communicationVar
protocol is supported AS-Interface protocolYok
product function control circuit interface with IO linkYok
for main current circuitplug according to ISO 23570, HAN Q4/2
for auxiliary and control circuitconnector
1 for digital input signalsM12 socket
1 for digital output signalsM12 socket
2 for digital input signalsM12 socket
3 for digital input signalsM12 socket
4 for digital input signalsM12 socket
full-load current (FLA) for 3-phase AC motor at 480 V rated value11 A
— at 220/230 V rated value3 hp
— at 460/480 V rated value7,5 hp
operating voltage at AC at 60 Hz according to CSA and UL rated value480 V
Aksesuarlar 32
Siemens 3RK1395-6LS71-2AD5 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RK1902-0AB00 | Aksesuar · Miscellaneous accessories · tools | |
| 3RK1911-5BA20 | Aksesuar | |
| 3RK1911-5BA10 | Aksesuar · Miscellaneous accessories · seals | |
| 3RK1911-5BA00 | Aksesuar · Miscellaneous accessories · seals | |
| 3RK1911-3BA00 | Aksesuar | |
| 3RK1911-2BS60 | Aksesuar | |
| 3RK1911-2BS40 | Aksesuar | |
| 3RK1911-2BS20 | Aksesuar | |
| 3RK1911-2BM22 | Aksesuar | |
| 3RK1911-2BM21 | Aksesuar | |
| 3RK1911-2BG02 | Aksesuar · Miscellaneous accessories · connectors | |
| 3RK1911-2BF02 | Aksesuar · Miscellaneous accessories · connectors | |
| 3RK1911-2BF01 | Aksesuar · Miscellaneous accessories · connectors | |
| 3RK1911-2BE50 | Aksesuar | |
| 3RK1911-2BE30 | Aksesuar | |
| 3RK1911-2BE10 | Aksesuar | |
| 3RK1911-0EH31 | Aksesuar · Accessories | |
| 3RK1911-0EG31 | Aksesuar · Accessories | |
| 3RK1911-0EF31 | Aksesuar · Accessories | |
| 3RK1911-0EE31 | Aksesuar · Accessories | |
| 3RK1911-0ED31 | Aksesuar · Accessories | |
| 3RK1911-0EB31 | Aksesuar · Accessories | |
| 3RK1911-0DC33 | Aksesuar · Accessories | |
| 3RK1911-0DC13 | Aksesuar · Accessories | |
| 3RK1902-0CW00 | Aksesuar · Miscellaneous accessories · tools | |
| 3RK1902-0CK00 | Aksesuar | |
| 3RK1902-0CJ00 | Aksesuar | |
| 3RK1902-0CE00 | Aksesuar | |
| 3RK1902-0CC00 | Aksesuar | |
| 3RK1902-0AJ00 | Aksesuar · Miscellaneous accessories · tools | |
| 3RK1911-5BA30 | Aksesuar · Miscellaneous accessories · seals | |
| 3RK1911-5BA50 | Aksesuar · Miscellaneous accessories · seals |
