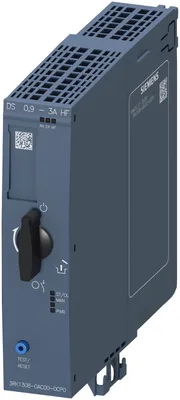

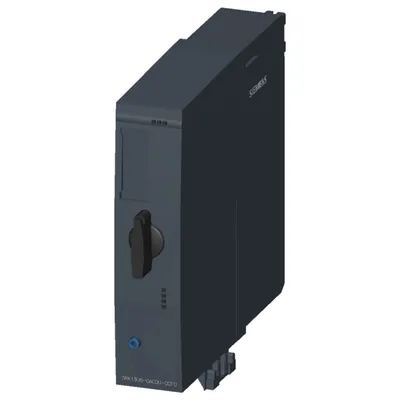

Siemens 3RK1308-0AC00-0CP0
Direct-on-line starter High Feature; elektronik anahtarlama; elektronik aşırı yük koruması en çok 1,1 kW / 400 V; Adjustment range 0,9.. 3 A; PROFIenergy; Option: 3DI/LC modül
product brand nameSIMATIC
product categoryMotor starter
product designationDirect-on-line starter
product type designationET 200SP
product functionDirect-on-line starter
on-site operationVar
Ürün Hakkında
Direct-on-line starter High Feature; elektronik anahtarlama; elektronik aşırı yük koruması en çok 1,1 kW / 400 V; Adjustment range 0,9.. 3 A; PROFIenergy; Option: 3DI/LC modül
Siemens 3RK1308-0AC00-0CP0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC
product categoryMotor starter
product designationDirect-on-line starter
product type designationET 200SP
General technical data
equipment version according to IEC 60947-4-23
product functionDirect-on-line starter
on-site operationVar
intrinsic device protectionVar
remote firmware updateVar
for power supply reverse polarity protectionVar
at AC in hot operating state per pole0,2 W
insulation voltage rated value500 V
degree of pollution2
overvoltage categoryIII
surge voltage resistance rated value6 kV
between main and auxiliary circuit500 V
consumed current maximum140 mA
shock resistance6 g / 11 ms
vibration resistance15 mm to 6 Hz; 2 g to 500 Hz
operating frequency maximum1 1/s
mechanical service life (operating cycles) of the main contacts typical30.000.000
type of coordination1
according to IEC 60947-4-2AC-53a: 3 A: (8-0,7: 70-32)
according to IEC 60947-4-3AC-51: 3 A: (1,2-10: 50-360)
reference code according to IEC 81346-2Q
Substance Prohibitance (day/month/year)04/15/2016
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
Net Weight0,412 kg
direct startVar
reverse startingYok
product component motor brake outputYok
product function short circuit protectionVar
design of short-circuit protectionfuse
at 400 V rated value55 kA
at 500 V rated value55 kA
at 500 V according to UL 60947 rated value100 kA
at 400 V rated value55 kA
at 500 V rated value55 kA
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1class A
EMC immunity according to IEC 60947-1Class A
due to burst according to IEC 61000-4-42 kV
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
due to high-frequency radiation according to IEC 61000-4-6Class A
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-28 kV air discharge
conducted HF interference emissions according to CISPR11Class A for industrial environment
field-bound HF interference emission according to CISPR11Class A for industrial environment
Safety related data
MTBF48 a
Electrical Safety
touch protection against electrical shockfinger-safe
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe
Main circuit
number of poles for main current circuit3
design of the switching contactHybrid
adjustable current response value current of the current-dependent overload release0,9... 3 A
minimum load [%]50 %; from smallest adjustable rated current
type of the motor protectionsolid-state
operating voltage rated value48... 500 V
relative symmetrical tolerance of the operating voltage10 %
operating frequency 1 rated value50 Hz
operating frequency 2 rated value60 Hz
relative symmetrical tolerance of the operating frequency5 %
relative positive tolerance of the operating frequency5 %
relative negative tolerance of the operating frequency5 %
operational current at AC at 400 V rated value3 A
ampacity when starting maximum30 A
operating power for 3-phase motors at 400 V at 50 Hz0,37... 1,1 kW
Inputs/ Outputs
number of digital inputs4
note4 via 3DI/LC module
of the inputs4 bayt
of the outputs2 bayt
Besleme gerilimi
type of voltage of the supply voltageDC
minimum permissible20,4 V
maximum permissible28,8 V
supply voltage at DC rated value24 V
in standby mode of operation50 mA
during operation50 mA
at switching on of motor140 mA
in switching state OFF with bypass circuit1,2 W
in switching state ON with bypass circuit3,4 W
inrush current peak at 24 V25 A; Observe the manual for group configuration
duration of inrush current peak at 24 V0,14 ms
Response times
ON-delay time20 ms
OFF-delay time35... 50 ms
Power Electronics
at 40 °C rated value3 A
at 50 °C rated value3 A
at 55 °C rated value3 A
at 60 °C rated value3 A

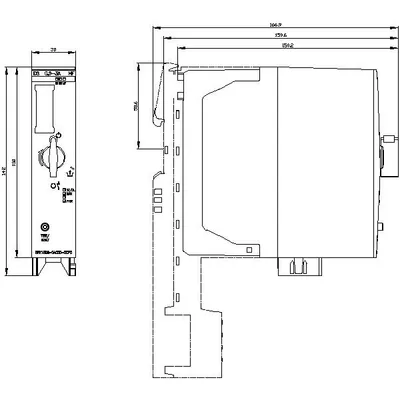

Installation/ mounting/ dimensions
mounting positionVertical, yatay (observe derating)
fastening methodpluggable in BaseUnit
height142 mm
width30 mm
depth150 mm
upwards50 mm
downwards50 mm
Ambient conditions
installation altitude at height above sea level maximum4.000 m
during operation-25... +60 °C; For derating see manual
during storage-40... +70 °C
during transport-40... +70 °C
environmental category during operation according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices)
relative humidity during operation10... 95 %
air pressure according to SN 31205900... 1.060 hPa
Communication/ Protocol
PROFIBUS DP protocolVar
PROFINET protocolVar
product function bus communicationVar
protocol is supported AS-Interface protocolYok
supports PROFIenergy measured valuesVar
supports PROFIenergy shutdownVar
type of electrical connection of the communication interfacePlug contact to Base Unit
Connections/ Terminals
1 for digital input signalsPluggable module - accessory
for main energy infeedPlug contact to Base Unit
for load-side outgoing feederPlug contact to Base Unit
for supply voltage line-sidePlug contact to Base Unit
wire length for motor unshielded maximum200 m
UL/CSA ratings
full-load current (FLA) for 3-phase AC motor at 480 V rated value3 A
current with locked rotor (LRA) for 3-phase AC motor at 480 V rated value24 A
— at 110/120 V rated value0,1 hp
— at 230 V rated value0,25 hp
— at 200/208 V rated value0,5 hp
— at 220/230 V rated value0,5 hp
— at 460/480 V rated value1,5 hp
operating voltage at AC at 60 Hz according to CSA and UL rated value480 V
Aksesuarlar 9
Siemens 3RK1308-0AC00-0CP0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RK1908-1AA00-0BP0 | Aksesuar · Accessories | |
| 3RW4928-8VB00 | Aksesuar · Fan | |
| 6ES7133-6CV15-1AM0 | Seçmeli zorunlu ürün · Cover | |
| 6ES7155-6AU00-0CN0 | Seçmeli zorunlu ürün · Interface module | |
| 6ES7510-1DJ01-0AB0 | Seçmeli zorunlu ürün · Central Processing Unit | |
| 3RK1908-0AP00-0AP0 | Seçmeli zorunlu ürün · Accessories | |
| 3RK1908-0AP00-0BP0 | Seçmeli zorunlu ürün · Accessories | |
| 3RK1908-0AP00-0CP0 | Seçmeli zorunlu ürün · Accessories | |
| 3RK1908-0AP00-0DP0 | Seçmeli zorunlu ürün · Accessories |
