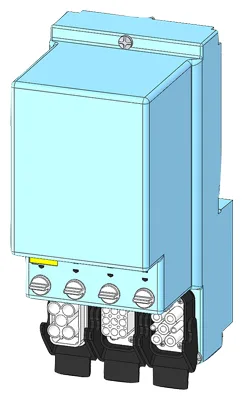

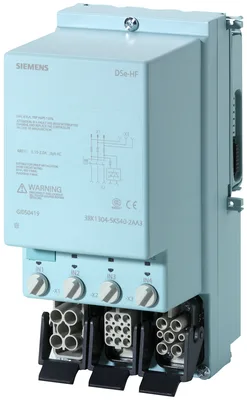

Siemens 3RK1304-5KS40-2AA0
ET 200pro DSE HF DOL starter High Feature Mechanical anahtarlama elektronik aşırı yük koruması AC-3, 0,9 kW / 400 V 0,15 A...2.00 A olmadan fren kontak 4 DI Han Q4/2 - Han Q8/0
product brand nameSIMATIC
product designationMotor starters
design of the productdirect starter
product type designationET 200pro
product function on-site operationVar
insulation voltage rated value400 V
Ürün Hakkında
ET 200pro DSE HF DOL starter High Feature Mechanical anahtarlama elektronik aşırı yük koruması AC-3, 0,9 kW / 400 V 0,15 A...2.00 A olmadan fren kontak 4 DI Han Q4/2 - Han Q8/0
Siemens 3RK1304-5KS40-2AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC
product designationMotor starters
design of the productdirect starter
product type designationET 200pro
General technical data
product function on-site operationVar
insulation voltage rated value400 V
degree of pollution3
surge voltage resistance rated value6 kV
maximum permissible voltage for protective separation between main and auxiliary circuit400 V
degree of protection NEMA ratingType 2, 13
shock resistance15 g / 11 ms
vibration resistance2 g
operating frequency maximum750 1/h
mechanical service life (operating cycles) of the main contacts typical30.000.000
type of coordination1
reference code according to IEC 81346-2Q
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
Net Weight1,497 kg
direct startVar
reverse startingYok
product component motor brake outputYok
brake control with 230 V ACYok
brake control with 400 V ACYok
brake control with 24 V DCYok
brake control with 180 V DCYok
brake control with 500 V DCYok
product function short circuit protectionVar
design of short-circuit protectionfuse
at 400 V rated value100.000 A
Safety related data
with low demand rate according to SN 3192050 %
with high demand rate according to SN 3192075 %
B10 value with high demand rate according to SN 319201.000.000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
MTTFd205 a
IEC 61508
T1 value for proof test interval or service life according to IEC 6150820 a
Electrical Safety
touch protection against electrical shockfinger-safe
Main circuit
number of poles for main current circuit3
design of the switching contactelectromechanical
adjustable current response value current of the current-dependent overload release0,15... 2 A
type of the motor protectionsolid-state
type of voltageAC
operating voltage rated value200... 400 V
operating frequency 1 rated value50 Hz
operating frequency 2 rated value60 Hz
relative positive tolerance of the operating frequency10 %
relative negative tolerance of the operating frequency15 %
operating range relative to the operating voltage at AC at 50 Hz200... 440 V
at AC at 400 V rated value2 A
at AC-3 at 400 V rated value2 A
at AC-3e at 400 V rated value2 A
at AC-3 at 400 V rated value900 W
at AC-3e at 400 V rated value900 W
operating power for 3-phase motors at 400 V at 50 Hz70... 900 W
Inputs/ Outputs
digital inputs parameterizableVar
digital outputs parameterizableYok
number of digital inputs4
for digital output signals0
for digital input signals4
Besleme gerilimi
type of voltage of the supply voltageDC
supply voltage 1 at DC24 V
minimum permissible20,4 V
maximum permissible28,8 V
Control circuit/ Control
type of voltage of the control supply voltageDC
control supply voltage at DC rated value20,4... 28,8 V
control supply voltage 1 at DC rated value20,4... 28,8 V
control supply voltage 1 at DC24 V
in standby mode of operation60 mA
when switching on250 mA
during operation250 mA
— with bypass circuit1,6416 W
— without bypass circuit1,6416 W
— with bypass circuit3,888 W
— without bypass circuit3,888 W

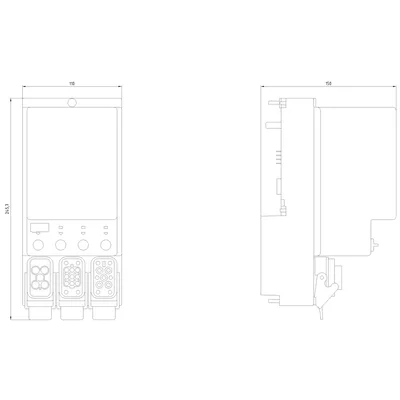

Installation/ mounting/ dimensions
mounting positiondikey, yatay
fastening methodscrew fixing
height230 mm
width110 mm
depth150 mm
Ambient conditions
installation altitude at height above sea level maximum3.500 m
during operation-25... +55 °C
during storage-40... +70 °C
during transport-40... +70 °C
relative humidity during operation5... 95 %
Communication/ Protocol
PROFIBUS DP protocolVar
PROFINET protocolVar
PROFINET IO protocolVar
PROFIsafe protocolYok
design of the interface PROFINET protocolVar
product function bus communicationVar
protocol is supported AS-Interface protocolYok
supports PROFIenergy measured valuesVar
supports PROFIenergy shutdownVar
of the inputs2 bayt
of the outputs2 bayt
type of electrical connection of the communication interfacevia backplane bus
Connections/ Terminals
for main current circuittab terminals
1 for digital input signalsM12 socket
2 for digital input signalsM12 socket
3 for digital input signalsM12 socket
4 for digital input signalsM12 socket
at the manufacturer-specific device interfaceoptical interface
for main energy infeedsocket according to ISO23570
for load-side outgoing feedersocket according to ISO23570
for main energy transmissionsocket according to ISO23570
for supply voltage line-sidevia backplane bus
for supply voltage transmissionvia backplane bus
UL/CSA ratings
full-load current (FLA) for 3-phase AC motor at 480 V rated value2 A
— at 460/480 V rated value0,75 hp
— at 575/600 V rated value1 hp
operating voltage at AC at 60 Hz according to CSA and UL rated value600 V
Aksesuarlar 27
Siemens 3RK1304-5KS40-2AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RK1901-1KA00 | Aksesuar | |
| 3RK1902-4BA00-5AA0 | Aksesuar | |
| 3RK1902-4PB15-3AA0 | Aksesuar | |
| 3RK1911-2BE50 | Aksesuar | |
| 3RK1911-2BE10 | Aksesuar | |
| 3RK1911-2BE30 | Aksesuar | |
| 3RK1922-2BQ00 | Aksesuar | |
| 3RK1911-2BF50 | Aksesuar | |
| 3RK1911-2BF10 | Aksesuar | |
| 3RK1902-0CJ00 | Aksesuar | |
| 3RK1902-0CK00 | Aksesuar | |
| 3RK1911-0DB13 | Aksesuar · Accessories | |
| 3RK1911-0DB33 | Aksesuar · Accessories | |
| 3RK1911-0DC13 | Aksesuar · Accessories | |
| 3RK1911-0DC33 | Aksesuar · Accessories | |
| 3RK1902-0CE00 | Aksesuar | |
| 3RK1902-0CC00 | Aksesuar | |
| 3RK1911-0EB31 | Aksesuar · Accessories | |
| 3RK1911-0ED31 | Aksesuar · Accessories | |
| 3RK1922-2BP00 | Aksesuar | |
| 6SL3555-0PA00-2AA0 | Aksesuar | |
| 3RK1911-2BM21 | Aksesuar | |
| 3RK1911-2BM22 | Aksesuar | |
| 3RK1911-2BL21 | Aksesuar | |
| 3RK1911-2BL22 | Aksesuar | |
| 3RT2900-1SB20 | Yedek parça · Miscellaneous accessories · labeling plates | |
| 6ES7194-4HA00-0AA0 | Yedek parça · label |
