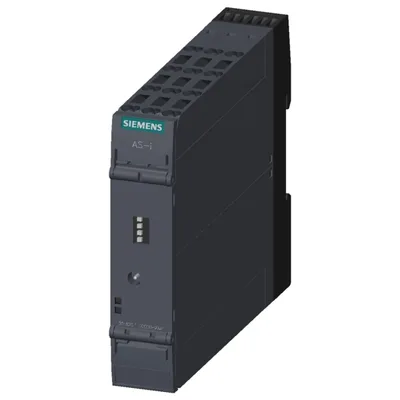

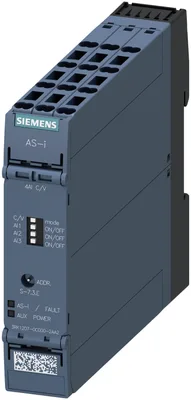

Siemens 3RK1207-0CG00-2AA2
UL/CSA CERTIFICATION IN PREPARATION SC22.5, IP20, analog, 4AI-C/V spring-type terminals 4 x analog giriş giriş switchable C/V Overall genişlik 22,5 mm
design of the productAS-i SC22.5, 4AI PT100
product type designation3RK1
design of the device typestandard slave
AS-Interface device profileS-7.3.E
ID1 codeF; Factory setting, changeable
at 30 V maximum200 mA
Ürün Hakkında
UL/CSA CERTIFICATION IN PREPARATION SC22.5, IP20, analog, 4AI-C/V spring-type terminals 4 x analog giriş giriş switchable C/V Overall genişlik 22,5 mm
Siemens 3RK1207-0CG00-2AA2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product designationSlimline Compact I/O module for use in the control cabinet
design of the productAS-i SC22.5, 4AI PT100
product type designation3RK1
design of the device typestandard slave
AS-Interface device profileS-7.3.E
ID1 codeF; Factory setting, changeable
operating voltage according to AS-Interface specification18... 31,6 V
product function suitable for AS-i Power24VVar
at 30 V maximum200 mA
at 24 V with AS-i Power24V maximum250 mA
type of address setting of the AS-i devicesvia front addressing socket
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1 Diboron trioxide CAS-Yok. 1303-86-2
Net Weight0,183 kg
according to EN 61346-2K
according to DIN 40719 extended according to IEC 204-2 according to IEC 750A
shock resistance15 g / 11 ms (modules) veya 10 g / 11 ms (modules with device connector)
other informationAn auxiliary external feed (AUX POWER) of between 20 ve 30 V DC is necessary for supplying the output circuits. The auxiliary feed must comply with IEC 60990 (PELV), protection class III.
Digital Inputs
number of digital inputs0
number of digital inputs safety-related0
type of connection technology2- ve 4-wire technology
Sensor supply
type of voltage supply for sensor supplyAS interface, alternatively U_AUX
ampacity of the sensor supply for all inputs at ambient temperature 40 °C500 mA
note46 mA with supply via AS interface / 500 mA with supply via Uaux
property of the sensor supply short-circuit and overload resistantVar
Digital Outputs
number of digital outputs0
Analog girişler
number of analog inputs4
signal range at the analog input4... 20 mA; +/- 20 mA; 1... 5 V; +/- 10 V
consumed current from external auxiliary voltage maximum500 mA
design of the sensor at the analog input is supported resistor temperature sensorYok
product function input variable parameterizableVar
A/D resolution for analog inputs/outputs16 bit
product function smoothing parameterizableVar
set values of the interference frequency for interference voltage suppression50 / 60 Hz
Analog çıkışlar
number of analog outputs0
Errors/ accuracies
relative symmetrical operational limit relating to input range/output range1 %; full sclae
relative symmetrical basic error limit relating to input range/output range at 25 °C0,7 %
symmetrical temperature error per K relating to input range/output range0,01 %/K
relative symmetrical linearity error relating to input range/output range0,05 %
relative symmetrical repeat accuracy relating to input range/output range in settled state 25 °C0,1 %
Device connector
for AS-Interface2 A
for external auxiliary voltage4 A

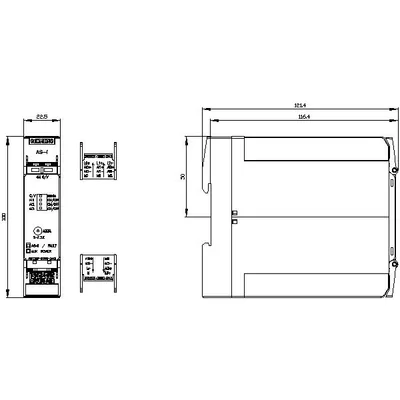

Installation/ mounting/ dimensions
fastening methodscrew ve snap-on mounting
height100 mm
width22,5 mm
depth120 mm
Ambient conditions
during operation-25... +70 °C
during storage-40... +85 °C
Connections/ Terminals
type of electrical connection of the inputs and outputsspring-loaded terminal (push-in)
solid1x (0,5... 1,5 mm²), 2x (0,5... 1,5 mm²)
finely stranded with core end processing1x (0,25... 1,0 mm²), 2x (0,25... 1,0 mm²)
finely stranded without core end processing1x (0,5... 1,5 mm²), 2x (0,5... 1,5 mm²)
for AWG cables solid1x (20... 16), 2x (20... 16)
for AWG cables stranded1x (20... 16), 2x (20... 16)
