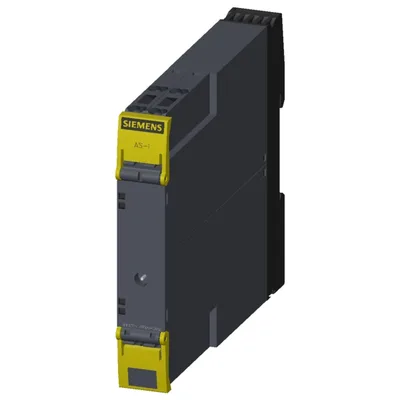

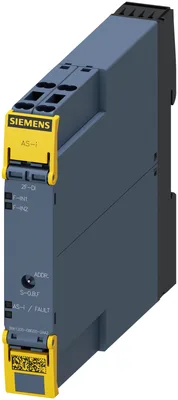

Siemens 3RK1205-0BG00-2AA2
ASIsafe SlimLine Compact modül SC17.5F dijital safety 2 F-DI, IP20 2 x giriş için mechanical sensors spring-type terminals Overall genişlik 17,5 mm
design of the productAS-i SC17.5F, 2F-DI
product type designation3RK1
design of the device typestandard slave
AS-Interface device profileS-0.B.F
ID1 codeF; Factory setting, changeable
at 30 V maximum50 mA
Ürün Hakkında
ASIsafe SlimLine Compact modül SC17.5F dijital safety 2 F-DI, IP20 2 x giriş için mechanical sensors spring-type terminals Overall genişlik 17,5 mm
Siemens 3RK1205-0BG00-2AA2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product designationSlimline Compact I/O module for use in the control cabinet
design of the productAS-i SC17.5F, 2F-DI
product type designation3RK1
design of the device typestandard slave
AS-Interface device profileS-0.B.F
ID1 codeF; Factory setting, changeable
operating voltage according to AS-Interface specification18... 31,6 V
product function suitable for AS-i Power24VVar
at 30 V maximum50 mA
at 24 V with AS-i Power24V maximum50 mA
type of address setting of the AS-i devicesvia front addressing socket
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
Net Weight0,111 kg
according to EN 61346-2K
according to DIN 40719 extended according to IEC 204-2 according to IEC 750A
shock resistance15 g / 11 ms (modules) veya 10 g / 11 ms (modules with device connector)
Digital Inputs
number of digital inputs0
number of digital inputs safety-related2
type of input characteristicmechanical contacts
Digital Outputs
number of digital outputs0
Analog girişler
number of analog inputs0
Analog çıkışlar
number of analog outputs0
IEC 62061
PFHD with high demand rate according to IEC 620614.5E-9 1/h
ISO 13849
performance level (PL) according to EN ISO 13849-1e
category according to EN ISO 13849-1up to Category 4
IEC 61508
Safety Integrity Level (SIL) according to IEC 615083
PFDavg with low demand rate according to IEC 615085E-6
Safe failure fraction (SFF)99 %
T1 value for proof test interval or service life according to IEC 6150820 a
Device connector
for AS-Interface2 A

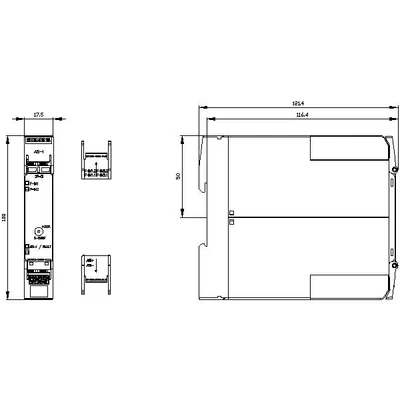

Installation/ mounting/ dimensions
fastening methodscrew ve snap-on mounting
height100 mm
width17,5 mm
depth120 mm
Ambient conditions
during operation-25... +70 °C
during storage-40... +85 °C
Connections/ Terminals
type of electrical connection of the inputs and outputsspring-loaded terminal (push-in)
solid1x (0,5... 1,5 mm²), 2x (0,5... 1,5 mm²)
finely stranded with core end processing1x (0,25... 1,0 mm²), 2x (0,25... 1,0 mm²)
finely stranded without core end processing1x (0,5... 1,5 mm²), 2x (0,5... 1,5 mm²)
for AWG cables solid1x (20... 16), 2x (20... 16)
for AWG cables stranded1x (20... 16), 2x (20... 16)
Aksesuarlar 18
Siemens 3RK1205-0BG00-2AA2 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RK1901-1YA00 | Aksesuar · Device connector | |
| 3ZY1141-2BA00 | Aksesuar · Removable terminals | |
| 3ZY1141-1BA00 | Aksesuar · Removable terminals | |
| 3ZY1121-2BA00 | Aksesuar · Removable terminals | |
| 3ZY1121-1BA00 | Aksesuar · Removable terminals | |
| 3ZY1131-2BA00 | Aksesuar · Removable terminals | |
| 3ZY1122-2BA00 | Aksesuar · Removable terminals | |
| 3ZY1440-1AA00 | Aksesuar · Further accessories | |
| 3ZY1131-1BA00 | Aksesuar · Removable terminals | |
| 3RA2908-1A | Aksesuar · Miscellaneous accessories · screwdrivers | |
| 3ZY1311-0AA00 | Aksesuar · Further accessories | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RT2900-1SB10 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RK1901-1YA11 | Aksesuar · Device termination connector | |
| 3RK1901-1YA10 | Aksesuar · Device connector | |
| 3RK1901-1YA01 | Aksesuar · Device termination connector | |
| 3ZY1122-1BA00 | Aksesuar · Removable terminals | |
| 3ZY1450-1BA00 | Bileşen · Further accessories |
