Siemens 3RH2362-2BC40 için nasıl fiyat teklifi alabilirim?

Siemens 3RH2362-2BC40 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B0394812 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RH2362-2BC40 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RH2362-2BC40 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RH2362-2BC40 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 3RH2362-2BC40

kontaktör röle, 6 NO + 2 NC, 30 V DC, yaylı klemens, gövde boyu S00, removable yardımcı anahtar

SiemensMFR # 3RH2362-2BC40SKU # CEY-8EF3B0394812

product brand nameSIRIUS

product designationAuxiliary contactor

product type designation3RH2

size of contactorS00

product extension auxiliary switchYok

degree of pollution3

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

kontaktör röle, 6 NO + 2 NC, 30 V DC, yaylı klemens, gövde boyu S00, removable yardımcı anahtar

Siemens 3RH2362-2BC40

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationAuxiliary contactor

product type designation3RH2

General technical data

size of contactorS00

product extension auxiliary switchYok

power loss [W] for rated value of the current without load current share typical4 W

insulation voltage with degree of pollution 3 at AC rated value690 V

degree of pollution3

surge voltage resistance rated value6 kV

at AC7,3 g / 5 ms, 4,7 g / 10 ms

at DC10 g / 5 ms, 5 g / 10 ms

at AC11,4 g / 5 ms, 7,3 g / 10 ms

at DC15 g / 5 ms, 8 g / 10 ms

of contactor typical10.000.000

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)10/01/2009

Net Weight0,35 kg

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-55... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

at AC10.000 1/h

at DC10.000 1/h

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage at DC rated value30 V

initial value0,8

full-scale value1,1

closing power of magnet coil at DC4 W

holding power of magnet coil at DC4 W

at DC30... 100 ms

at DC7... 13 ms

arcing time10... 15 ms

Auxiliary circuit

number of NC contacts for auxiliary contacts2

instantaneous contact2

number of NO contacts for auxiliary contacts6

instantaneous contact6

identification number and letter for switching elements62 E

operational current at AC-12 maximum10 A

at 230 V rated value6 A

at 400 V rated value3 A

at 500 V rated value2 A

at 690 V rated value1 A

at 24 V rated value10 A

at 60 V rated value6 A

at 110 V rated value3 A

at 220 V rated value1 A

at 440 V rated value0,3 A

at 600 V rated value0,15 A

at 24 V rated value10 A

at 60 V rated value10 A

at 110 V rated value4 A

at 220 V rated value2 A

at 440 V rated value1,3 A

at 600 V rated value0,65 A

at 24 V rated value10 A

at 60 V rated value10 A

at 110 V rated value10 A

at 220 V rated value3,6 A

at 440 V rated value2,5 A

at 600 V rated value1,8 A

operating frequency at DC-12 maximum1.000 1/h

at 24 V rated value6 A

at 60 V rated value2 A

at 110 V rated value1 A

at 220 V rated value0,3 A

at 440 V rated value0,14 A

at 600 V rated value0,1 A

at 24 V rated value10 A

at 60 V rated value3,5 A

at 110 V rated value1,3 A

at 220 V rated value0,9 A

at 440 V rated value0,2 A

at 600 V rated value0,1 A

at 24 V rated value10 A

at 60 V rated value4,7 A

at 110 V rated value3 A

at 220 V rated value1,2 A

at 440 V rated value0,5 A

at 600 V rated value0,26 A

operating frequency at DC-13 maximum1.000 1/h

contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)

UL/CSA ratings

contact rating of auxiliary contacts according to ULA600 / Q600

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0,4 kA

design of the fuse link for short-circuit protection of the auxiliary switch requiredgG: 10 A (690 V, 1 kA)

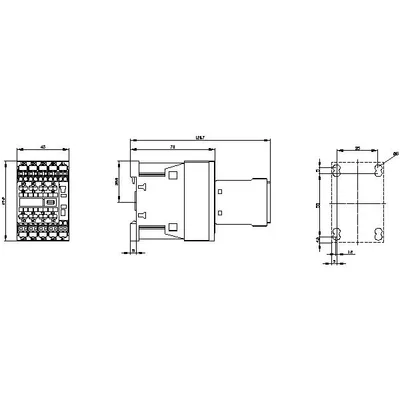

Installation/ mounting/ dimensions

mounting position+/-180° rotation possible on dikey mounting surface; can be tilted forward ve backward by +/- 22,5° on dikey mounting surface

fastening methodscrew ve snap-on mounting onto 35 mm DIN rail

height70 mm

width45 mm

depth121 mm

— forwards10 mm

— upwards10 mm

— downwards10 mm

— at the side0 mm

— forwards10 mm

— upwards10 mm

— at the side6 mm

— downwards10 mm

— forwards10 mm

— upwards10 mm

— downwards10 mm

— at the side6 mm

Connections/ Terminals

type of electrical connection for auxiliary and control circuitspring-loaded terminals

— solid or stranded2x (0,5... 4 mm²)

— finely stranded with core end processing2x (0,5... 2,5 mm²)

— finely stranded without core end processing2x (0,5... 2,5 mm²)

for AWG cables for auxiliary contacts2x (20... 12)

Safety related data

positively driven operation according to IEC 60947-5-1Var

suitable for safety functionVar

suitability for use safety-related switching OFFVar

service life maximum20 a

with low demand rate according to SN 3192040 %

with high demand rate according to SN 3192073 %

B10 value with high demand rate according to SN 319201.000.000; With 0,3 x Ie

failure rate [FIT] with low demand rate according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

overdimensioning according to ISO 13849-2 necessaryVar

IEC 61508

safety device type according to IEC 61508-2Type A

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing1,57 kg

global warming potential [CO2 eq] / during operation132 kg

global warming potential [CO2 eq] / after end of life-0.2 kg

global warming potential [CO2 eq] / total133 kg

Aksesuarlar 6

Siemens 3RH2362-2BC40 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RT2916-1BB00	Aksesuar · Surge suppressor · varistors
3RT2916-1DG00	Aksesuar · Surge suppressor · interference suppression diodes
3RT2916-1EH00	Aksesuar · Surge suppressor · diode assemblies
3RT2916-1CB00	Aksesuar · Surge suppressor · RC elements
3RT2916-1JK00	Aksesuar · Surge suppressor · varistors
3RT2916-1LM00	Aksesuar · Surge suppressor · interference suppression diodes
