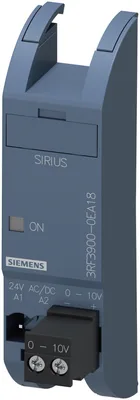

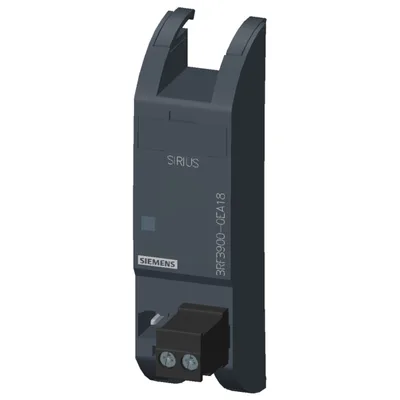

Siemens 3RF3900-0EA18
konvertör kontrol gerilim 24 V AC/DC için semiconductor röle/kontaktör
product brand nameSIRIUS
product designationconverter
product type designation3RF39
degree of pollution3
protection class IPIP20
reference code according to IEC 81346-2T
Ürün Hakkında
konvertör kontrol gerilim 24 V AC/DC için semiconductor röle/kontaktör
Siemens 3RF3900-0EA18
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationconverter
product type designation3RF39
General technical data
product functionfor 3RF31, 3RF32, 3RF33, ve 3RF34..-.A semiconductor relays / contactors
type of calculation of power loss current-dependentlinear
degree of pollution3
protection class IPIP20
protection class IP on the front according to IEC 60529IP20
shock resistance according to IEC 60068-2-2715 g / 11 ms
vibration resistance according to IEC 60068-2-62 g
reference code according to IEC 81346-2T
Substance Prohibitance (day/month/year)03/07/2024
SVHC substance nameLead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight0,027 kg
Main circuit
number of NO contacts for main contacts0
number of NC contacts for main contacts0
type of voltage of the operating voltageAC
relative symmetrical tolerance of the operating frequency10 %
Control circuit/ Control
type of voltageAC/DC
at 50 Hz rated value20,5... 26,5 V
at 60 Hz rated value20,5... 26,5 V
control supply voltage at DC rated value18... 30 V
supply voltage frequency for auxiliary and control circuit rated value50... 60 Hz
symmetrical line frequency tolerance5 Hz
control current at AC rated value25 mA
control current at DC rated value25 mA
Auxiliary circuit
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts0

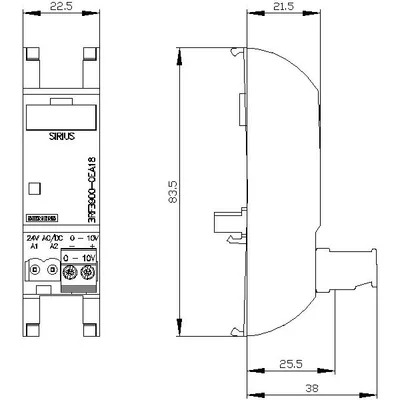

Installation/ mounting/ dimensions
fastening method side-by-side mountingVar
fastening methodclip-on
height83,5 mm
width22,5 mm
depth38 mm
Connections/ Terminals
type of electrical connection for auxiliary and control circuitscrew-type terminals
— solid1x (0,5... 2,5 mm²), 2x (0,5... 1 mm²)
— finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1 mm²)
— finely stranded without core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1 mm²)
for AWG cables for auxiliary and control contacts1x (20... 12)
tightening torque for auxiliary and control contacts with screw-type terminals0,5... 0,6 N·m
tightening torque [lbf·in] for auxiliary and control contacts with screw-type terminals4,5... 5,3 lbf·in
design of the thread of the connection screw of the auxiliary and control contactsM3
stripped length of the cable for auxiliary and control contacts7 mm
Electrical Safety
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
Ambient conditions
installation altitude at height above sea level maximum1.000 m
during operation-25... +60 °C
during storage-55... +80 °C
Electromagnetic compatibility
due to burst according to IEC 61000-4-42 kV / 5 kHz, behavior criterion 2
due to conductor-earth surge according to IEC 61000-4-52 kV, behavior criterion 2
due to conductor-conductor surge according to IEC 61000-4-51 kV, behavior criterion 2
due to high-frequency radiation according to IEC 61000-4-6140 dBuV in the frequency range 0,15... 80 MHz, behavior criterion 1
electrostatic discharge according to IEC 61000-4-24 kV contact discharging / 8 kV air discharging, behavior criterion 2
conducted HF interference emissions according to CISPR11Class A for industrial environment
field-bound HF interference emission according to CISPR11Class B for the domestic, business ve commercial environments
