Siemens 3RF3405-1BB04 için nasıl fiyat teklifi alabilirim?

Siemens 3RF3405-1BB04 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B02FD61D ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RF3405-1BB04 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RF3405-1BB04 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RF3405-1BB04 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

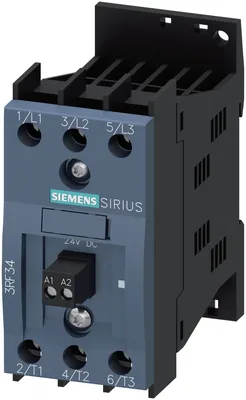

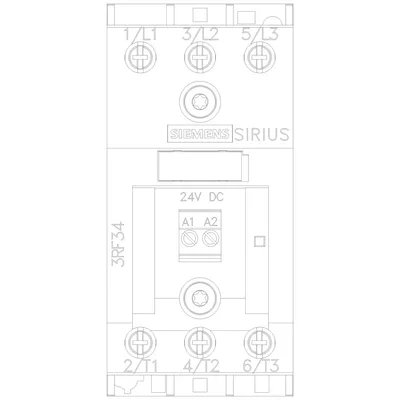

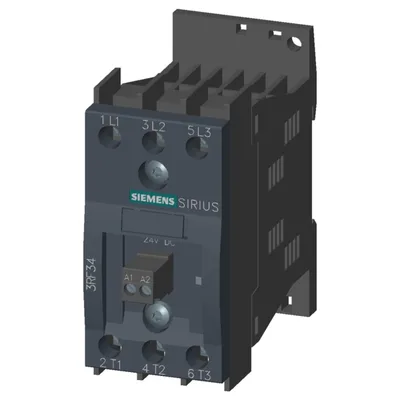

Siemens 3RF3405-1BB04

Solid-state contactor 3-phase 3RF3 AC 53 / 5.2 A / 40 °C 48-480 V / 24 V DC 2-phase controlled Instantaneous switching screw terminal

SiemensMFR # 3RF3405-1BB04SKU # CEY-8EF3B02FD61D

product brand nameSIRIUS

product designationsolid-state contactor

design of the product2-pole controlled

product type designation3RF34

certificate of suitabilityCE / UL / CSA / CCC / C-Tick (RCM)

product functioninstantaneous switching

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Solid-state contactor 3-phase 3RF3 AC 53 / 5.2 A / 40 °C 48-480 V / 24 V DC 2-phase controlled Instantaneous switching screw terminal

Siemens 3RF3405-1BB04

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationsolid-state contactor

design of the product2-pole controlled

product type designation3RF34

_1 of the accessories that can be ordered3RA2921-1BA00

_2 of the accessories that can be ordered3RF3900-0QA88

_1 of the accessories that can be orderedLink module

_2 of the accessories that can be orderedConnection adapter

General technical data

certificate of suitabilityCE / UL / CSA / CCC / C-Tick (RCM)

product functioninstantaneous switching

at AC in hot operating state10 W

at AC in hot operating state per pole3,33 W

without load current share typical0,4 W

type of calculation of power loss current-dependentlinear

insulation voltage rated value600 V

degree of pollution3

surge voltage resistance of main circuit rated value6 kV

protection class IPIP20

protection class IP on the front according to IEC 60529IP20

shock resistance according to IEC 60068-2-2715 g / 11 ms

vibration resistance according to IEC 60068-2-62 g

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)05/28/2009

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1

Net Weight0,265 kg

Main circuit

number of poles for main current circuit3

number of NO contacts for main contacts2

number of NC contacts for main contacts0

type of voltage of the operating voltageAC

— at 50 Hz rated value48... 480 V

— at 60 Hz rated value48... 480 V

operating frequency rated value50... 60 Hz

relative symmetrical tolerance of the operating frequency10 %

at 50 Hz40... 506 V

at 60 Hz40... 506 V

at AC-3 at 400 V rated value5,2 A

at AC-53a at 400 V at ambient temperature 40 °C rated value5,2 A

operational current minimum100 mA

at AC-3 at 400 V rated value2,2 kW

rate of voltage rise at the thyristor for main contacts maximum permissible1.000 V/µs

blocking voltage at the thyristor for main contacts maximum permissible1.200 V

reverse current of the thyristor10 mA

derating temperature40 °C

surge current resistance rated value200 A

I2t value maximum200 A²·s

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage at DC rated value24 V

initial value for signal <1> detection15 V

full-scale value for signal<0> recognition5 V

symmetrical line frequency tolerance5 Hz

initial value0,63

full-scale value1,25

at DC2 mA

control current at DC rated value15 mA

ON-delay time1 ms

OFF-delay time1 ms; additionally maks. one half-wave

Installation/ mounting/ dimensions

mounting positiondikey

fastening method side-by-side mountingVar

fastening methodscrew ve snap-on mounting onto 35 mm DIN rail

design of the thread of the screw for securing the equipmentM4

height95 mm

width45 mm

depth100,8 mm

upwards70 mm

downwards50 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitVar

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

— solid2x (1,5... 2,5 mm²), 2x (2,5... 6 mm²)

— finely stranded with core end processing2x (1... 2,5 mm²), 2x (2,5... 6 mm²), 1x 10 mm²

for AWG cables for main contacts2x (14... 10)

solid or stranded1,5... 6 mm²

finely stranded with core end processing1... 10 mm²

— solid1x (0,5... 2,5 mm²), 2x (0,5... 1 mm²)

— finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1 mm²)

— finely stranded without core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1 mm²)

for AWG cables for auxiliary and control contacts1x (20... 12)

AWG number as coded connectable conductor cross section for main contacts14... 10

for main contacts with screw-type terminals2... 2,5 N·m

for auxiliary and control contacts with screw-type terminals0,5... 0,6 N·m

for main contacts with screw-type terminals18... 22 lbf·in

for auxiliary and control contacts with screw-type terminals7,5... 5,3 lbf·in

for main contactsM4

of the auxiliary and control contactsM3

for main contacts10 mm

for auxiliary and control contacts7 mm

UL/CSA ratings

at 480 V rated value3,4 A

at 200/208 V rated value0,5 hp

at 220/230 V rated value0,75 hp

at 460/480 V rated value2 hp

Safety related data

proportion of dangerous failures with high demand rate according to SN 3192050 %

MTTF with high demand rate76 a

IEC 61508

T1 value for proof test interval or service life according to IEC 6150820 a

Electrical Safety

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front

Ambient conditions

installation altitude at height above sea level maximum1.000 m

during operation-25... +60 °C

during storage-55... +80 °C

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV / 5 kHz, behavior criterion 2

due to conductor-earth surge according to IEC 61000-4-52 kV, behavior criterion 2

due to conductor-conductor surge according to IEC 61000-4-51 kV, behavior criterion 2

due to high-frequency radiation according to IEC 61000-4-6140 dBuV in the frequency range 0,15... 80 MHz, behavior criterion 1

electrostatic discharge according to IEC 61000-4-24 kV contact discharging / 8 kV air discharging, behavior criterion 2

conducted HF interference emissions according to CISPR11Class A for industrial environment

field-bound HF interference emission according to CISPR11Class A for industrial environment

Short-circuit protection, design of the fuse link

of full range R fuse link for semiconductor protection at NH design usable3NE1813-0

of full range R fuse link for semiconductor protection at cylindrical design usable5SE1320

of back-up R fuse link for semiconductor protection at NH design usable3NE8015-1

of back-up R fuse link for semiconductor protection at cylindrical design 10 x 38 mm usable3NC1020

of back-up R fuse link for semiconductor protection at cylindrical design 14 x 51 mm usable3NC1415

of back-up R fuse link for semiconductor protection at cylindrical design 22 x 58 mm usable3NC2220

at NH design usable3NA3801-6

at cylindrical design 10 x 38 mm usable3NW6001-1

at cylindrical design 14 x 51 mm usable3NW6101-1

Aksesuarlar 17

Siemens 3RF3405-1BB04 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RA2921-1BA00	Aksesuar · Wiring modules, connectors and kits · link modules
3RF3900-1TA88	Aksesuar
3RF3900-2TB88	Aksesuar
3RT2900-1SB60	Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB10	Aksesuar · Miscellaneous accessories · labeling plates
3RF3900-0QA88	Aksesuar
8WH6000-0CF07	Aksesuar
3NW6001-1	Seçmeli zorunlu ürün
3NE8015-1	Seçmeli zorunlu ürün
3NC2220	Seçmeli zorunlu ürün
3NC1415	Seçmeli zorunlu ürün
3NC1020	Seçmeli zorunlu ürün
3NA3801-6	Seçmeli zorunlu ürün
3NW6101-1	Seçmeli zorunlu ürün
3NE1813-0	Seçmeli zorunlu ürün
5SE1320	Seçmeli zorunlu ürün
