Siemens 3RF3350-1AA22 için nasıl fiyat teklifi alabilirim?

Siemens 3RF3350-1AA22 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu YLSZ7FZEDGWO3TN ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RF3350-1AA22 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RF3350-1AA22 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RF3350-1AA22 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

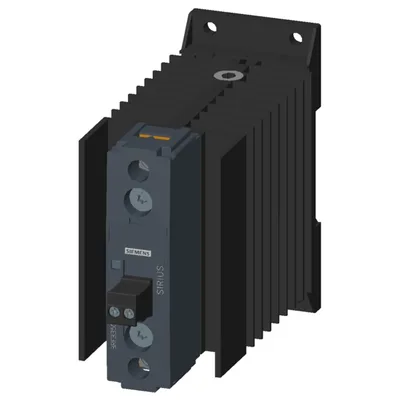

Siemens 3RF3350-1AA22

solid-state kontaktör 1-pole 3RF33 AC-1 50 A 40 °C / 24-230 V / 110-230 V AC / vidalı klemens

SiemensMFR # 3RF3350-1AA22SKU # YLSZ7FZEDGWO3TN

product brand nameSIRIUS

product designationsolid-state contactor

product type designation3RF33

product functionzero-point switching

power loss [V∙A] maximum47 V·A

at AC in hot operating state47 W

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

solid-state kontaktör 1-pole 3RF33 AC-1 50 A 40 °C / 24-230 V / 110-230 V AC / vidalı klemens

Siemens 3RF3350-1AA22

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationsolid-state contactor

product type designation3RF33

_1 of the accessories that can be ordered3RF2900-3PA88

_1 of the accessories that can be orderedterminal cover

General technical data

product functionzero-point switching

power loss [V∙A] maximum47 V·A

at AC in hot operating state47 W

at AC in hot operating state per pole47 W

without load current share typical3,5 W

type of calculation of power loss current-dependentlinear

insulation voltage rated value600 V

degree of pollution3

surge voltage resistance of main circuit rated value6 kV

protection class IPIP20

protection class IP on the front according to IEC 60529IP20

shock resistance according to IEC 60068-2-2715 g / 11 ms

vibration resistance according to IEC 60068-2-62 g

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)01/15/2024

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1

Net Weight0,299 kg

Main circuit

number of poles for main current circuit1

number of NO contacts for main contacts1

number of NC contacts for main contacts0

type of voltage of the operating voltageAC

— at 50 Hz rated value24... 230 V

— at 60 Hz rated value24... 230 V

operating frequency rated value50... 60 Hz

relative symmetrical tolerance of the operating frequency10 %

at 50 Hz20... 253 V

at 60 Hz20... 253 V

operational current rated value maximum50 A

at AC-1 at 400 V rated value50 A

at AC-51 rated value50 A

at AC-51 according to IEC 60947-4-350 A

according to UL 508 rated value43 A

ampacity maximum50 A

operational current minimum500 mA

rate of voltage rise at the thyristor for main contacts maximum permissible1.000 V/µs

blocking voltage at the thyristor for main contacts maximum permissible800 V

reverse current of the thyristor10 mA

derating temperature40 °C

surge current resistance rated value1.300 A

I2t value maximum8.000 A²·s

Control circuit/ Control

type of voltage of the control supply voltageAC

at 50 Hz110... 230 V

at 60 Hz110... 230 V

at 50 Hz110... 230 V

at 60 Hz110... 230 V

at 50 Hz full-scale value for signal<0> recognition40 V

at 60 Hz full-scale value for signal<0> recognition40 V

initial value for signal <1> detection90 V

1 rated value50 Hz

2 rated value60 Hz

symmetrical line frequency tolerance5 Hz

initial value0,82

at AC2 mA

control current at AC rated value15 mA

ON-delay time40 ms; additionally maks. one half-wave

OFF-delay time40 ms; additionally maks. one half-wave

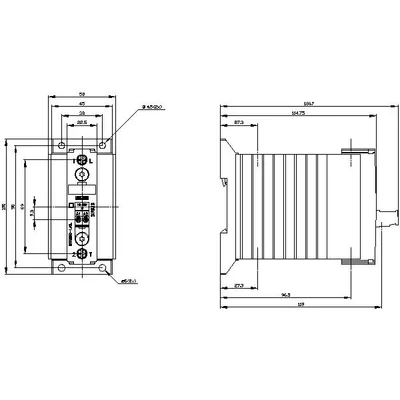

Installation/ mounting/ dimensions

fastening method side-by-side mountingVar

fastening methodscrew fixing ve snap-on mounting on standard mounting rail 35 mm according to IEC 60715

design of the thread of the screw for securing the equipmentM4

height100 mm

width50 mm

depth133 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitVar

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

— solid2x (1... 2,5 mm²), 2x (2,5... 6 mm²)

— finely stranded with core end processing2x (1... 2,5 mm²), 2x (2,5... 6 mm²), 1x 10 mm²

for AWG cables for main contacts2x (14... 10), 1x 8

solid or stranded1,5... 6 mm²

finely stranded with core end processing1... 10 mm²

— solid1x (0,5... 2,5 mm²), 2x (0,5... 1 mm²)

— finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1 mm²)

— finely stranded without core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1 mm²)

for AWG cables for auxiliary and control contacts1x (20... 12)

AWG number as coded connectable conductor cross section for main contacts14... 8

for main contacts with screw-type terminals2... 2,5 N·m

for auxiliary and control contacts with screw-type terminals0,5... 0,6 N·m

for main contacts with screw-type terminals18... 22 lbf·in

for auxiliary and control contacts with screw-type terminals4,5... 5,3 lbf·in

for main contactsM4

of the auxiliary and control contactsM3

for main contacts10 mm

for auxiliary and control contacts7 mm

type of groundinggrounding heat sink by means of screw-type terminal

UL/CSA ratings

operational current according to UL 508 rated value43 A

Electrical Safety

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front

Ambient conditions

installation altitude at height above sea level maximum1.000 m

during operation-25... +60 °C

during storage-55... +80 °C

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV / 5 kHz, behavior criterion 2

due to conductor-earth surge according to IEC 61000-4-52 kV, behavior criterion 2

due to conductor-conductor surge according to IEC 61000-4-51 kV, behavior criterion 2

due to high-frequency radiation according to IEC 61000-4-6140 dBuV in the frequency range 0,15... 80 MHz, behavior criterion 1

field-based interference according to IEC 61000-4-380 MHz... 1 GHz 10 V/m, behavior criterion 1

electrostatic discharge according to IEC 61000-4-24 kV contact discharging / 8 kV air discharging, behavior criterion 2

conducted HF interference emissions according to CISPR11Class A for industrial environment

field-bound HF interference emission according to CISPR11Class B for the domestic, business ve commercial environments

Short-circuit protection, design of the fuse link

of full range R fuse link for semiconductor protection at NH design usable3NE8717-1

of gS fuse for semiconductor protection at NH design usable3NE1817-0

of full range R fuse link for semiconductor protection at cylindrical design usable5SE1363

of back-up R fuse link for semiconductor protection at NH design usable3NE1817-0

of back-up R fuse link for semiconductor protection at cylindrical design 14 x 51 mm usable3NC1450

of back-up R fuse link for semiconductor protection at cylindrical design 22 x 58 mm usable3NC2250

at cylindrical design 14 x 51 mm usable3NW6117-1; These fuses have a smaller rated current than the semiconductor relays

at cylindrical design 14 x 51 mm usable noteThese fuses have a smaller rated current than the semiconductor relays

at cylindrical design 22 x 58 mm usable3NW6217-1; These fuses have a smaller rated current than the semiconductor relays

at cylindrical design 22 x 58 mm usable noteThese fuses have a smaller rated current than the semiconductor relays

of NEOZED fuse usable5SE2335; These fuses have a smaller rated current than the semiconductor relays

Aksesuarlar 13

Siemens 3RF3350-1AA22 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RT2900-1SB10	Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB60	Aksesuar · Miscellaneous accessories · labeling plates
3RF3900-2TB88	Aksesuar
3RF3900-1TA88	Aksesuar
8WH6000-0CF07	Aksesuar
3NE1817-0	Seçmeli zorunlu ürün
3NC2250	Seçmeli zorunlu ürün
3NW6117-1	Seçmeli zorunlu ürün
3NW6217-1	Seçmeli zorunlu ürün
5SE1363	Seçmeli zorunlu ürün
5SE2335	Seçmeli zorunlu ürün
3NE8717-1	Seçmeli zorunlu ürün
