Siemens 3RF3330-2DA64 için nasıl fiyat teklifi alabilirim?

Siemens 3RF3330-2DA64 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu YLSPDACIPPOYUC ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RF3330-2DA64 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RF3330-2DA64 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RF3330-2DA64 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

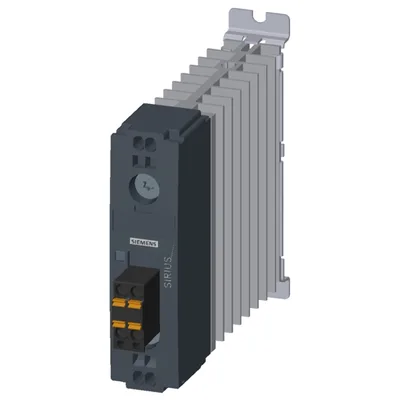

Siemens 3RF3330-2DA64

solid-state kontaktör 1-pole 3RF33 AC-1 20 A 40 °C / 48-460 V / 110 V DC / short-circuit-proof en çok 25 A ile B miniature devre kesici / yaylı klemens / reusable packaging

SiemensMFR # 3RF3330-2DA64SKU # YLSPDACIPPOYUC

product brand nameSIRIUS

product designationsolid-state contactor

product type designation3RF33

product functionzero-point switching

power loss [V∙A] maximum19 V·A

at AC in hot operating state19 W

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

solid-state kontaktör 1-pole 3RF33 AC-1 20 A 40 °C / 48-460 V / 110 V DC / short-circuit-proof en çok 25 A ile B miniature devre kesici / yaylı klemens / reusable packaging

Siemens 3RF3330-2DA64

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationsolid-state contactor

product type designation3RF33

_1 of the accessories that can be ordered3RF2900-3PA88

_1 of the accessories that can be orderedterminal cover

General technical data

product functionzero-point switching

product featureshort-circuit-proof with B miniature circuit breaker

power loss [V∙A] maximum19 V·A

at AC in hot operating state19 W

at AC in hot operating state per pole19 W

without load current share typical1,1 W

type of calculation of power loss current-dependentlinear

insulation voltage rated value600 V

degree of pollution3

surge voltage resistance of main circuit rated value6 kV

protection class IPIP20

protection class IP on the front according to IEC 60529IP20

shock resistance according to IEC 60068-2-2715 g / 11 ms

vibration resistance according to IEC 60068-2-62 g

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)01/15/2024

SVHC substance nameLead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 Dibutylbis(pentane-2,4-dionato-O,O')tin CAS-Yok. 22673-19-4

Net Weight0,165 kg

Main circuit

number of poles for main current circuit1

number of NO contacts for main contacts1

number of NC contacts for main contacts0

type of voltage of the operating voltageAC

— at 50 Hz rated value48... 460 V

— at 60 Hz rated value48... 460 V

operating frequency rated value50... 60 Hz

relative symmetrical tolerance of the operating frequency10 %

at 50 Hz40... 506 V

at 60 Hz40... 506 V

operational current rated value maximum20 A

at AC-1 at 400 V rated value20 A

at AC-51 rated value20 A

at AC-51 according to IEC 60947-4-320 A

according to UL 508 rated value24 A

ampacity maximum30 A

operational current minimum500 mA

operational current of the MCB at AC rated value20 A

rate of voltage rise at the thyristor for main contacts maximum permissible1.000 V/µs

blocking voltage at the thyristor for main contacts maximum permissible1.200 V

reverse current of the thyristor10 mA

derating temperature40 °C

surge current resistance rated value1.300 A

I2t value maximum8.000 A²·s

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage at DC77... 110 V

control supply voltage 1 at DC rated value110 V

full-scale value for signal<0> recognition40 V

initial value0,7

full-scale value1

control current at DC rated value10 mA

ON-delay time1 ms; additionally maks. one half-wave

OFF-delay time1 ms; additionally maks. one half-wave

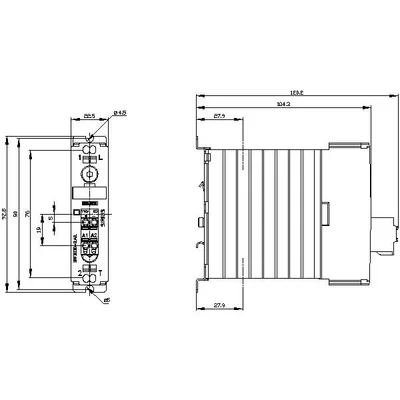

Installation/ mounting/ dimensions

fastening method side-by-side mountingVar

fastening methodscrew fixing ve snap-on mounting on standard mounting rail 35 mm according to IEC 60715

design of the thread of the screw for securing the equipmentM4

height95 mm

width22,5 mm

depth121 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitVar

for main current circuitspring-loaded terminals

for auxiliary and control circuitspring-loaded terminals

— solid2x (0,5... 2,5 mm²)

— finely stranded with core end processing2x (0,5... 1,5 mm²)

— finely stranded without core end processing2x (0,5... 2,5 mm²)

for AWG cables for main contacts2x (18... 14)

solid or stranded0,5... 2,5 mm²

finely stranded with core end processing0,5... 1,5 mm²

finely stranded without core end processing0,5... 2,5 mm²

— solid0,5... 1,5 mm²

— finely stranded with core end processing0,5... 2,5 mm²

— finely stranded without core end processing0,5... 2,5 mm²

for AWG cables for auxiliary and control contacts1x (20... 12)

AWG number as coded connectable conductor cross section for main contacts18... 14

for main contacts10 mm

for auxiliary and control contacts10 mm

type of groundinggrounding by snapping onto grounded DIN rails

UL/CSA ratings

operational current according to UL 508 rated value24 A

Electrical Safety

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front

Ambient conditions

installation altitude at height above sea level maximum1.000 m

during operation-25... +60 °C

during storage-55... +80 °C

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV / 5 kHz, behavior criterion 2

due to conductor-earth surge according to IEC 61000-4-52 kV, behavior criterion 2

due to conductor-conductor surge according to IEC 61000-4-51 kV, behavior criterion 2

due to high-frequency radiation according to IEC 61000-4-6140 dBuV in the frequency range 0,15... 80 MHz, behavior criterion 1

field-based interference according to IEC 61000-4-380 MHz... 1 GHz 10 V/m, behavior criterion 1

electrostatic discharge according to IEC 61000-4-24 kV contact discharging / 8 kV air discharging, behavior criterion 2

conducted HF interference emissions according to CISPR11Class A for industrial environment

field-bound HF interference emission according to CISPR11Class B for the domestic, business ve commercial environments

Short-circuit protection, design of the fuse link

of full range R fuse link for semiconductor protection at NH design usable3NE8702-1

of gS fuse for semiconductor protection at NH design usable3NE1803-0

of full range R fuse link for semiconductor protection at cylindrical design usable5SE1335

of back-up R fuse link for semiconductor protection at NH design usable3NE8801-0MK

of back-up R fuse link for semiconductor protection at cylindrical design 10 x 38 mm usable3NC1032

of back-up R fuse link for semiconductor protection at cylindrical design 14 x 51 mm usable3NC1450

of back-up R fuse link for semiconductor protection at cylindrical design 22 x 58 mm usable3NC2263

at NH design usable3NA6807; These fuses have a smaller rated current than the semiconductor relays

at NH design usable noteThese fuses have a smaller rated current than the semiconductor relays

at cylindrical design 10 x 38 mm usable3NW6012-1

at cylindrical design 14 x 51 mm usable3NW6112-1

at cylindrical design 22 x 58 mm usable3NW6212-1

of DIAZED fuse usable5SB4011

of NEOZED fuse usable5SE2335

Aksesuarlar 19

Siemens 3RF3330-2DA64 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RA2908-1A	Aksesuar · Miscellaneous accessories · screwdrivers
8WH6000-0CF07	Aksesuar
3RF3900-1TA88	Aksesuar
3RF3900-2TB88	Aksesuar
3RT2900-1SB60	Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB10	Aksesuar · Miscellaneous accessories · labeling plates
5SE2335	Seçmeli zorunlu ürün
5SE1335	Seçmeli zorunlu ürün
3NW6212-1	Seçmeli zorunlu ürün
3NW6117-1	Seçmeli zorunlu ürün
3NW6012-1	Seçmeli zorunlu ürün
3NE8801-0MK	Seçmeli zorunlu ürün
3NC2263	Seçmeli zorunlu ürün
5SB4011	Seçmeli zorunlu ürün
3NC1032	Seçmeli zorunlu ürün
3NE1803-0	Seçmeli zorunlu ürün
3NA6807	Seçmeli zorunlu ürün
3NE8702-1	Seçmeli zorunlu ürün
