Siemens 3RF2410-2AB55 için nasıl fiyat teklifi alabilirim?

Siemens 3RF2410-2AB55 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B03084EA ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RF2410-2AB55 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RF2410-2AB55 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RF2410-2AB55 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

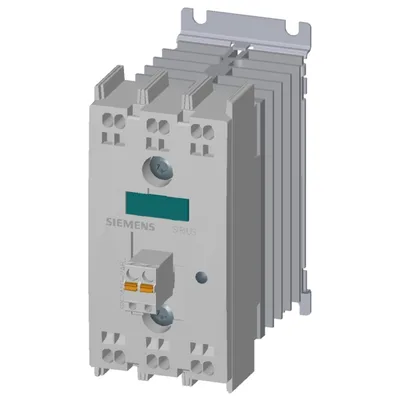

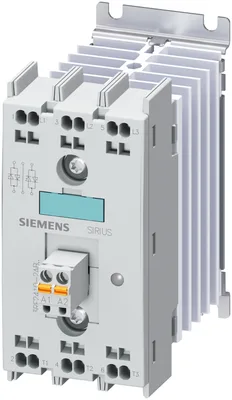

Siemens 3RF2410-2AB55

***phase-out type*** solid-state contactor 3-phase 3RF2 AC 51 / 10 A / 40 °C 48-600 V / 230 V AC 2-phase controlled spring-loaded terminal blocking voltage 1200 V

SiemensMFR # 3RF2410-2AB55SKU # CEY-8EF3B03084EA

product brand nameSIRIUS

product designationsolid-state contactor

design of the product2-pole controlled

product type designation3RF24

product functionzero-point switching

at AC in hot operating state23 W

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

***phase-out type*** solid-state contactor 3-phase 3RF2 AC 51 / 10 A / 40 °C 48-600 V / 230 V AC 2-phase controlled spring-loaded terminal blocking voltage 1200 V

Siemens 3RF2410-2AB55

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationsolid-state contactor

design of the product2-pole controlled

product type designation3RF24

General technical data

product functionzero-point switching

at AC in hot operating state23 W

at AC in hot operating state per pole7,67 W

without load current share typical3,5 W

insulation voltage rated value600 V

degree of pollution3

surge voltage resistance of main circuit rated value6 kV

protection class IPIP20

protection class IP on the front according to IEC 60529IP20

shock resistance according to IEC 60068-2-2715 g / 11 ms

vibration resistance according to IEC 60068-2-62 g

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead monoxide (lead oxide) CAS-Yok. 1317-36-8 Dibutylbis(pentane-2,4-dionato-O,O')tin CAS-Yok. 22673-19-4

Net Weight0,261 kg

Main circuit

number of poles for main current circuit3

number of NO contacts for main contacts2

number of NC contacts for main contacts0

type of voltage of the operating voltageAC

— at 50 Hz rated value48... 600 V

— at 60 Hz rated value48... 600 V

operating frequency rated value50... 60 Hz

relative symmetrical tolerance of the operating frequency10 %

at 50 Hz40... 660 V

at 60 Hz40... 660 V

at AC-1 at 400 V rated value10,5 A

at AC-51 rated value10,5 A

at AC-51 according to IEC 60947-4-37 A

according to UL 508 rated value7 A

operational current minimum100 mA

rate of voltage rise at the thyristor for main contacts maximum permissible500 V/µs

blocking voltage at the thyristor for main contacts maximum permissible1.200 V

reverse current of the thyristor10 mA

derating temperature40 °C

surge current resistance rated value200 A

I2t value maximum200 A²·s

Control circuit/ Control

type of voltage of the control supply voltageAC

at 50 Hz180... 230 V

at 60 Hz180... 230 V

at 50 Hz full-scale value for signal<0> recognition40 V

at 60 Hz full-scale value for signal<0> recognition180 V

initial value for signal <1> detection180 V

1 rated value45 Hz

2 rated value66 Hz

symmetrical line frequency tolerance5 Hz

at AC2 mA

control current at AC rated value15 mA

ON-delay time40 ms; additionally maks. one half-wave

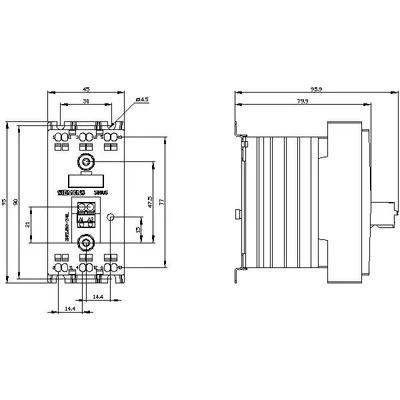

Installation/ mounting/ dimensions

fastening method side-by-side mountingVar

fastening methodscrew fixing ve snap-on mounting on standard mounting rail 35 mm according to IEC 60715

design of the thread of the screw for securing the equipmentM4

height95 mm

width45 mm

depth96,5 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitVar

for main current circuitspring-loaded terminals

for auxiliary and control circuitspring-loaded terminals

— solid2x (0,5... 2,5 mm²)

— finely stranded with core end processing2x (0,5... 1,5 mm²)

— finely stranded without core end processing2x (0,5... 2,5 mm²)

for AWG cables for main contacts2x (18... 14)

solid or stranded0,5... 2,5 mm²

finely stranded with core end processing0,5... 1,5 mm²

finely stranded without core end processing0,5... 2,5 mm²

— solid0,5... 1,5 mm²

— finely stranded with core end processing0,5... 2,5 mm²

— finely stranded without core end processing0,5... 2,5 mm²

for AWG cables for auxiliary and control contacts1x (20... 12)

AWG number as coded connectable conductor cross section for main contacts14... 10

for main contacts10 mm

for auxiliary and control contacts10 mm

UL/CSA ratings

operational current according to UL 508 rated value7 A

Electrical Safety

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front

Ambient conditions

installation altitude at height above sea level maximum1.000 m

during operation-25... +60 °C

during storage-55... +80 °C

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV / 5 kHz, behavior criterion 2

due to conductor-earth surge according to IEC 61000-4-52 kV, behavior criterion 2

due to conductor-conductor surge according to IEC 61000-4-51 kV, behavior criterion 2

due to high-frequency radiation according to IEC 61000-4-6140 dBuV in the frequency range 0,15... 80 MHz, behavior criterion 1

electrostatic discharge according to IEC 61000-4-24 kV contact discharging / 8 kV air discharging, behavior criterion 2

conducted HF interference emissions according to CISPR11Class A for industrial environment

field-bound HF interference emission according to CISPR11Class A for industrial environment

Short-circuit protection, design of the fuse link

of full range R fuse link for semiconductor protection at NH design usable3NE1813-0

of full range R fuse link for semiconductor protection at cylindrical design usable5SE1310; Maximum operating voltage 400 V!

of back-up R fuse link for semiconductor protection at NH design usable3NE8015-1

of back-up R fuse link for semiconductor protection at cylindrical design 10 x 38 mm usable3NC1016

of back-up R fuse link for semiconductor protection at cylindrical design 14 x 51 mm usable3NC1420

of back-up R fuse link for semiconductor protection at cylindrical design 22 x 58 mm usable3NC2220
