Siemens 3RF2230-1AC35 için nasıl fiyat teklifi alabilirim?

Siemens 3RF2230-1AC35 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B02EE5B0 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RF2230-1AC35 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RF2230-1AC35 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RF2230-1AC35 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

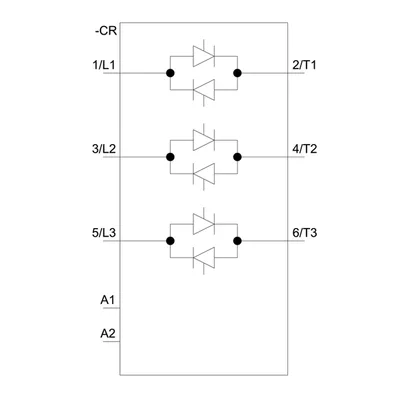

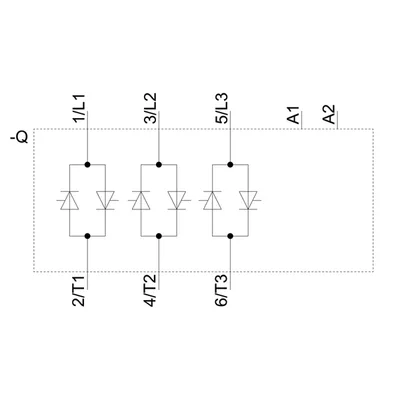

Siemens 3RF2230-1AC35

***phase-out type*** semiconductor relay, 3-phase 3RF2 30 A / 40 °C 48-600 V / 110 V AC 3-phase controlled screw terminal blocking voltage 1200 V for mounting on available cooling surfaces

SiemensMFR # 3RF2230-1AC35SKU # CEY-8EF3B02EE5B0

product brand nameSIRIUS

product designationsolid-state relay

design of the product3-pole controlled

product type designation3RF22

product functionzero-point switching

at AC in hot operating state122 W

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

***phase-out type*** semiconductor relay, 3-phase 3RF2 30 A / 40 °C 48-600 V / 110 V AC 3-phase controlled screw terminal blocking voltage 1200 V for mounting on available cooling surfaces

Siemens 3RF2230-1AC35

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationsolid-state relay

design of the product3-pole controlled

product type designation3RF22

General technical data

product functionzero-point switching

at AC in hot operating state122 W

at AC in hot operating state per pole122 W

without load current share typical1,8 W

insulation voltage rated value600 V

surge voltage resistance of main circuit rated value6 kV

protection class IPIP20

protection class IP on the front according to IEC 60529IP20

shock resistance according to IEC 60068-2-2715 g / 11 ms

vibration resistance according to IEC 60068-2-62 g

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8

Net Weight0,128 kg

Main circuit

number of poles for main current circuit3

number of NO contacts for main contacts3

number of NC contacts for main contacts0

type of voltage of the operating voltageAC

— at 50 Hz rated value48... 600 V

— at 60 Hz rated value48... 600 V

operating frequency rated value50... 60 Hz

relative symmetrical tolerance of the operating frequency10 %

at 50 Hz40... 660 V

at 60 Hz40... 660 V

operational current rated value maximum30 A

at AC-1 at 400 V rated value30 A

at AC-51 rated value30 A

according to UL 508 rated value30 A

ampacity maximum30 A

operational current minimum500 mA

rate of voltage rise at the thyristor for main contacts maximum permissible500 V/µs

blocking voltage at the thyristor for main contacts maximum permissible1.200 V

reverse current of the thyristor10 mA

derating temperature40 °C

surge current resistance rated value300 A

I2t value maximum450 A²·s

Control circuit/ Control

type of voltage of the control supply voltageAC

at 50 Hz88... 121 V

at 60 Hz88... 121 V

at 50 Hz full-scale value for signal<0> recognition40 V

at 60 Hz full-scale value for signal<0> recognition40 V

initial value for signal <1> detection90 V

1 rated value50 Hz

2 rated value60 Hz

at AC2 mA

control current at AC rated value15 mA

ON-delay time40 ms

OFF-delay time40 ms; additionally maks. one half-wave

Installation/ mounting/ dimensions

fastening method side-by-side mountingVar

fastening methodscrew fixing

design of the thread of the screw for securing the equipmentM4

tightening torque of fixing screw maximum1,5 N·m

tightening torque [lbf·in] of fixing screw maximum13 lbf·in

height95 mm

width45 mm

depth47 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitVar

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

— solid2x (1,5... 2,5 mm²), 2x (2,5... 6 mm²)

— finely stranded with core end processing2x (1... 2,5 mm²), 2x (2,5... 6 mm²), 1x 10 mm²

for AWG cables for main contacts2x (14... 10)

solid or stranded1,5... 6 mm²

finely stranded with core end processing1... 10 mm²

— solid1x (0,5... 2,5 mm²), 2x (0,5... 1 mm²)

— finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1 mm²)

— finely stranded without core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1 mm²)

for AWG cables for auxiliary and control contacts1x (20... 12)

AWG number as coded connectable conductor cross section for main contacts10... 14

for main contacts with screw-type terminals2... 2,5 N·m

for auxiliary and control contacts with screw-type terminals0,5... 0,6 N·m

for main contacts with screw-type terminals18... 22 lbf·in

for auxiliary and control contacts with screw-type terminals4,5... 5,3 lbf·in

for main contactsM4

of the auxiliary and control contactsM3

for main contacts10 mm

for auxiliary and control contacts7 mm

UL/CSA ratings

operational current according to UL 508 rated value30 A

Electrical Safety

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front

Ambient conditions

installation altitude at height above sea level maximum1.000 m

during operation-25... +60 °C

during storage-55... +80 °C

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV / 5 kHz, behavior criterion 2

due to conductor-earth surge according to IEC 61000-4-52 kV, behavior criterion 2

due to conductor-conductor surge according to IEC 61000-4-51 kV, behavior criterion 2

due to high-frequency radiation according to IEC 61000-4-6140 dBuV in the frequency range 0,15... 80 MHz, behavior criterion 1

electrostatic discharge according to IEC 61000-4-24 kV contact discharging / 8 kV air discharging, behavior criterion 2

conducted HF interference emissions according to CISPR11Class A for industrial environment

field-bound HF interference emission according to CISPR11Class A for industrial environment

Short-circuit protection, design of the fuse link

of full range R fuse link for semiconductor protection at NH design usable3NE1814-0; These fuses have a smaller rated current than the semiconductor relays

of back-up R fuse link for semiconductor protection at NH design usable3NE8003-1

of back-up R fuse link for semiconductor protection at cylindrical design 10 x 38 mm usable3NC1025; These fuses have a smaller rated current than the semiconductor relays

of back-up R fuse link for semiconductor protection at cylindrical design 14 x 51 mm usable3NC1430

of back-up R fuse link for semiconductor protection at cylindrical design 22 x 58 mm usable3NC2232

up to 460 V3NA3803-6; These fuses have a smaller rated current than the semiconductor relays

up to 600 V3NA3803-6; These fuses have a smaller rated current than the semiconductor relays
