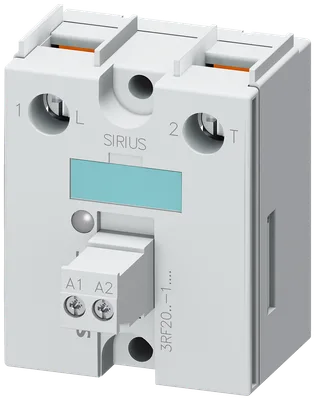

Siemens 3RF2070-1AA02

***phase-out type*** semiconductor relay, 1-phase 3RF2 width 45 mm, 70 A 24-230 V / 24 V DC screw terminal for mounting on available cooling surfaces

SiemensMFR # 3RF2070-1AA02SKU # CEY-8EF3B02F4434

product brand nameSIRIUS

product designationsolid-state relay

design of the product1-pole

product type designation3RF20

product functionzero-point switching

at AC in hot operating state94 W

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

***phase-out type*** semiconductor relay, 1-phase 3RF2 width 45 mm, 70 A 24-230 V / 24 V DC screw terminal for mounting on available cooling surfaces

Siemens 3RF2070-1AA02

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationsolid-state relay

design of the product1-pole

product type designation3RF20

General technical data

product functionzero-point switching

at AC in hot operating state94 W

at AC in hot operating state per pole94 W

without load current share typical0,4 W

insulation voltage rated value600 V

protection class IPIP20

protection class IP on the front according to IEC 60529IP20

shock resistance according to IEC 60068-2-2715 g / 11 ms

vibration resistance according to IEC 60068-2-62 g

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)05/28/2009

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1

Net Weight0,069 kg

Main circuit

number of poles for main current circuit1

number of NO contacts for main contacts1

number of NC contacts for main contacts0

type of voltage of the operating voltageAC

— at 50 Hz rated value24... 230 V

— at 60 Hz rated value24... 230 V

operating frequency rated value50... 60 Hz

relative symmetrical tolerance of the operating frequency10 %

at 50 Hz20... 253 V

at 60 Hz20... 253 V

operational current rated value maximum70 A

at AC-1 at 400 V rated value70 A

at AC-51 rated value50 A

according to UL 508 rated value50 A

ampacity maximum70 A

operational current minimum500 mA

rate of voltage rise at the thyristor for main contacts maximum permissible1.000 V/µs

blocking voltage at the thyristor for main contacts maximum permissible800 V

reverse current of the thyristor10 mA

derating temperature40 °C

surge current resistance rated value1.200 A

I2t value maximum7.200 A²·s

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage 1 at DC rated value maximum permissible30 V

control supply voltage 1 at DC15... 24 V

initial value for signal <1> detection15 V

full-scale value for signal<0> recognition5 V

at DC13 mA

control current at DC rated value15 mA

ON-delay time1 ms; additionally maks. one half-wave

OFF-delay time1 ms; additionally maks. one half-wave

Installation/ mounting/ dimensions

fastening method side-by-side mountingVar

fastening methodscrew fixing

design of the thread of the screw for securing the equipmentM4

tightening torque of fixing screw maximum1,5 N·m

tightening torque [lbf·in] of fixing screw maximum13 lbf·in

height58 mm

width45 mm

depth48 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitVar

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

— solid2x (1,5... 2,5 mm²), 2x (2,5... 6 mm²)

— finely stranded with core end processing2x (1... 2,5 mm²), 2x (2,5... 6 mm²), 1x 10 mm²

for AWG cables for main contacts2x (14... 10)

solid or stranded1,5... 6 mm²

finely stranded with core end processing1... 10 mm²

— solid1x (0,5... 2,5 mm²), 2x (0,5... 1 mm²)

— finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1 mm²)

— finely stranded without core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1 mm²)

for AWG cables for auxiliary and control contacts1x (20... 12)

AWG number as coded connectable conductor cross section for main contacts14... 10

for main contacts with screw-type terminals2... 2,5 N·m

for auxiliary and control contacts with screw-type terminals0,5... 0,6 N·m

for main contacts with screw-type terminals7... 10,3 lbf·in

for auxiliary and control contacts with screw-type terminals4,5... 5,3 lbf·in

for main contactsM4

of the auxiliary and control contactsM3

for main contacts10 mm

for auxiliary and control contacts7 mm

UL/CSA ratings

operational current according to UL 508 rated value50 A

Electrical Safety

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front

Ambient conditions

installation altitude at height above sea level maximum1.000 m

during operation-25... +60 °C

during storage-55... +80 °C

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV / 5 kHz, behavior criterion 2

due to conductor-earth surge according to IEC 61000-4-52 kV, behavior criterion 2

due to conductor-conductor surge according to IEC 61000-4-51 kV, behavior criterion 2

due to high-frequency radiation according to IEC 61000-4-6140 dBuV in the frequency range 0,15... 80 MHz, behavior criterion 1

field-based interference according to IEC 61000-4-380 MHz... 1 GHz 10 V/m, behavior criterion 1

electrostatic discharge according to IEC 61000-4-24 kV contact discharging / 8 kV air discharging, behavior criterion 2

conducted HF interference emissions according to CISPR11Class A for industrial environment

field-bound HF interference emission according to CISPR11Class B for the domestic, business ve commercial environments

Short-circuit protection, design of the fuse link

of gS fuse for semiconductor protection at NH design usable3NE1820-0

of full range R fuse link for semiconductor protection at cylindrical design usable5SE1363; These fuses have a smaller rated current than the semiconductor relays

of back-up R fuse link for semiconductor protection at NH design usable3NE8020-1

of back-up R fuse link for semiconductor protection at cylindrical design 22 x 58 mm usable3NC2200

at NH design usable3NA6817; These fuses have a smaller rated current than the semiconductor relays

at NH design usable noteThese fuses have a smaller rated current than the semiconductor relays

at cylindrical design 22 x 58 mm usable3NW6217-1; These fuses have a smaller rated current than the semiconductor relays

at cylindrical design 22 x 58 mm usable noteThese fuses have a smaller rated current than the semiconductor relays

of DIAZED fuse usable5SB4111; These fuses have a smaller rated current than the semiconductor relays

of DIAZED fuse usable noteThese fuses have a smaller rated current than the semiconductor relays
