Siemens 3RB3133-4UX1 için nasıl fiyat teklifi alabilirim?

Siemens 3RB3133-4UX1 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B03957DA ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RB3133-4UX1 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RB3133-4UX1 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RB3133-4UX1 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

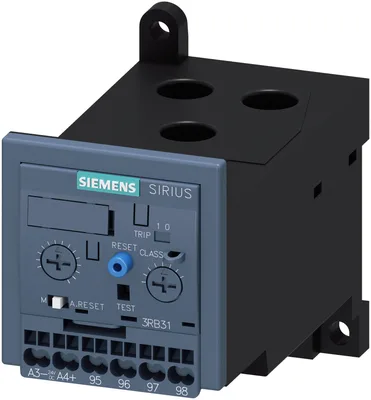

Siemens 3RB3133-4UX1

aşırı yük röle 12.5...50 A elektronik için motor koruması boyut S2, sınıf 5E...30E Stand-alone installation Main circuit: Straight-through transformatör yardımcı circuit: Spring-type klemens Manual-Automatic-Reset Internal ground arıza detection

SiemensMFR # 3RB3133-4UX1SKU # CEY-8EF3B03957DA

product brand nameSIRIUS

product designationsolid-state overload relay

product type designation3RB3

size of overload relayS2

per pole0,03 W

surge voltage resistance rated value6 kV

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3RB3133-4UX1

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationsolid-state overload relay

product type designation3RB3

General technical data

size of overload relayS2

size of contactor can be combined company-specificS2

power loss [W] for rated value of the current at AC in hot operating state0,1 W

per pole0,03 W

type of calculation of power loss current-dependentquadratic

insulation voltage with degree of pollution 3 at AC rated value690 V

surge voltage resistance rated value6 kV

in networks with ungrounded star point between auxiliary and auxiliary circuit300 V

in networks with grounded star point between auxiliary and auxiliary circuit300 V

in networks with ungrounded star point between main and auxiliary circuit600 V

in networks with grounded star point between main and auxiliary circuit690 V

shock resistance15 g / 11 ms

according to IEC 60068-2-2715 g / 11 ms; Signaling contact 97 / 98 in position "Tripped": 8g / 11 ms

vibration resistance1 … 6 Hz, 15 mm; 6 … 500 Hz, 20 m/s²; 10 cycles

thermal current50 A

with automatic reset typical3 min

with remote-reset0 min

with manual reset0 min

reference code according to IEC 81346-2F

Substance Prohibitance (day/month/year)10/15/2014

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1

Net Weight0,259 kg

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-40... +80 °C

during transport-40... +80 °C

temperature compensation-25... +60 °C

relative humidity during operation10... 95 %

Main circuit

number of poles for main current circuit3

adjustable current response value current of the current-dependent overload release12,5... 50 A

rated value690 V

for remote-reset function at DC24 V

at AC-3e rated value maximum690 V

operating frequency rated value50... 60 Hz

operational current rated value50 A

operational current at AC-3e at 400 V rated value50 A

for 3-phase motors at 400 V at 50 Hz7,5... 22 kW

for AC motors at 500 V at 50 Hz11... 30 kW

for AC motors at 690 V at 50 Hz11... 45 kW

Auxiliary circuit

design of the auxiliary switchdahili

number of NC contacts for auxiliary contacts1

notefor contactor disconnection

number of NO contacts for auxiliary contacts1

notefor message "tripped"

number of CO contacts for auxiliary contacts0

at 24 V4 A

at 110 V4 A

at 120 V4 A

at 125 V4 A

at 230 V3 A

at 24 V2 A

at 60 V0,55 A

at 110 V0,3 A

at 125 V0,3 A

at 220 V0,11 A

Protective and monitoring functions

trip classCLASS 5E, 10E, 20E ve 30E adjustable

design of the overload releaseelectronic

response value current of the grounding protection minimum0,75 x IMotor

response time of the grounding protection in settled state1.000 ms

minimumIMotor > lower current setting value

maximumIMotor < upper current setting value x 3,5

UL/CSA ratings

at 480 V rated value50 A

at 600 V rated value50 A

contact rating of auxiliary contacts according to ULB600 / R300

Short-circuit protection

— with type of coordination 1 requiredgG: 250 A

— with type of coordination 2 requiredgG: 200 A

for short-circuit protection of the auxiliary switch requiredfuse gG: 6 A

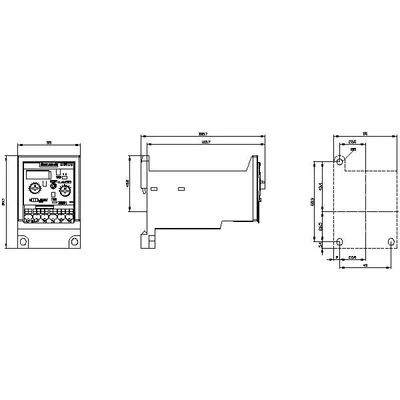

Installation/ mounting/ dimensions

mounting positionany

fastening methodstand-alone installation

height81 mm

width55 mm

depth109 mm

— forwards10 mm

— backwards0 mm

— upwards10 mm

— at the side10 mm

— downwards10 mm

— forwards10 mm

— backwards0 mm

— upwards10 mm

— downwards10 mm

— at the side10 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitVar

for main current circuitstraight-through transformers

for auxiliary and control circuitspring-loaded terminals

arrangement of electrical connectors for main current circuitTop ve bottom

— solid2x (0,25... 1,5 mm²)

— solid or stranded2x (0,25... 1,5 mm²)

— finely stranded with core end processing2x (0,25... 1,5 mm²)

— finely stranded without core end processing2x (0,25... 1,5 mm²)

for AWG cables for auxiliary contacts1x (24... 16), 2x (24... 16)

design of screwdriver shaftDiameter 5 to 6 mm

size of the screwdriver tipPozidriv PZ 2

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front

Communication/ Protocol

type of voltage supply via input/output link masterYok

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV (power ports), 1 kV (signal ports) corresponds to degree of severity 3

due to conductor-earth surge according to IEC 61000-4-52 kV (line to earth) corresponds to degree of severity 3

due to conductor-conductor surge according to IEC 61000-4-51 kV (line to line) corresponds to degree of severity 3

due to high-frequency radiation according to IEC 61000-4-610 V in frequency range 0,15 to 80 MHz, modulation 80 % AM with 1 kHz

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

Display

display version for switching statusSlide switch

Aksesuarlar 2

Siemens 3RB3133-4UX1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RB3984-0	Aksesuar · Terminal covers · terminal covers
3RU2936-3AA01	Bileşen · terminal support · stand-alone installation supports
