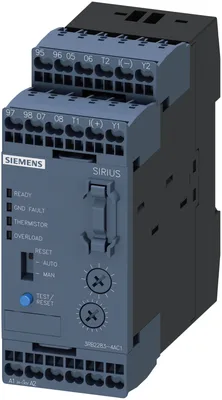

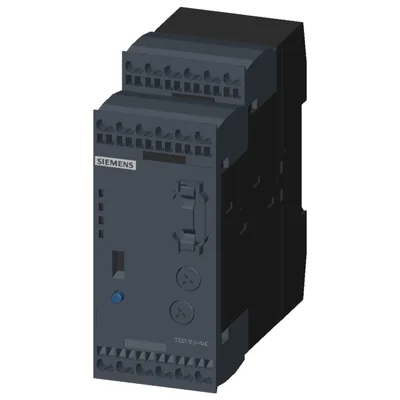

Siemens 3RB2383-4AC1
Evaluation unit for full motor protection (bistable) Size S00...S12, class 5...30 Stand-alone installation Main circuit: -- Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset
product brand nameSIRIUS
product designationsolid-state overload relay
product type designation3RB23
size of overload relayS00... S12
per pole0,17 W
surge voltage resistance rated value4 kV
Ürün Hakkında
Evaluation unit for full motor protection (bistable) Size S00...S12, class 5...30 Stand-alone installation Main circuit: -- Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset
Siemens 3RB2383-4AC1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationsolid-state overload relay
product type designation3RB23
General technical data
size of overload relayS00... S12
size of contactor can be combined company-specificS00... S12
power loss [W] for rated value of the current at AC in hot operating state0,5 W
per pole0,17 W
insulation voltage with degree of pollution 3 at AC rated value300 V
surge voltage resistance rated value4 kV
reference code according to IEC 81346-2F
Substance Prohibitance (day/month/year)07/01/2006
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight0,226 kg
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-40... +80 °C
during transport-40... +80 °C
relative humidity during operation100 %
Main circuit
number of poles for main current circuit3
adjustable current response value current of the current-dependent overload release0,3... 630 A
operational current rated value630 A
at 50 Hz rated value24... 240 V
at 60 Hz rated value24... 240 V
Auxiliary circuit
number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts2
at 24 V6 A
at 110 V6 A
at 120 V6 A
at 125 V6 A
at 230 V3 A
at 24 V2 A
at 60 V0,55 A
at 110 V0,3 A
at 125 V0,3 A
at 220 V0,2 A
Protective and monitoring functions
trip classCLASS 5, 10, 20 ve 30 adjustable
Short-circuit protection
for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 6 A

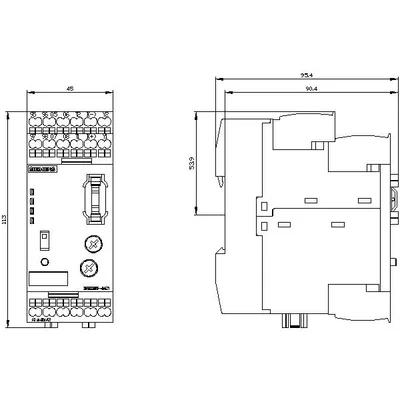

Installation/ mounting/ dimensions
mounting positionany
fastening methodstand-alone installation
height111 mm
width45 mm
depth95 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side6 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side6 mm
Connections/ Terminals
product component removable terminal for auxiliary and control circuitVar
for auxiliary and control circuitspring-loaded terminals
— finely stranded with core end processing2x (0,25... 1,5 mm²)
for AWG cables for auxiliary contacts2x (24... 16)
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
