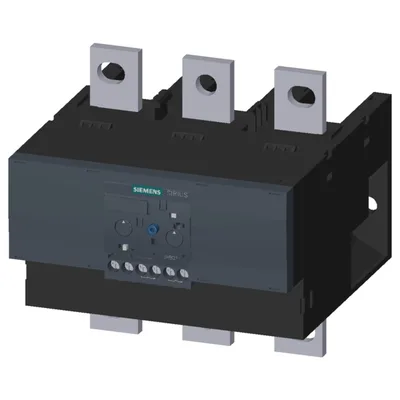

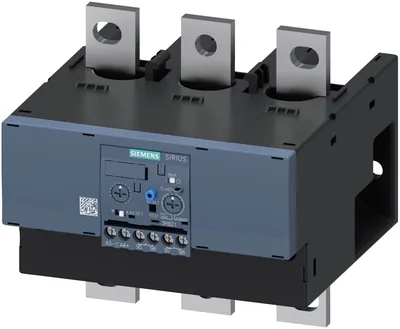

Siemens 3RB2163-4MC2

Overload relay 160...630 A for motor protection Size S10/S12, CLASS 5...30E Contactor mounting/stand-alone installation Main circuit: busbar connection Auxiliary circuit: Screw terminal Manual-Automatic-Reset Internal ground fault detection

SiemensMFR # 3RB2163-4MC2SKU # CEY-8EF3B030D04F

product brand nameSIRIUS

product designationsolid-state overload relay

product type designation3RB2

size of overload relayS10, S12

surge voltage resistance rated value8 kV

shock resistance15 g / 11 ms

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3RB2163-4MC2

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationsolid-state overload relay

product type designation3RB2

General technical data

size of overload relayS10, S12

size of contactor can be combined company-specificS10, S12

type of calculation of power loss current-dependentquadratic

insulation voltage with degree of pollution 3 at AC rated value1.000 V

surge voltage resistance rated value8 kV

in networks with ungrounded star point between auxiliary and auxiliary circuit300 V

in networks with grounded star point between auxiliary and auxiliary circuit300 V

in networks with ungrounded star point between main and auxiliary circuit600 V

in networks with grounded star point between main and auxiliary circuit690 V

shock resistance15 g / 11 ms

according to IEC 60068-2-2715 g / 11 ms; Signaling contact 97 / 98 in position "Tripped": 8g / 11 ms

vibration resistance1 … 6 Hz, 15 mm; 6 … 500 Hz, 20 m/s²; 10 cycles

thermal current630 A

with automatic reset typical3 min

with remote-reset0 min

with manual reset0 min

reference code according to IEC 81346-2F

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1

Net Weight1,833 kg

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-40... +80 °C

during transport-40... +80 °C

temperature compensation-25... +60 °C

relative humidity during operation10... 95 %

Main circuit

number of poles for main current circuit3

adjustable current response value current of the current-dependent overload release160... 630 A

rated value1.000 V

for remote-reset function at DC24 V

at AC-3e rated value maximum1.000 V

operating frequency rated value50... 60 Hz

operational current rated value630 A

operational current at AC-3e at 400 V rated value630 A

for 3-phase motors at 400 V at 50 Hz90... 355 kW

for AC motors at 500 V at 50 Hz132... 400 kW

for AC motors at 690 V at 50 Hz160... 560 kW

Auxiliary circuit

design of the auxiliary switchdahili

number of NC contacts for auxiliary contacts1

notefor contactor disconnection

number of NO contacts for auxiliary contacts1

notefor message "tripped"

number of CO contacts for auxiliary contacts0

at 24 V4 A

at 110 V4 A

at 120 V4 A

at 125 V4 A

at 230 V3 A

at 24 V2 A

at 60 V0,55 A

at 110 V0,3 A

at 125 V0,3 A

at 220 V0,11 A

Protective and monitoring functions

trip classCLASS 5E, 10E, 20E ve 30E adjustable

design of the overload releaseelectronic

response value current of the grounding protection minimum0,75 x IMotor

response time of the grounding protection in settled state1.000 ms

minimumIMotor > lower current setting value

maximumIMotor < upper current setting value x 3,5

UL/CSA ratings

at 480 V rated value630 A

at 600 V rated value630 A

contact rating of auxiliary contacts according to ULB600 / R300

Short-circuit protection

— with type of coordination 1 requiredgG: 800 A, Class L: 1600 A

— with type of coordination 2 requiredgG: 630 A

for short-circuit protection of the auxiliary switch requiredfuse gG: 6 A

Installation/ mounting/ dimensions

mounting positionany

fastening methodContactor mounting/stand-alone installation

height119 mm

width120 mm

depth155 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side6 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side6 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitVar

for main current circuitbusbar connection

for auxiliary and control circuitscrew-type terminals

arrangement of electrical connectors for main current circuitTop ve bottom

— solid1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)

— solid or stranded1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)

— finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,5 mm²)

for AWG cables for auxiliary contacts2x (20... 14)

for main contacts with screw-type terminals20... 22 N·m

for auxiliary contacts with screw-type terminals0,8... 1,2 N·m

for main contactsM10

of the auxiliary and control contactsM3

Electrical Safety

protection class IP on the front according to IEC 60529IP00; IP20 with box terminal/cover

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front with box terminal/cover

Communication/ Protocol

type of voltage supply via input/output link masterYok

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV (power ports), 1 kV (signal ports) corresponds to degree of severity 3

due to conductor-earth surge according to IEC 61000-4-52 kV (line to earth) corresponds to degree of severity 3

due to conductor-conductor surge according to IEC 61000-4-51 kV (line to line) corresponds to degree of severity 3

due to high-frequency radiation according to IEC 61000-4-610 V in frequency range 0,15 to 80 MHz, modulation 80 % AM with 1 kHz

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

Display

display version for switching statusSlide switch

Aksesuarlar 1

Siemens 3RB2163-4MC2 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RT1966-4EA1	Aksesuar · Terminal covers · terminal covers
