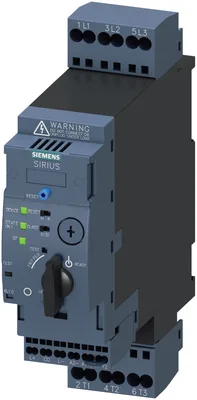

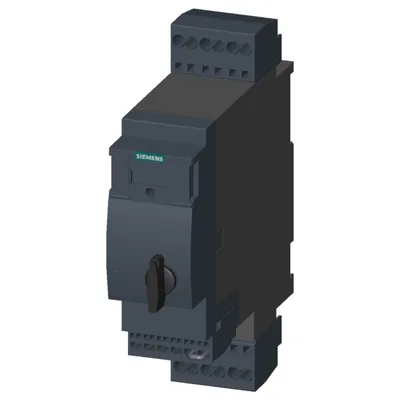

Siemens 3RA6400-2DB42
Possible yedek ile ET 200SP motor starter. ET 200SP I/O system required starter direct-on-line starter için IO-Link 690 V 24 V DC 3...12 A IP20 bağlantı main circuit: yaylı klemens bağlantı kontrol circuit: yaylı klemens alternative 3RK1308 veya 3RA8 requirement kontrolcü such as ET 200SP in use
product brand nameSIRIUS
product designationCompact starter for IO-Link
design of the productdirect starter
product type designation3RA64
product extension auxiliary switchVar
at AC in hot operating state1,8 W
Ürün Hakkında
Possible yedek ile ET 200SP motor starter. ET 200SP I/O system required starter direct-on-line starter için IO-Link 690 V 24 V DC 3...12 A IP20 bağlantı main circuit: yaylı klemens bağlantı kontrol circuit: yaylı klemens alternative 3RK1308 veya 3RA8 requirement kontrolcü such as ET 200SP in use
Siemens 3RA6400-2DB42
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationCompact starter for IO-Link
design of the productdirect starter
product type designation3RA64
General technical data
product function control circuit interface to parallel wiringYok
product extension auxiliary switchVar
at AC in hot operating state1,8 W
at AC in hot operating state per pole0,6 W
without load current share typical2,9 W
insulation voltage rated value690 V
degree of pollution3
surge voltage resistance rated value6.000 V
degree of protection NEMA ratingother
shock resistancea=60 m/s2 (6g) with 10 ms per 3 shocks in all axes
vibration resistancef = 4... 5,8 Hz, d = 15 mm; f = 5,8... 500 Hz, a = 20 m/s²; 10 cycles
of the main contacts typical10.000.000
of auxiliary contacts typical10.000.000
of the signaling contacts typical10.000.000
at DC-13 at 6 A at 24 V typical30.000
at AC-15 at 6 A at 230 V typical200.000
type of coordinationcontinous operation according to IEC 60947-6-2
reference code according to IEC 81346-2Q
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
Net Weight1,35 kg
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-20... +60 °C
during storage-55... +80 °C
during transport-55... +80 °C
relative humidity during operation10... 90 %
Main circuit
number of poles for main current circuit3
adjustable current response value current of the current-dependent overload release3... 12 A
formula for making capacity limit current12 x Ie
formula for limit current breaking capacity10 x Ie
at 400 V rated value5,5 kW
at 500 V rated value5,5 kW
at 690 V rated value7,5 kW
operating voltage at AC-3 rated value maximum690 V
at AC at 400 V rated value12 A
at AC-3 at 400 V rated value12 A
— at 400 V rated value11,5 A
— at 500 V rated value12,4 A
— at 690 V rated value8,9 A
at AC-3 at 400 V rated value5,5 kW
— at 400 V rated value5.500 W
— at 500 V rated value5.500 W
— at 690 V rated value7.500 W
no-load switching frequency3.600 1/h
at AC-41 according to IEC 60947-6-2 maximum750 1/h
at AC-43 according to IEC 60947-6-2 maximum250 1/h
Control circuit/ Control
type of voltageDC
control supply voltage 1 at DC rated value24 V
control supply voltage 1 at DC24 V
at DC maximum2,9 W
Auxiliary circuit
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
number of NO contacts of instantaneous short-circuit trip unit for signaling contact0
number of CO contacts of the current-dependent overload release for signaling contact0
operational current of auxiliary contacts at AC-12 maximum10 A
operational current of auxiliary contacts at DC-13 at 250 V0,27 A
Protective and monitoring functions
trip classCLASS 10 ve 20 adjustable
at 400 V rated value53 kA
at 500 V rated value3 kA
at 690 V rated value3 kA
UL/CSA ratings
at 480 V rated value12 A
at 600 V rated value12 A
at 200/208 V rated value3 hp
at 220/230 V rated value3 hp
at 460/480 V rated value7,5 hp
at 575/600 V rated value10 hp
Short-circuit protection
product function short circuit protectionVar
design of short-circuit protectionelectromagnetic
for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 10 A

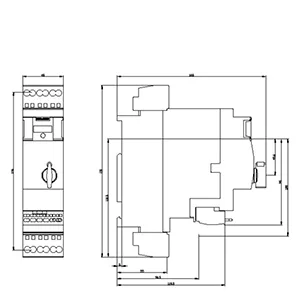

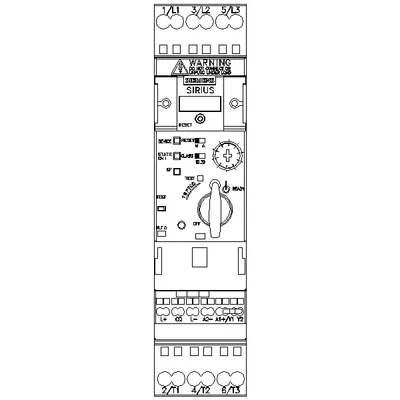

Installation/ mounting/ dimensions
mounting positionany
mounting position recommendeddikey, on yatay standard DIN rail
fastening methodscrew ve snap-on mounting
height191 mm
width45 mm
depth165 mm
Connections/ Terminals
product component removable terminal for main circuitVar
product component removable terminal for auxiliary and control circuitVar
for main current circuitspring-loaded terminals
for auxiliary and control circuitspring-loaded terminals
solid2x (1,5... 6 mm²), 1x 10 mm²
finely stranded with core end processing2x (1,5... 6 mm²)
finely stranded without core end processing2x (1,5... 6 mm²)
— solid2x (0,25... 1,5 mm²)
— finely stranded with core end processing2x (0,25... 1,5 mm²)
— finely stranded without core end processing2x (0,25... 1,5 mm²)
for AWG cables for auxiliary contacts2x (24... 16)
Safety related data
with high demand rate according to SN 3192050 %
B10 value with high demand rate according to SN 319203.000.000
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe
Communication/ Protocol
product function bus communicationVar
AS-Interface protocolYok
IO-Link protocolVar
product function control circuit interface with IO linkVar
IO-Link transfer rateCOM2 (38,4 kBaud)
point-to-point cycle time between master and IO-Link device minimum2,5 ms
type of voltage supply via input/output link masterYok
of the address range of the inputs with cyclical transfer total2 bayt
of the address range of the outputs with cyclical transfer total2 bayt
Electromagnetic compatibility
due to burst according to IEC 61000-4-44 kV main circuits, 2 kV auxiliary circuits, 2 kV IO-Link, 2 kV limit switches, 2 kV line hand-held device
due to conductor-earth surge according to IEC 61000-4-54 kV main circuits, 0,5 kV auxiliary voltage with upstream overvoltage protection
due to conductor-conductor surge according to IEC 61000-4-52 kV main circuits, 0,5 kV auxiliary voltage with upstream overvoltage protection
due to high-frequency radiation according to IEC 61000-4-60.15-80Mhz 10V
field-based interference according to IEC 61000-4-380... 3000 MHz 10V/m
electrostatic discharge according to IEC 61000-4-28 kV
conducted HF interference emissions according to CISPR11150 kHz... 30 MHz Class A
field-bound HF interference emission according to CISPR1130... 1000 MHz Class A
Besleme gerilimi
Supply voltage required Auxiliary voltageVar
Display
number of LEDs3
display version as status display of the input/output link devicegreen/red dual LED
