Siemens 3RA6400-1AB42 için nasıl fiyat teklifi alabilirim?

Siemens 3RA6400-1AB42 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B02F9D0C ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RA6400-1AB42 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RA6400-1AB42 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RA6400-1AB42 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

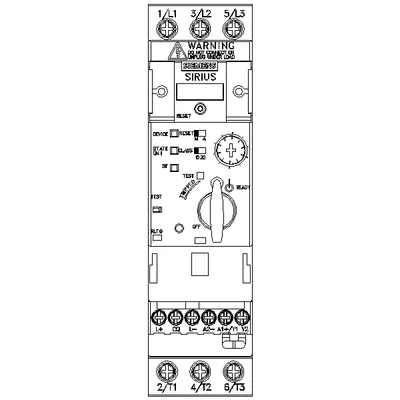

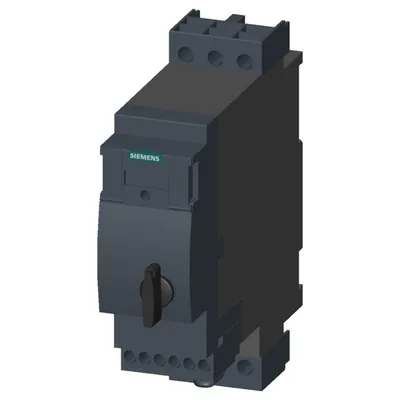

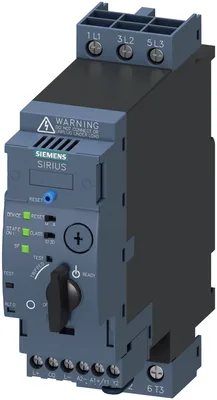

Siemens 3RA6400-1AB42

Possible replacement with ET 200SP motor starter. ET 200SP I/O system required starter direct-on-line starter for IO-Link 690 V 24 V DC 0.1...0.4 A IP20 connection main circuit: screw terminal connection control circuit: screw terminal alternative 3RK1308 or 3RA8 requirement controller such as ET 200SP in use

SiemensMFR # 3RA6400-1AB42SKU # CEY-8EF3B02F9D0C

product brand nameSIRIUS

product designationCompact starter for IO-Link

design of the productdirect starter

product type designation3RA64

product extension auxiliary switchVar

at AC in hot operating state0,01 W

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3RA6400-1AB42

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationCompact starter for IO-Link

design of the productdirect starter

product type designation3RA64

General technical data

product function control circuit interface to parallel wiringYok

product extension auxiliary switchVar

at AC in hot operating state0,01 W

at AC in hot operating state per pole0,01 W

without load current share typical2,9 W

insulation voltage rated value690 V

degree of pollution3

surge voltage resistance rated value6.000 V

degree of protection NEMA ratingother

shock resistancea=60 m/s2 (6g) with 10 ms per 3 shocks in all axes

vibration resistancef = 4... 5,8 Hz, d = 15 mm; f = 5,8... 500 Hz, a = 20 m/s²; 10 cycles

of the main contacts typical10.000.000

of auxiliary contacts typical10.000.000

of the signaling contacts typical10.000.000

at DC-13 at 6 A at 24 V typical30.000

at AC-15 at 6 A at 230 V typical200.000

type of coordinationcontinous operation according to IEC 60947-6-2

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1

Net Weight1,347 kg

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-20... +60 °C

during storage-55... +80 °C

during transport-55... +80 °C

relative humidity during operation10... 90 %

Main circuit

number of poles for main current circuit3

adjustable current response value current of the current-dependent overload release0,1... 0,4 A

formula for making capacity limit current120 x Ie

formula for limit current breaking capacity100 x Ie

at 400 V rated value0,09 kW

at 500 V rated value0,12 kW

at 690 V rated value0,18 kW

operating voltage at AC-3 rated value maximum690 V

at AC at 400 V rated value0,4 A

at AC-3 at 400 V rated value0,4 A

— at 400 V rated value0,3 A

— at 500 V rated value0,32 A

— at 690 V rated value0,35 A

at AC-3 at 400 V rated value0,09 kW

— at 400 V rated value90 W

— at 500 V rated value120 W

— at 690 V rated value180 W

no-load switching frequency3.600 1/h

at AC-41 according to IEC 60947-6-2 maximum750 1/h

at AC-43 according to IEC 60947-6-2 maximum250 1/h

Control circuit/ Control

type of voltageDC

control supply voltage 1 at DC rated value24 V

control supply voltage 1 at DC24 V

at DC maximum2,9 W

Auxiliary circuit

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of NO contacts of instantaneous short-circuit trip unit for signaling contact0

number of CO contacts of the current-dependent overload release for signaling contact0

operational current of auxiliary contacts at AC-12 maximum10 A

operational current of auxiliary contacts at DC-13 at 250 V0,27 A

Protective and monitoring functions

trip classCLASS 10 ve 20 adjustable

at 400 V rated value53 kA

at 500 V rated value3 kA

at 690 V rated value3 kA

UL/CSA ratings

at 480 V rated value0,4 A

at 600 V rated value0,4 A

Short-circuit protection

product function short circuit protectionVar

design of short-circuit protectionelectromagnetic

for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 10 A

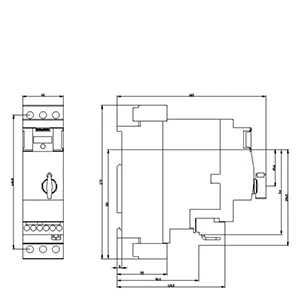

Installation/ mounting/ dimensions

mounting positionany

mounting position recommendeddikey, on yatay standard DIN rail

fastening methodscrew ve snap-on mounting

height170 mm

width45 mm

depth165 mm

Connections/ Terminals

product component removable terminal for main circuitVar

product component removable terminal for auxiliary and control circuitVar

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

solid2x (1,5... 6 mm²), 1x 10 mm²

finely stranded with core end processing2x (1,5... 6 mm²)

— solid0,5... 4 mm², 2x (0,5... 2,5 mm²)

— finely stranded with core end processing0,5... 2,5 mm², 2x (0,5... 1,5 mm²)

for AWG cables for auxiliary contacts2x (20... 14)

Safety related data

with high demand rate according to SN 3192050 %

B10 value with high demand rate according to SN 319203.000.000

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe

Communication/ Protocol

product function bus communicationVar

AS-Interface protocolYok

IO-Link protocolVar

product function control circuit interface with IO linkVar

IO-Link transfer rateCOM2 (38,4 kBaud)

point-to-point cycle time between master and IO-Link device minimum2,5 ms

type of voltage supply via input/output link masterYok

of the address range of the inputs with cyclical transfer total2 bayt

of the address range of the outputs with cyclical transfer total2 bayt

Electromagnetic compatibility

due to burst according to IEC 61000-4-44 kV main circuits, 2 kV auxiliary circuits, 2 kV IO-Link, 2 kV limit switches, 2 kV line hand-held device

due to conductor-earth surge according to IEC 61000-4-54 kV main circuits, 0,5 kV auxiliary voltage with upstream overvoltage protection

due to conductor-conductor surge according to IEC 61000-4-52 kV main circuits, 0,5 kV auxiliary voltage with upstream overvoltage protection

due to high-frequency radiation according to IEC 61000-4-60.15-80Mhz 10V

field-based interference according to IEC 61000-4-380... 3000 MHz 10V/m

electrostatic discharge according to IEC 61000-4-28 kV

conducted HF interference emissions according to CISPR11150 kHz... 30 MHz Class A

field-bound HF interference emission according to CISPR1130... 1000 MHz Class A

Besleme gerilimi

Supply voltage required Auxiliary voltageVar

Display

number of LEDs3
