Siemens 3RA6250-2CB34 için nasıl fiyat teklifi alabilirim?

Siemens 3RA6250-2CB34 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B039533C ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RA6250-2CB34 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RA6250-2CB34 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RA6250-2CB34 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

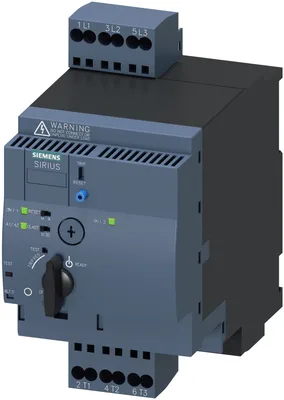

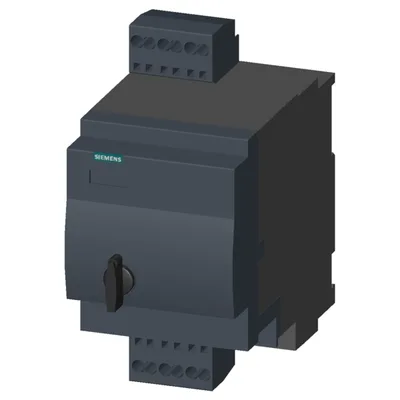

Siemens 3RA6250-2CB34

SIRIUS Compact load feeder Reversing starter 690 V 24 V AC/DC 50...60 Hz 1...4 A IP20 Connection main circuit: Spring-type terminal Connection control circuit: plug-in, without terminals

SiemensMFR # 3RA6250-2CB34SKU # CEY-8EF3B039533C

product brand nameSIRIUS

product designationcompact starter

design of the productreversing starter

product type designation3RA62

product extension auxiliary switchVar

at AC in hot operating state1 W

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SIRIUS Compact load feeder Reversing starter 690 V 24 V AC/DC 50...60 Hz 1...4 A IP20 Connection main circuit: Spring-type terminal Connection control circuit: plug-in, without terminals

Siemens 3RA6250-2CB34

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationcompact starter

design of the productreversing starter

product type designation3RA62

General technical data

product function control circuit interface to parallel wiringVar

product extension auxiliary switchVar

at AC in hot operating state1 W

at AC in hot operating state per pole0,33 W

without load current share typical2,9 W

insulation voltage rated value690 V

degree of pollution3

surge voltage resistance rated value6.000 V

between main and auxiliary circuit400 V

between auxiliary and auxiliary circuit250 V

between control and auxiliary circuit300 V

degree of protection NEMA ratingother

shock resistancea=60 m/s2 (6g) with 10 ms per 3 shocks in all axes

vibration resistancef = 4... 5,8 Hz, d = 15 mm; f = 5,8... 500 Hz, a = 20 m/s²; 10 cycles

of the main contacts typical10.000.000

of auxiliary contacts typical10.000.000

of the signaling contacts typical10.000.000

at DC-13 at 6 A at 24 V typical30.000

at AC-15 at 6 A at 230 V typical200.000

type of coordinationcontinous operation according to IEC 60947-6-2

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1

Net Weight2,387 kg

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-20... +60 °C

during storage-55... +80 °C

during transport-55... +80 °C

relative humidity during operation10... 90 %

Main circuit

number of poles for main current circuit3

adjustable current response value current of the current-dependent overload release1... 4 A

formula for making capacity limit current12 x Ie

formula for limit current breaking capacity10 x Ie

at 400 V rated value1,5 kW

at 500 V rated value2,2 kW

at 690 V rated value3 kW

operating voltage at AC-3 rated value maximum690 V

at AC at 400 V rated value4 A

at AC-3 at 400 V rated value4 A

— at 400 V rated value3,6 A

— at 500 V rated value3,9 A

— at 690 V rated value3,8 A

at AC-3 at 400 V rated value1,5 kW

— at 400 V rated value1.500 W

— at 500 V rated value2.200 W

— at 690 V rated value3.000 W

no-load switching frequency3.600 1/h

at AC-41 according to IEC 60947-6-2 maximum750 1/h

at AC-43 according to IEC 60947-6-2 maximum250 1/h

Control circuit/ Control

type of voltageAC/DC

at 50 Hz rated value24 V

at 50 Hz24 V

at 60 Hz rated value24 V

at 60 Hz24 V

1 rated value50 Hz

2 rated value60 Hz

control supply voltage 1 at DC rated value24 V

control supply voltage 1 at DC24 V

at AC maximum2,8 W

at DC maximum2,9 W

Auxiliary circuit

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts2

number of NO contacts of instantaneous short-circuit trip unit for signaling contact1

number of CO contacts of the current-dependent overload release for signaling contact1

operational current of auxiliary contacts at AC-12 maximum10 A

operational current of auxiliary contacts at DC-13 at 250 V0,27 A

Protective and monitoring functions

trip classCLASS 10 ve 20 adjustable

at 400 V rated value53 kA

at 500 V rated value3 kA

at 690 V rated value3 kA

UL/CSA ratings

at 480 V rated value4 A

at 600 V rated value4 A

at 200/208 V rated value0,75 hp

at 220/230 V rated value0,75 hp

at 460/480 V rated value2 hp

at 575/600 V rated value3 hp

contact rating of auxiliary contacts according to ULcontacts 21-22, 13-14, 43-44 Q600 / A600, contacts 77-78 R300 / B300, contacts 95-96-98 R300 / D300

Short-circuit protection

product function short circuit protectionVar

design of short-circuit protectionelectromagnetic

for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 10 A

for short-circuit protection of the signaling switch of the short-circuit release required6A gL/gG/400V

for short-circuit protection of the signaling switch of the overload release required4A gL/gG/400V

Installation/ mounting/ dimensions

mounting positionany

mounting position recommendeddikey, on yatay standard DIN rail

fastening methodscrew ve snap-on mounting

height191 mm

width90 mm

depth165 mm

Connections/ Terminals

product component removable terminal for main circuitVar

product component removable terminal for auxiliary and control circuitVar

for main current circuitspring-loaded terminals

for auxiliary and control circuitplug-in without terminals

solid2x (1,5... 6 mm²), 1x 10 mm²

finely stranded with core end processing2x (1,5... 6 mm²)

finely stranded without core end processing2x (1,5... 6 mm²)

— solid2x (0,25... 1,5 mm²)

— finely stranded with core end processing2x (0,25... 1,5 mm²)

— finely stranded without core end processing2x (0,25... 1,5 mm²)

for AWG cables for auxiliary contacts2x (24... 16)

Safety related data

with low demand rate according to SN 3192040 %

with high demand rate according to SN 3192050 %

B10 value with high demand rate according to SN 319203.000.000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

IEC 61508

T1 value for proof test interval or service life according to IEC 6150820 a

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe

Communication/ Protocol

product function bus communicationYok

AS-Interface protocolYok

IO-Link protocolYok

product function control circuit interface with IO linkYok

Electromagnetic compatibility

due to burst according to IEC 61000-4-44 kV main contacts, 2 kV auxiliary contacts

due to conductor-earth surge according to IEC 61000-4-54 kV main contacts, 2 kV auxiliary contacts

due to conductor-conductor surge according to IEC 61000-4-52 kV main contacts, 1 kV auxiliary contacts

due to high-frequency radiation according to IEC 61000-4-60.15-80Mhz 10V

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-28 kV

conducted HF interference emissions according to CISPR11150 kHz... 30 MHz Class A

field-bound HF interference emission according to CISPR1130... 1000 MHz Class A

Besleme gerilimi

Supply voltage required Auxiliary voltageYok

Display

number of LEDs3
