Siemens 3RA2316-8XB30-1TP3

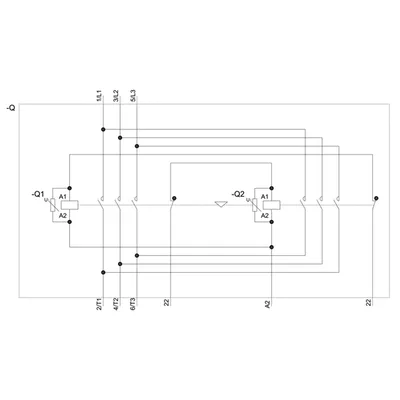

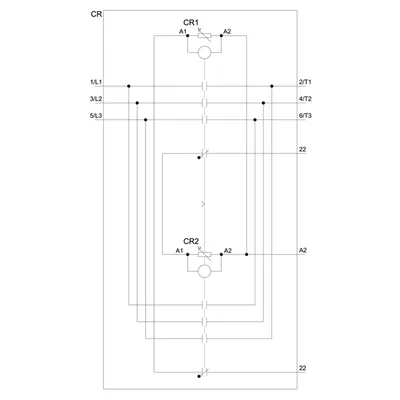

reversing kontaktör assembly, AC-3e/AC-3, 9 A, 4 kW / 400 V, 3-pole, 230 V AC, 50/60 Hz, ile dahili varistor, vidalı klemens, electrical ve mechanical interlock
product brand nameSIRIUS
product designationReversing contactor assembly
product type designation3RA23
1 of the supplied contactor3RT2016-1TP02-0RA0
2 of the supplied contactor3RT2016-1TP02-0RA0
of the supplied RH assembly kit3RA2913-2AA1
Ürün Hakkında
reversing kontaktör assembly, AC-3e/AC-3, 9 A, 4 kW / 400 V, 3-pole, 230 V AC, 50/60 Hz, ile dahili varistor, vidalı klemens, electrical ve mechanical interlock
Siemens 3RA2316-8XB30-1TP3
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationReversing contactor assembly
product type designation3RA23
1 of the supplied contactor3RT2016-1TP02-0RA0
2 of the supplied contactor3RT2016-1TP02-0RA0
of the supplied RH assembly kit3RA2913-2AA1
General technical data
size of contactorS00
product extension auxiliary switchVar
at AC6,7 g / 5 ms, 4,2 g / 10 ms
at DC6,7 g / 5 ms, 4,2 g / 10 ms
at AC10,5 g / 5 ms, 6,6 g / 10 ms
at DC10,5 g / 5 ms, 6,6 g / 10 ms
of contactor typical3.000.000
of the contactor with added auxiliary switch block typical3.000.000
reference code according to IEC 81346-2Q
Substance Prohibitance (day/month/year)10/01/2009
Net Weight0,453 kg
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +70 °C
during storage-55... +80 °C
Main circuit
number of poles for main current circuit3
number of NO contacts for main contacts3
number of NC contacts for main contacts0
at AC-3 rated value maximum690 V
at AC-3e rated value maximum690 V
— at 400 V rated value7,7 A
— at 500 V rated value7,7 A
— at 690 V rated value6,7 A
— at 400 V rated value7,7 A
— at 500 V rated value7,7 A
— at 690 V rated value6,7 A
— at 400 V rated value4 kW
— at 500 V rated value4 kW
— at 690 V rated value4,7 kW
— at 400 V rated value4 kW
— at 690 V rated value5,5 kW
at AC-4 at 400 V rated value1,7 kW
at AC-3 maximum642 1/h
at AC-3e maximum750 1/h
Control circuit/ Control
type of voltage of the control supply voltageAC
at 50 Hz218... 237 V
at 60 Hz218... 237 V
at 50 Hz0,95... 1,03
design of the surge suppressorwith varistor
at 50 Hz27 V·A
at 50 Hz4,2 V·A
Auxiliary circuit
contact reliability of auxiliary contacts< 1 error per 100 million operating cycles
UL/CSA ratings
at 480 V rated value6,5 A
at 600 V rated value7,7 A
at 200/208 V rated value1,7 hp
at 220/230 V rated value2,5 hp
at 460/480 V rated value4,3 hp
at 575/600 V rated value6,4 hp
contact rating of auxiliary contacts according to ULA600 / Q600
Short-circuit protection
— with type of coordination 1 requiredgG NH 3NA, DIAZED 5SB, NEOZED 5SE: 35 A
— with type of coordination 2 requiredgG NH 3NA, DIAZED 5SB, NEOZED 5SE: 20 A
for short-circuit protection of the auxiliary switch requiredfuse gG: 10 A
Installation/ mounting/ dimensions
mounting position+/-180° rotation possible on dikey mounting surface; can be tilted forward ve backward by +/- 22,5° on dikey mounting surface
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail
height68 mm
width90 mm
depth73 mm
— forwards6 mm
— backwards0 mm
— upwards6 mm
— downwards6 mm
— at the side0 mm
— forwards6 mm
— backwards0 mm
— upwards6 mm
— at the side6 mm
— downwards6 mm
— forwards6 mm
— backwards0 mm
— upwards6 mm
— downwards6 mm
— at the side6 mm
Connections/ Terminals
for main current circuitscrew-type terminals
for auxiliary and control circuitscrew-type terminals
at contactor for auxiliary contactsScrew-type terminals
of magnet coilscrew terminal
solid2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²), 2x 4 mm²
solid or stranded2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²), 2x (0,5... 4 mm²)
finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
— solid or stranded2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
for AWG cables for auxiliary contacts2x (20... 16), 2x (18... 14)
Safety related data
product function suitable for safety functionVar
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
Communication/ Protocol
product function bus communicationVar
protocol is supported AS-Interface protocolYok
product function control circuit interface with IO linkYok
Aksesuarlar 74
Siemens 3RA2316-8XB30-1TP3 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RH2911-1FA22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2921-1XA11-0MS0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1XA40-0MA0-Z | Aksesuar | |
| 3RH2911-1XA40-0MA0-Z | Aksesuar | |
| 3RH2911-1HA01-Z | Aksesuar | |
| 3RH2911-1HA01-Z | Aksesuar | |
| 3RH2911-1HA01-Z | Aksesuar | |
| 3RH2911-1FB22-Z | Aksesuar | |
| 3RH2911-1FB22-Z | Aksesuar | |
| 3RH2911-1FB11-Z | Aksesuar | |
| 3RH2911-1FB11-Z | Aksesuar | |
| 3RH2911-1HA10-Z | Aksesuar | |
| 3RH2911-1HA12-Z | Aksesuar | |
| 3RH2911-1HA10-Z | Aksesuar | |
| 3RH2911-1HA12-Z | Aksesuar | |
| 3RH2911-1FA22-Z | Aksesuar | |
| 3RH2911-1HA20-Z | Aksesuar | |
| 3RH2911-1HA12-Z | Aksesuar | |
| 3RH2911-1HA02-Z | Aksesuar | |
| 3RH2911-1DA02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2921-1DA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2921-1DA02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2921-1DA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1NF20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1NF11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1NF02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1MA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1MA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1LA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1LA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA31 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA12 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1DA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA01 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1FB22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1FB11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1FA40 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1XA31-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1BA10 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1BA01 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1AA10 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1AA01 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2916-1FA22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1FC22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1DA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1FA22-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA22-Z | Aksesuar | |
| 3RH2911-1HA20-Z | Aksesuar | |
| 3RH2911-1HA11-Z | Aksesuar | |
| 3RH2911-1HA02-Z | Aksesuar | |
| 3RH2911-1HA22-Z | Aksesuar | |
| 3RH2911-1HA20-Z | Aksesuar | |
| 3RH2911-1HA11-Z | Aksesuar | |
| 3RH2911-1HA02-Z | Aksesuar | |
| 3RH2911-1FA40-Z | Aksesuar | |
| 3RH2911-1FA40-Z | Aksesuar | |
| 3RH2911-1FA40-Z | Aksesuar | |
| 3RH2911-1LA20-Z | Aksesuar | |
| 3RH2911-1LA20-Z | Aksesuar | |
| 3RH2911-1LA20-Z | Aksesuar | |
| 3RH2911-1LA20-Z | Aksesuar | |
| 3RH2911-1AA01-Z | Aksesuar | |
| 3RH2911-1AA10-Z | Aksesuar | |
| 3RH2916-1XA22-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1YA21-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1XA40-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1XA22-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1NE22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1MA02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RA2913-2AA1 | Bileşen · Wiring modules, connectors and kits · wiring kits |
