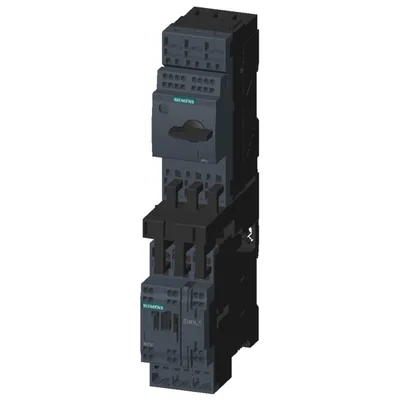

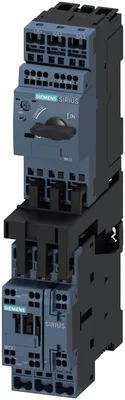

Siemens 3RA2125-4BE27-0FB4
Load feeder fuseless, Direct-on-line starting 400 V AC, boyut S0 13...20 A 24 V DC Spring-type klemens için installation on standart montaj rail (also fulfills tip of coordination 1) tip of coordination 2, Iq = 150 kA 1 NO+1 NC (kontaktör) ile diode combination plugged in at the ön
product brand nameSIRIUS
product designationDirect (on-line) starter
design of the productfor DIN-rail veya screw mounting
product type designation3RA21
of the supplied contactor3RT2027-2FB40
of the supplied circuit-breakers3RV2021-4BA25
Ürün Hakkında
Load feeder fuseless, Direct-on-line starting 400 V AC, boyut S0 13...20 A 24 V DC Spring-type klemens için installation on standart montaj rail (also fulfills tip of coordination 1) tip of coordination 2, Iq = 150 kA 1 NO+1 NC (kontaktör) ile diode combination plugged in at the ön
Siemens 3RA2125-4BE27-0FB4
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationDirect (on-line) starter
design of the productfor DIN-rail veya screw mounting
product type designation3RA21
of the supplied contactor3RT2027-2FB40
of the supplied circuit-breakers3RV2021-4BA25
of the supplied link module3RA2921-2AA00
General technical data
size of the circuit-breakerS0
size of load feederS0
at AC in hot operating state per pole5,8 W
without load current share typical5,9 W
type of calculation of power loss current-dependentquadratic
insulation voltage with degree of pollution 3 at AC rated value690 V
surge voltage resistance rated value6 kV
degree of protection NEMA ratingother
shock resistance according to IEC 60068-2-276 g / 11 ms
mechanical service life (operating cycles) of contactor typical10.000.000
type of coordination2
reference code according to IEC 81346-2:2019Q
Net Weight1,05 kg
Ambient conditions
during operation-20... +60 °C
during storage-50... +80 °C
during transport-50... +80 °C
temperature compensation-20... +60 °C
relative humidity during operation10... 95 %
Main circuit
number of poles for main current circuit3
design of the switching contactelectromechanical
adjustable current response value current of the current-dependent overload release13... 20 A
rated value690 V
at AC-3 rated value maximum690 V
at AC-3e rated value maximum690 V
operating frequency rated value50... 60 Hz
at AC-3 at 400 V rated value20 A
at AC-3e at 400 V rated value20 A
— at 400 V rated value7.500 W
— at 400 V rated value7.500 W
Control circuit/ Control
type of voltage of the control supply voltageDC
control supply voltage at DC rated value24 V
holding power of magnet coil at DC5,9 W
Auxiliary circuit
product extension auxiliary switchVar
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
Protective and monitoring functions
trip classCLASS 10
design of the overload releasethermal (bimetallic)
response value current of instantaneous short-circuit trip unit260 A
UL/CSA ratings
at 480 V rated value20 A
at 600 V rated value20 A
— at 110/120 V rated value1,5 hp
— at 230 V rated value3 hp
— at 200/208 V rated value7,5 hp
— at 220/230 V rated value7,5 hp
— at 460/480 V rated value15 hp
Short-circuit protection
product function short circuit protectionVar
design of the short-circuit tripmagnetic
at 400 V according to IEC 60947-4-1 rated value150.000 A

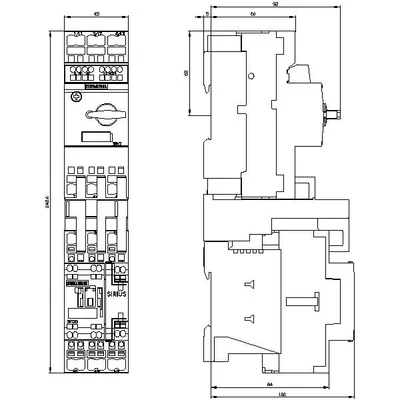

Installation/ mounting/ dimensions
mounting positiondikey
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail
height243 mm
width45 mm
depth107 mm
— forwards20 mm
— backwards0 mm
— upwards50 mm
— at the side20 mm
— downwards10 mm
— forwards20 mm
— backwards0 mm
— upwards50 mm
— downwards10 mm
— at the side20 mm
Connections/ Terminals
for main current circuitspring-loaded terminals
for auxiliary and control circuitspring-loaded terminals
Safety related data
product function suitable for safety functionVar
Electrical Safety
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
Communication/ Protocol
PROFINET IO protocolYok
PROFIsafe protocolYok
protocol is supported AS-Interface protocolYok
Aksesuarlar 6
Siemens 3RA2125-4BE27-0FB4 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RV2901-2E | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-2F | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-2A | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2902-2AP0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-2DP0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RH2921-2DA11 | Aksesuar · Auxiliary switch · auxiliary switches |
