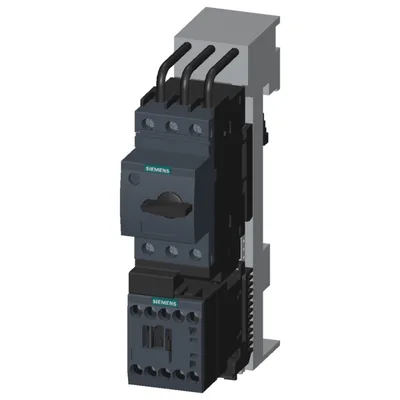

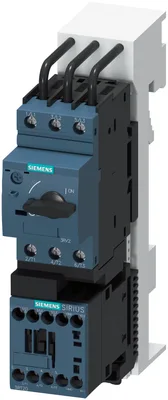

Siemens 3RA2110-1CD15-1BB4
Load feeder fuseless, Direct-on-line starting 400 V AC, Size S00 1.80...2.50 A 24 V DC screw terminal for 60 mm busbar systems (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NO (contactor)
product brand nameSIRIUS
product designationDirect (on-line) starter
design of the productfor 60 mm busbars
product type designation3RA21
of the supplied contactor3RT2015-1BB41
of the supplied circuit-breakers3RV2011-1CA10
Ürün Hakkında
Load feeder fuseless, Direct-on-line starting 400 V AC, Size S00 1.80...2.50 A 24 V DC screw terminal for 60 mm busbar systems (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NO (contactor)
Siemens 3RA2110-1CD15-1BB4
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationDirect (on-line) starter
design of the productfor 60 mm busbars
product type designation3RA21
of the supplied contactor3RT2015-1BB41
of the supplied circuit-breakers3RV2011-1CA10
of the supplied busbar adapter8US1251-5DS10
of the supplied link module3RA1921-1DA00
General technical data
size of the circuit-breakerS00
size of load feederS00
at AC in hot operating state per pole2,6 W
without load current share typical4 W
type of calculation of power loss current-dependentquadratic
insulation voltage with degree of pollution 3 at AC rated value690 V
surge voltage resistance rated value6 kV
degree of protection NEMA ratingother
shock resistance according to IEC 60068-2-276 g / 11 ms
mechanical service life (operating cycles) of contactor typical30.000.000
type of coordination2
reference code according to IEC 81346-2:2019Q
Substance Prohibitance (day/month/year)10/01/2009
Net Weight0,811 kg
Ambient conditions
during operation-20... +60 °C
during storage-50... +80 °C
during transport-50... +80 °C
temperature compensation-20... +60 °C
relative humidity during operation10... 95 %
Main circuit
number of poles for main current circuit3
design of the switching contactelectromechanical
adjustable current response value current of the current-dependent overload release1,8... 2,5 A
rated value690 V
at AC-3 rated value maximum690 V
at AC-3e rated value maximum690 V
operating frequency rated value50... 60 Hz
at AC-3 at 400 V rated value2,5 A
at AC-3e at 400 V rated value2,5 A
— at 400 V rated value750 W
— at 400 V rated value750 W
Control circuit/ Control
type of voltage of the control supply voltageDC
control supply voltage at DC rated value24 V
holding power of magnet coil at DC4 W
Auxiliary circuit
product extension auxiliary switchVar
Protective and monitoring functions
trip classCLASS 10
design of the overload releasethermal (bimetallic)
response value current of instantaneous short-circuit trip unit33 A
UL/CSA ratings
at 480 V rated value2,5 A
at 600 V rated value2,5 A
— at 110/120 V rated value0,1 hp
— at 230 V rated value0,25 hp
— at 200/208 V rated value0,5 hp
— at 220/230 V rated value0,8 hp
— at 460/480 V rated value1,5 hp
— at 575/600 V rated value2 hp
Short-circuit protection
product function short circuit protectionVar
design of the short-circuit tripmagnetic
at 400 V according to IEC 60947-4-1 rated value150.000 A

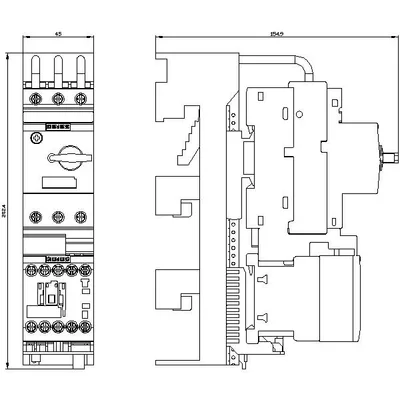

Installation/ mounting/ dimensions
mounting positiondikey
fastening methodfor snapping onto 60 mm busbar systems
height203 mm
width45 mm
depth155 mm
— forwards20 mm
— backwards0 mm
— upwards50 mm
— at the side20 mm
— downwards10 mm
— forwards20 mm
— backwards0 mm
— upwards50 mm
— downwards10 mm
— at the side20 mm
Connections/ Terminals
for main current circuitscrew-type terminals
for auxiliary and control circuitscrew-type terminals
Safety related data
product function suitable for safety functionVar
Electrical Safety
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
Communication/ Protocol
PROFINET IO protocolYok
PROFIsafe protocolYok
protocol is supported AS-Interface protocolYok
Aksesuarlar 10
Siemens 3RA2110-1CD15-1BB4 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RV2901-1D | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1E | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2901-1A | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2902-1AP0 | Aksesuar · Auxiliary release · undervoltage releases | |
| 3RV2902-1DP0 | Aksesuar · Auxiliary release · shunt releases | |
| 3RT1900-4RE01 | Aksesuar · Miscellaneous accessories · plugs | |
| 3RH2911-1BA10 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1DA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1MA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1MA20 | Aksesuar · Auxiliary switch · auxiliary switches |
