Siemens 3NP1164-1BC20

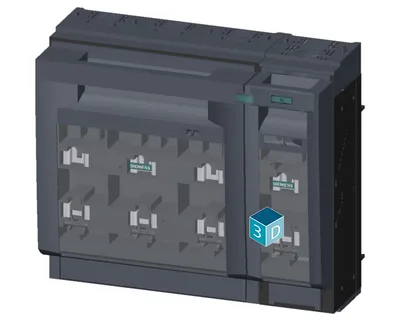

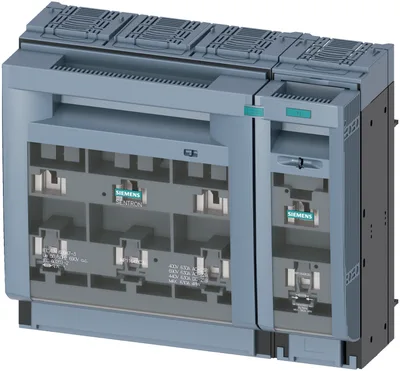

SENTRON, sigorta anahtar disconnector 3NP1, 4-pole, NH3, 630 A, için 60mm 8US bara system, box klemens, kapak level 32/70 mm kapak level 32/70 mm
product designationFuse switch disconnector
busbar designbusbar thickness 5 veya 10 mm
design of the safety monitoringWithout
design of the load switch strip formYok
number of poles4
type of deviceFor 60 mm 8US busbar system
Ürün Hakkında
SENTRON, sigorta anahtar disconnector 3NP1, 4-pole, NH3, 630 A, için 60mm 8US bara system, box klemens, kapak level 32/70 mm kapak level 32/70 mm
Siemens 3NP1164-1BC20
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product designationFuse switch disconnector
busbar designbusbar thickness 5 veya 10 mm
design of the safety monitoringWithout
design of the load switch strip formYok
type of the driving mechanism motor driveYok
General technical data
number of poles4
type of deviceFor 60 mm 8US busbar system
size of disconnecting link3 ve 2
size of fuse linkNH2, NH3
let-through current with closed switch maximum60 kA
mechanical service life (operating cycles) typical1.000
I2t value with closed switch maximum5.400 kA²·s
at AC-22 B0,65
at AC-23 B0,35
with capacitive load-0.25
fuse systemLV HRC fuse
degree of pollution3
Voltage
rated value690 V
with degree of pollution 3 at AC rated value690 V
with degree of pollution 2 at AC rated value1.000 V
power factor at AC-21 B0,95
surge voltage resistance rated value8 kV
— at 35 °C rated value630 A
— at 40 °C rated value610 A
— at 45 °C rated value575 A
— at 50 °C rated value555 A
— at 55 °C rated value530 A
— at AC-21 B at 240 V rated value630 A
— at AC-21 B at 400 V rated value630 A
— at AC-21 B at 500 V rated value630 A
— at AC-21 B at 690 V rated value630 A
— at AC-22 B at 240 V rated value630 A
— at AC-22 B at 400 V rated value630 A
— at AC-22 B at 500 V rated value630 A
— at AC-22 B at 690 V rated value500 A
— at AC-23 B at 690 V rated value200 A
— at AC-23 B at 500 V rated value500 A
— at AC-23 B at 400 V rated value630 A
— at AC-23 B at 240 V rated value630 A
— at DC-21 B at 120 V rated value630 A
— at DC-21 B at 240 V rated value630 A
— at DC-21 B at 440 V rated value630 A
— at DC-22 B at 120 V rated value630 A
— at DC-22 B at 240 V rated value630 A
— at DC-22 B at 440 V rated value500 A
— at DC-23 B at 120 V rated value400 A
— at DC-23 B at 240 V rated value400 A
— at DC-23 B at 440 V rated value250 A
let-through current with high-speed activation maximum50 kA
at AC rated value maximum690 V
at DC rated value440 V
at DC rated value maximum440 V
Protection class
with closed switch with cover or cable lug coverIP40
with closed switch without cover or cable lug coverIP30
openIP20
Dissipation
with conventional rated thermal current without fuse per pole30 W
with conventional rated thermal current without fuse per device120 W
for rated value of the current at AC in hot operating state per pole36 W
of the fuse per fuse maximum48 W
Main circuit
rated value630 A
with capacitive load at 400 V rated value72 A
with capacitive load at 500 V rated value55 A
Auxiliary circuit
number of CO contacts for auxiliary contacts0
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
Suitability
suitability for use main switchYok
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchYok
suitability for use maintenance/repair switchVar
Product details
product function phase failure monitoringYok
undervoltage releaseYok
undervoltage release with leading contactYok
product feature sealableVar
product extension auxiliary switchVar
product extension optional locking capabilityVar
product extension optional phase failure monitoringVar
product extension optional fuse monitoringVar
product extension optional voltage triggerYok
product extension optional overvoltage protection monitoringVar
Product function
product function overvoltage protection monitoringYok
Short circuit
at AC at 240 V with high-speed activation rated value50 kA
at AC at 500 V with high-speed activation rated value50 kA
at AC at 690 V with high-speed activation rated value50 kA
with closed switch at AC at 240 V rated value100 kA
with closed switch at AC at 500 V rated value100 kA
with closed switch at AC at 690 V rated value100 kA
Connections
arrangement of electrical connectors for main current circuitother
solid or stranded minimum50 mm²
solid or stranded maximum300 mm²
finely stranded with core end processing minimum120 mm²
finely stranded with core end processing maximum240 mm²
stranded minimum50 mm²
stranded maximum300 mm²
minimum10 N·m
maximum25 N·m
type of connectable conductor cross-sections of the laminated conductors maximum32 x 20 mm
type of connection technologyBox terminal

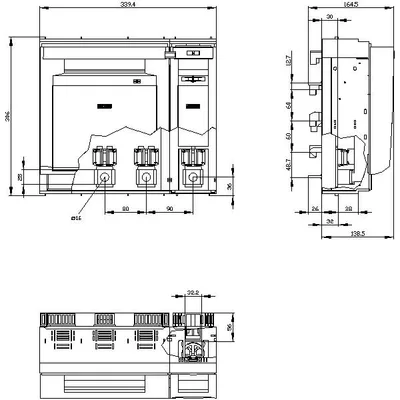

Mechanical Design
height306 mm
width339 mm
minimum12 mm
maximum30 mm
depth164,5 mm
fastening methodbusbar
floor mountingYok
rail mountingVar
mounting positionyatay/dikey
busbar center-to-center spacing60 mm
Net Weight7,845 kg
Environmental conditions
minimum-25 °C
maximum55 °C
minimum-50 °C
maximum80 °C
Certificates
reference code according to IEC 81346-2Q
Ürün bilgileri
EAN4001869567259
Ürün ailesiSENTRON 3NP1 Fuse Switch Disconnectors
Yaşam döngüsü durumuAktif
Gümrük tarife kodu85365080
Teslimat ve lojistik
Menşe ülkeCzech Republic
Teslim süresi15 gün
İade edilebilirEvet
Net ağırlık7,845 Kg
Paket ölçüleri (U x G x Y)220 x 118 x 108 MM
Standart paket adedi1 adet
Minimum sipariş adedi1
Tehlikeli maddeHayır
İhracat kontrolüAL : N / ECCN : EAR99
Çevre ve uyumluluk
RoHS uyumuSince: 15-10-17
WEEE kategorisi5
REACH bilgisiLead CAS-No. 7439-92-1 > 0,1 % (w / w)
Siemens kataloğu
Ürün grubu5863
Katalog kimliğiLV10
Grup koduP360
Ürün sınıfıStraightforward, can be reused over the short term
Aksesuarlar 25
Siemens 3NP1164-1BC20 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3NP1900-1EF00 | Aksesuar | |
| 3NP1953-1BG40 | Aksesuar | |
| 3NP1940-1FB00 | Aksesuar | |
| 3NP1940-1FA00 | Aksesuar | |
| 3NP1900-1HA00 | Aksesuar | |
| 3NG1402 | Aksesuar · NH fuse system | |
| 3NP1964-1MA20 | Aksesuar | |
| 3NA6352-4KK01 | Seçmeli zorunlu ürün | |
| 3NA3365-0MJ | Seçmeli zorunlu ürün | |
| 3ND2360 | Seçmeli zorunlu ürün | |
| 3ND2354 | Seçmeli zorunlu ürün | |
| 3ND2352 | Seçmeli zorunlu ürün | |
| 3ND1365 | Seçmeli zorunlu ürün | |
| 3NA3365-6 | Seçmeli zorunlu ürün | |
| 3NA3365 | Seçmeli zorunlu ürün | |
| 3NA3362-6 | Seçmeli zorunlu ürün | |
| 3NA3362 | Seçmeli zorunlu ürün | |
| 3NA3360-6 | Seçmeli zorunlu ürün | |
| 3NA3360 | Seçmeli zorunlu ürün | |
| 3NA3354 | Seçmeli zorunlu ürün | |
| 3NA3352-6 | Seçmeli zorunlu ürün | |
| 3NA3352 | Seçmeli zorunlu ürün | |
| 3NA3354-6 | Seçmeli zorunlu ürün | |
| 3NA6354-4KK01 | Seçmeli zorunlu ürün | |
| 3NA6360-4KK01 | Seçmeli zorunlu ürün |
