Siemens 3NP1163-1DA23

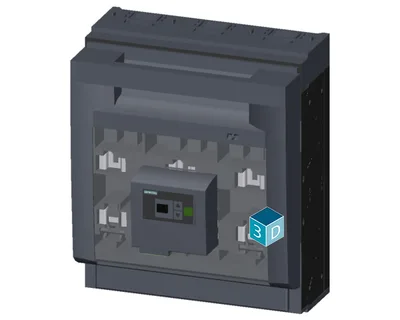

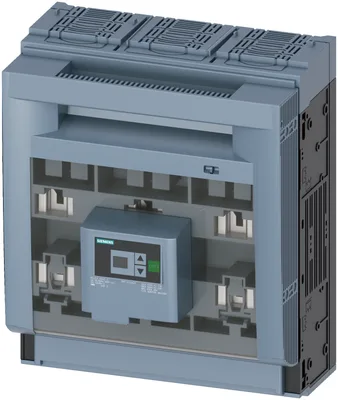

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH3, 630 A, for assembly and installation on mounting plate, Box terminal, Fuse monitoring: electronic EFM20, Cover level 70 mm
product designationFuse switch disconnector
design of the safety monitoringelectronic EFM 20
design of the load switch strip formYok
number of poles3
size of disconnecting link3 ve 2
size of fuse linkNH2, NH3
Ürün Hakkında
SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH3, 630 A, for assembly and installation on mounting plate, Box terminal, Fuse monitoring: electronic EFM20, Cover level 70 mm
Siemens 3NP1163-1DA23
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product designationFuse switch disconnector
design of the safety monitoringelectronic EFM 20
design of the load switch strip formYok
type of the driving mechanism motor driveYok
General technical data
number of poles3
type of deviceFor assembly ve installation on mounting plate
size of disconnecting link3 ve 2
size of fuse linkNH2, NH3
let-through current with closed switch maximum60 kA
mechanical service life (operating cycles) typical1.000
I2t value with closed switch maximum5.400 kA²·s
at AC-22 B0,65
at AC-23 B0,35
with capacitive load-0.25
fuse systemLV HRC fuse
degree of pollution2
Voltage
rated value690 V
with degree of pollution 3 at AC rated value690 V
with degree of pollution 2 at AC rated value1.000 V
power factor at AC-21 B0,95
surge voltage resistance rated value8 kV
— at 35 °C rated value630 A
— at 40 °C rated value610 A
— at 45 °C rated value575 A
— at 50 °C rated value555 A
— at 55 °C rated value530 A
— at AC-21 B at 240 V rated value630 A
— at AC-21 B at 400 V rated value630 A
— at AC-21 B at 500 V rated value630 A
— at AC-21 B at 690 V rated value630 A
— at AC-22 B at 240 V rated value630 A
— at AC-22 B at 400 V rated value630 A
— at AC-22 B at 500 V rated value630 A
— at AC-22 B at 690 V rated value500 A
— at AC-23 B at 690 V rated value200 A
— at AC-23 B at 500 V rated value500 A
— at AC-23 B at 400 V rated value630 A
— at AC-23 B at 240 V rated value630 A
let-through current with high-speed activation maximum50 kA
at AC rated value minimum230 V
at AC rated value maximum690 V
Protection class
with closed switch with cover or cable lug coverIP40
with closed switch without cover or cable lug coverIP30
openIP20
Dissipation
with conventional rated thermal current without fuse per pole30 W
with conventional rated thermal current without fuse per device90 W
for rated value of the current at AC in hot operating state per pole36 W
of the fuse per fuse maximum48 W
Main circuit
rated value630 A
with capacitive load at 400 V rated value72 A
with capacitive load at 500 V rated value55 A
Auxiliary circuit
number of CO contacts for auxiliary contacts0
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
Suitability
suitability for use main switchYok
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchYok
suitability for use maintenance/repair switchVar
Product details
product function phase failure monitoringVar
undervoltage releaseYok
undervoltage release with leading contactYok
product feature sealableVar
product extension auxiliary switchVar
product extension optional locking capabilityVar
product extension optional voltage triggerYok
Product function
product function overvoltage protection monitoringVar
Short circuit
at AC at 240 V with high-speed activation rated value50 kA
at AC at 500 V with high-speed activation rated value50 kA
at AC at 690 V with high-speed activation rated value50 kA
with closed switch at AC at 240 V rated value100 kA
with closed switch at AC at 500 V rated value100 kA
with closed switch at AC at 690 V rated value100 kA
Connections
arrangement of electrical connectors for main current circuitother
solid or stranded minimum50 mm²
solid or stranded maximum300 mm²
finely stranded with core end processing minimum120 mm²
finely stranded with core end processing maximum240 mm²
stranded minimum50 mm²
stranded maximum300 mm²
minimum25 N·m
maximum25 N·m
type of connectable conductor cross-sections of the laminated conductors maximum32 x 20 mm
type of connection technologyBox terminal

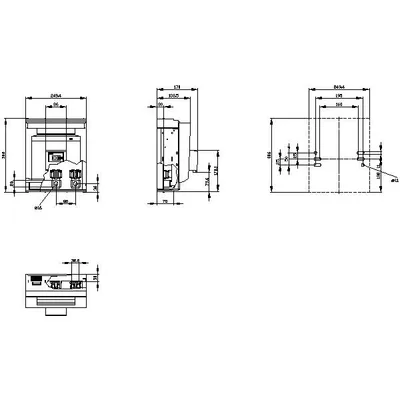

Mechanical Design
height306 mm
width249,4 mm
depth169,7 mm
fastening methodmounting plate
floor mountingVar
rail mountingYok
mounting positionyatay/dikey
Net Weight5,552 kg
Environmental conditions
minimum-25 °C
maximum55 °C
minimum-50 °C
maximum80 °C
Certificates
reference code according to IEC 81346-2Q
