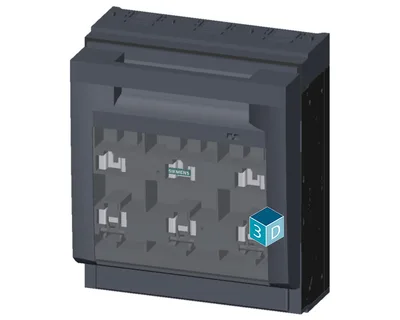

Siemens 3NP1163-1DA10

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 3NP1163-1DA10

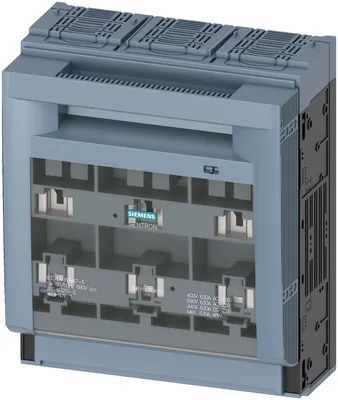

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH3, 630 A, for assembly and installation on mounting plate, flat terminal, cover level 70 mm

SiemensMFR # 3NP1163-1DA10SKU # CEY-8EF3B030892C
product designationFuse switch disconnector
design of the safety monitoringWithout
design of the load switch strip formYok
number of poles3
size of disconnecting link3 ve 2
size of fuse linkNH2, NH3
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH3, 630 A, for assembly and installation on mounting plate, flat terminal, cover level 70 mm

Siemens 3NP1163-1DA10

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Model
product designationFuse switch disconnector
design of the safety monitoringWithout
design of the load switch strip formYok
type of the driving mechanism motor driveYok
General technical data
number of poles3
type of deviceFor assembly ve installation on mounting plate
size of disconnecting link3 ve 2
size of fuse linkNH2, NH3
let-through current with closed switch maximum60 kA
mechanical service life (operating cycles) typical1.000
I2t value with closed switch maximum5.400 kA²·s
at AC-22 B0,65
at AC-23 B0,35
with capacitive load-0.25
fuse systemLV HRC fuse
degree of pollution3
Voltage
rated value690 V
with degree of pollution 3 at AC rated value690 V
with degree of pollution 2 at AC rated value1.000 V
power factor at AC-21 B0,95
surge voltage resistance rated value8 kV
— at 35 °C rated value630 A
— at 40 °C rated value610 A
— at 45 °C rated value575 A
— at 50 °C rated value555 A
— at 55 °C rated value530 A
— at AC-21 B at 240 V rated value630 A
— at AC-21 B at 400 V rated value630 A
— at AC-21 B at 500 V rated value630 A
— at AC-21 B at 690 V rated value630 A
— at AC-22 B at 240 V rated value630 A
— at AC-22 B at 400 V rated value630 A
— at AC-22 B at 500 V rated value630 A
— at AC-22 B at 690 V rated value500 A
— at AC-23 B at 690 V rated value200 A
— at AC-23 B at 500 V rated value500 A
— at AC-23 B at 400 V rated value630 A
— at AC-23 B at 240 V rated value630 A
— at DC-21 B at 120 V rated value630 A
— at DC-21 B at 240 V rated value630 A
— at DC-21 B at 440 V rated value630 A
— at DC-22 B at 120 V rated value630 A
— at DC-22 B at 240 V rated value630 A
— at DC-22 B at 440 V rated value500 A
— at DC-23 B at 120 V rated value400 A
— at DC-23 B at 240 V rated value400 A
— at DC-23 B at 440 V rated value250 A
let-through current with high-speed activation maximum50 kA
at AC rated value maximum690 V
at DC rated value440 V
at DC rated value maximum440 V
Protection class
with closed switch with cover or cable lug coverIP40
with closed switch without cover or cable lug coverIP30
openIP20
Dissipation
with conventional rated thermal current without fuse per pole30 W
with conventional rated thermal current without fuse per device90 W
for rated value of the current at AC in hot operating state per pole36 W
of the fuse per fuse maximum48 W
Main circuit
rated value630 A
with capacitive load at 400 V rated value72 A
with capacitive load at 500 V rated value55 A
Auxiliary circuit
number of CO contacts for auxiliary contacts0
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
Suitability
suitability for use main switchYok
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchYok
suitability for use maintenance/repair switchVar
Product details
product function phase failure monitoringYok
undervoltage releaseYok
undervoltage release with leading contactYok
product feature sealableVar
product extension auxiliary switchVar
product extension optional locking capabilityVar
product extension optional phase failure monitoringVar
product extension optional fuse monitoringVar
product extension optional voltage triggerYok
product extension optional overvoltage protection monitoringVar
Product function
product function overvoltage protection monitoringYok
Short circuit
at AC at 240 V with high-speed activation rated value50 kA
at AC at 500 V with high-speed activation rated value50 kA
at AC at 690 V with high-speed activation rated value50 kA
with closed switch at AC at 240 V rated value100 kA
with closed switch at AC at 500 V rated value100 kA
with closed switch at AC at 690 V rated value100 kA
Connections
arrangement of electrical connectors for main current circuitother
solid or stranded minimum120 mm²
solid or stranded maximum300 mm²
stranded minimum120 mm²
stranded maximum300 mm²
minimum10 N·m
maximum12 N·m
type of connectable conductor cross-sections of the laminated conductors maximum40 x 18 mm
type of connection technologyFlat terminal

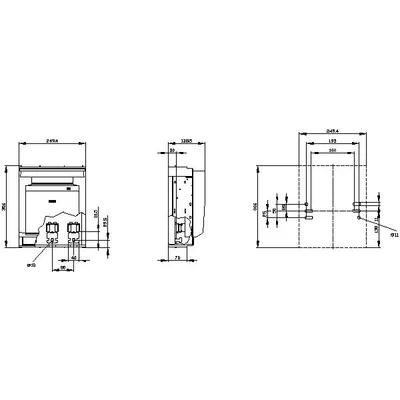

Mechanical Design
height306 mm
width249,4 mm
depth138,5 mm
fastening methodmounting plate
floor mountingVar
rail mountingYok
mounting positionyatay/dikey
Net Weight4,558 kg
Environmental conditions
minimum-25 °C
maximum55 °C
minimum-50 °C
maximum80 °C
Certificates
reference code according to IEC 81346-2Q

Aksesuarlar 41

Siemens 3NP1163-1DA10 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça noAçıklamaUyumlu motor
3NP1900-1EF00Aksesuar
3NP1941-1EC00Aksesuar
3NP1964-1MA20Aksesuar
3NG1402Aksesuar · NH fuse system
3NP1900-1HA00Aksesuar
3NP1940-1FA00Aksesuar
3NP1940-1FB00Aksesuar
3NP1943-1BG10Aksesuar
3NP1943-1CF00Aksesuar
3NP1953-1BG30Aksesuar
3NP1963-1BA00Aksesuar
3NP1963-1BB10Aksesuar
3NP1963-1CB00Aksesuar
3NP1963-1CD00Aksesuar
3NP1963-1DA00Aksesuar
3NP1963-1BB20Aksesuar
3NP1963-1GA00Bileşen
3NP1963-1GB10Bileşen
3NP1963-1GB20Bileşen
3NP1963-1GB30Bileşen
3NP1963-1GB50Bileşen
3NP1963-1GB45Bileşen
3NP1963-1GB42Bileşen
3NA3354-6Seçmeli zorunlu ürün
3NA3352Seçmeli zorunlu ürün
3NA3352-6Seçmeli zorunlu ürün
3NA3354Seçmeli zorunlu ürün
3NA3360Seçmeli zorunlu ürün
3NA3360-6Seçmeli zorunlu ürün
3NA3362Seçmeli zorunlu ürün
3NA3362-6Seçmeli zorunlu ürün
3NA3365Seçmeli zorunlu ürün
3NA3365-6Seçmeli zorunlu ürün
3ND1365Seçmeli zorunlu ürün
3ND2352Seçmeli zorunlu ürün
3ND2354Seçmeli zorunlu ürün
3ND2360Seçmeli zorunlu ürün
3NA3365-0MJSeçmeli zorunlu ürün
3NA6352-4KK01Seçmeli zorunlu ürün
3NA6354-4KK01Seçmeli zorunlu ürün
3NA6360-4KK01Seçmeli zorunlu ürün
