Siemens 3NP1143-1JC10 için nasıl fiyat teklifi alabilirim?

Siemens 3NP1143-1JC10 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B030891F ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3NP1143-1JC10 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3NP1143-1JC10 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3NP1143-1JC10 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

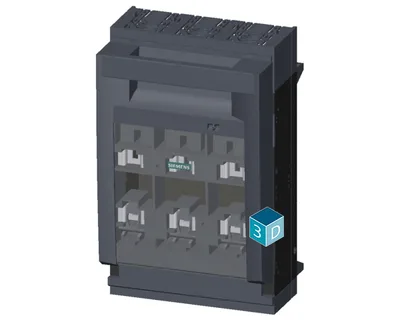

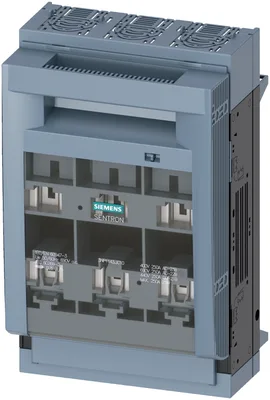

Siemens 3NP1143-1JC10

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH1, 250 A, for Rittal busbar system 60 mm, flat terminal, Cover level 32/70 mm

SiemensMFR # 3NP1143-1JC10SKU # CEY-8EF3B030891F

product designationFuse switch disconnector

busbar designbusbar thickness 5 veya 10 mm

design of the safety monitoringWithout

design of the load switch strip formYok

number of poles3

type of deviceFor Rittal 60 mm busbar system

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH1, 250 A, for Rittal busbar system 60 mm, flat terminal, Cover level 32/70 mm

Siemens 3NP1143-1JC10

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Model

product designationFuse switch disconnector

busbar designbusbar thickness 5 veya 10 mm

design of the safety monitoringWithout

design of the load switch strip formYok

type of the driving mechanism motor driveYok

General technical data

number of poles3

type of deviceFor Rittal 60 mm busbar system

size of disconnecting link1 ve 0

size of fuse linkNH0, NH1

let-through current with closed switch maximum32 kA

mechanical service life (operating cycles) typical1.600

I2t value with closed switch maximum780 kA²·s

at AC-22 B0,65

at AC-23 B0,45

with capacitive load-0.25

fuse systemLV HRC fuse

degree of pollution3

Voltage

rated value690 V

with degree of pollution 3 at AC rated value690 V

with degree of pollution 2 at AC rated value1.000 V

power factor at AC-21 B0,95

surge voltage resistance rated value8 kV

— at 35 °C rated value250 A

— at 40 °C rated value245 A

— at 45 °C rated value240 A

— at 50 °C rated value233 A

— at 55 °C rated value233 A

— at AC-21 B at 240 V rated value250 A

— at AC-21 B at 400 V rated value250 A

— at AC-21 B at 500 V rated value250 A

— at AC-21 B at 690 V rated value250 A

— at AC-22 B at 240 V rated value250 A

— at AC-22 B at 400 V rated value250 A

— at AC-22 B at 500 V rated value250 A

— at AC-22 B at 690 V rated value250 A

— at AC-23 B at 690 V rated value100 A

— at AC-23 B at 500 V rated value200 A

— at AC-23 B at 400 V rated value250 A

— at AC-23 B at 240 V rated value250 A

— at DC-21 B at 120 V rated value250 A

— at DC-21 B at 240 V rated value250 A

— at DC-21 B at 440 V rated value250 A

— at DC-22 B at 120 V rated value250 A

— at DC-22 B at 240 V rated value250 A

— at DC-22 B at 440 V rated value200 A

— at DC-23 B at 120 V rated value200 A

— at DC-23 B at 240 V rated value200 A

— at DC-23 B at 440 V rated value100 A

let-through current with high-speed activation maximum25 kA

at AC rated value maximum690 V

at DC rated value440 V

at DC rated value maximum440 V

Protection class

with closed switch with cover or cable lug coverIP40

with closed switch without cover or cable lug coverIP30

openIP20

Dissipation

with conventional rated thermal current without fuse per pole8 W

with conventional rated thermal current without fuse per device24 W

for rated value of the current at AC in hot operating state per pole9,6 W

of the fuse per fuse maximum23 W

Main circuit

rated value250 A

with capacitive load at 400 V rated value72 A

with capacitive load at 500 V rated value55 A

Auxiliary circuit

number of CO contacts for auxiliary contacts0

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

Suitability

suitability for use main switchYok

suitability for use switch disconnectorVar

suitability for use EMERGENCY OFF switchYok

suitability for use maintenance/repair switchVar

Product details

product function phase failure monitoringYok

undervoltage releaseYok

undervoltage release with leading contactYok

product feature sealableVar

product extension auxiliary switchVar

product extension optional locking capabilityVar

product extension optional phase failure monitoringVar

product extension optional fuse monitoringVar

product extension optional voltage triggerYok

product extension optional overvoltage protection monitoringVar

Product function

product function overvoltage protection monitoringYok

Short circuit

at AC at 240 V with high-speed activation rated value80 kA

at AC at 500 V with high-speed activation rated value80 kA

at AC at 690 V with high-speed activation rated value50 kA

with closed switch at AC at 240 V rated value120 kA

with closed switch at AC at 500 V rated value120 kA

with closed switch at AC at 690 V rated value100 kA

Connections

arrangement of electrical connectors for main current circuitother

solid or stranded minimum16 mm²

solid or stranded maximum150 mm²

stranded minimum16 mm²

stranded maximum150 mm²

minimum10 N·m

maximum12 N·m

type of connectable conductor cross-sections of the laminated conductors maximum25 x 18 mm

type of connection technologyFlat terminal

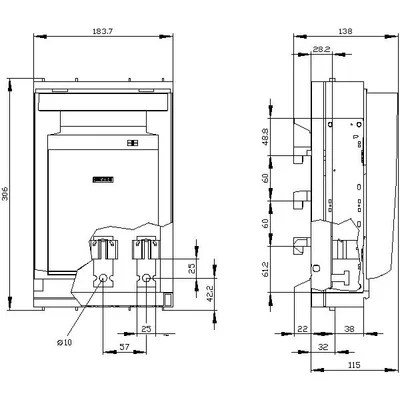

Mechanical Design

height306 mm

width183,7 mm

minimum12 mm

maximum30 mm

depth138 mm

fastening methodbusbar

floor mountingYok

rail mountingVar

mounting positionyatay/dikey

busbar center-to-center spacing60 mm

Net Weight3,212 kg

Environmental conditions

minimum-25 °C

maximum55 °C

minimum-50 °C

maximum80 °C

Certificates
