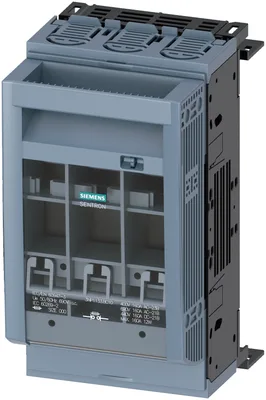

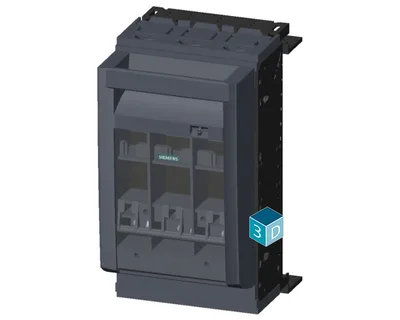

Siemens 3NP1133-1BC10

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 3NP1133-1BC10

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH00, 160 A, for Busbar system 8US 60 mm, flat terminal, Cover level 32/70 mm

SiemensMFR # 3NP1133-1BC10SKU # CEY-8EF3B03297DF
product designationFuse switch disconnector
busbar designbusbar thickness 5 veya 10 mm
design of the safety monitoringWithout
design of the load switch strip formYok
number of poles3
type of deviceFor 60 mm 8US busbar system
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH00, 160 A, for Busbar system 8US 60 mm, flat terminal, Cover level 32/70 mm

Siemens 3NP1133-1BC10

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Model
product designationFuse switch disconnector
busbar designbusbar thickness 5 veya 10 mm
design of the safety monitoringWithout
design of the load switch strip formYok
type of the driving mechanism motor driveYok
General technical data
number of poles3
type of deviceFor 60 mm 8US busbar system
size of disconnecting link00 ve 000
size of fuse linkNH000, NH00
let-through current with closed switch maximum23 kA
mechanical service life (operating cycles) typical2.000
I2t value with closed switch maximum223 kA²·s
at AC-22 B0,65
at AC-23 B0,45
with capacitive load-0.25
fuse systemLV HRC fuse
degree of pollution3
Voltage
rated value690 V
with degree of pollution 3 at AC rated value690 V
with degree of pollution 2 at AC rated value1.000 V
power factor at AC-21 B0,95
surge voltage resistance rated value8 kV
— at 35 °C rated value160 A
— at 40 °C rated value155 A
— at 45 °C rated value145 A
— at 50 °C rated value140 A
— at 55 °C rated value133 A
— at AC-21 B at 240 V rated value160 A
— at AC-21 B at 400 V rated value160 A
— at AC-21 B at 500 V rated value160 A
— at AC-21 B at 690 V rated value160 A
— at AC-22 B at 240 V rated value160 A
— at AC-22 B at 400 V rated value160 A
— at AC-22 B at 500 V rated value160 A
— at AC-22 B at 690 V rated value125 A
— at AC-23 B at 690 V rated value35 A
— at AC-23 B at 500 V rated value63 A
— at AC-23 B at 400 V rated value160 A
— at AC-23 B at 240 V rated value160 A
— at DC-21 B at 120 V rated value160 A
— at DC-21 B at 240 V rated value160 A
— at DC-21 B at 440 V rated value160 A
— at DC-22 B at 120 V rated value160 A
— at DC-22 B at 240 V rated value160 A
— at DC-22 B at 440 V rated value125 A
— at DC-23 B at 120 V rated value100 A
— at DC-23 B at 240 V rated value100 A
— at DC-23 B at 440 V rated value63 A
let-through current with high-speed activation maximum15 kA
at AC rated value maximum690 V
at DC rated value440 V
at DC rated value maximum440 V
Protection class
with closed switch with cover or cable lug coverIP40
with closed switch without cover or cable lug coverIP30
openIP20
Dissipation
with conventional rated thermal current without fuse per pole5 W
with conventional rated thermal current without fuse per device15 W
for rated value of the current at AC in hot operating state per pole5,7 W
of the fuse per fuse maximum12 W
Main circuit
rated value160 A
with capacitive load at 400 V rated value72 A
with capacitive load at 500 V rated value55 A
Auxiliary circuit
number of CO contacts for auxiliary contacts0
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
Suitability
suitability for use main switchYok
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchYok
suitability for use maintenance/repair switchVar
Product details
product function phase failure monitoringYok
undervoltage releaseYok
undervoltage release with leading contactYok
product feature sealableVar
product extension auxiliary switchVar
product extension optional locking capabilityVar
product extension optional phase failure monitoringVar
product extension optional fuse monitoringVar
product extension optional voltage triggerYok
product extension optional overvoltage protection monitoringVar
Product function
product function overvoltage protection monitoringYok
Short circuit
at AC at 240 V with high-speed activation rated value80 kA
at AC at 500 V with high-speed activation rated value80 kA
at AC at 690 V with high-speed activation rated value50 kA
with closed switch at AC at 240 V rated value120 kA
with closed switch at AC at 500 V rated value120 kA
with closed switch at AC at 690 V rated value100 kA
Connections
arrangement of electrical connectors for main current circuitother
solid or stranded minimum2,5 mm²
solid or stranded maximum95 mm²
stranded minimum2,5 mm²
stranded maximum95 mm²
minimum10 N·m
maximum12 N·m
type of connectable conductor cross-sections of the laminated conductors maximum24 x 12 mm
type of connection technologyFlat terminal

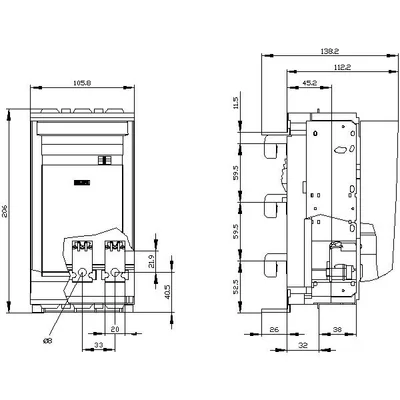

Mechanical Design
height206,2 mm
width105,8 mm
minimum12 mm
maximum30 mm
depth137,5 mm
fastening methodbusbar
floor mountingYok
rail mountingVar
mounting positionyatay/dikey
busbar center-to-center spacing60 mm
Net Weight1,079 kg
Environmental conditions
minimum-25 °C
maximum55 °C
minimum-50 °C
maximum80 °C
Certificates
reference code according to IEC 81346-2Q

Aksesuarlar 51

Siemens 3NP1133-1BC10 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça noAçıklamaUyumlu motor
3NP1900-1EF00Aksesuar
3NP1933-1DA00Aksesuar
3NP1933-1CB00Aksesuar
3NP1933-1BE10Aksesuar
3NP1933-1BC00Aksesuar
3NP1933-1BB10Aksesuar
3NP1933-1BA00Aksesuar
3NP1933-1CF00Aksesuar
3NP1933-1BG30Aksesuar
3NP1933-1BG10Aksesuar
3NP1930-1FB00Aksesuar
3NP1930-1FA00Aksesuar
3NP1933-1CC00Aksesuar
3NP1900-1HA00Aksesuar
3NG1002Aksesuar · NH fuse system
3NP1934-1MA20Aksesuar
3NP1934-1ED20Aksesuar
3NP1931-1EC00Aksesuar
3NP1933-1EB00Aksesuar
3NP1933-1GB50Bileşen
3NP1933-1GB30Bileşen
3NP1933-1GB20Bileşen
3NP1933-1GB10Bileşen
3NP1933-1GA00Bileşen
3NP1933-1CA20Bileşen
3NP1933-1CA10Bileşen
3NP1933-1GB45Bileşen
3NP1933-1GB42Bileşen
3NA3832Seçmeli zorunlu ürün
3NE1021-0Seçmeli zorunlu ürün
3NE1022-0Seçmeli zorunlu ürün
3NA3824-6Seçmeli zorunlu ürün
3ND1832Seçmeli zorunlu ürün
3ND1830Seçmeli zorunlu ürün
3NA7832Seçmeli zorunlu ürün
3NA7830-7Seçmeli zorunlu ürün
3NA7824-7Seçmeli zorunlu ürün
3NA7830-6Seçmeli zorunlu ürün
3NA7824-6Seçmeli zorunlu ürün
3NA6832Seçmeli zorunlu ürün
3NA6830-7Seçmeli zorunlu ürün
3NA6830-6Seçmeli zorunlu ürün
3NA6824-6Seçmeli zorunlu ürün
3NA6832-4Seçmeli zorunlu ürün
3NA6830-4KKSeçmeli zorunlu ürün
3NA6824-4KKSeçmeli zorunlu ürün
3NA3830-7Seçmeli zorunlu ürün
3NA3824-7Seçmeli zorunlu ürün
3NA3830-6Seçmeli zorunlu ürün
3NA6824-7Seçmeli zorunlu ürün
3NE1020-2Seçmeli zorunlu ürün
