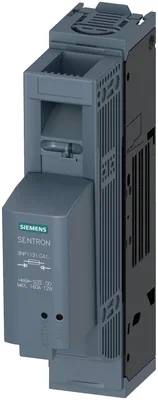

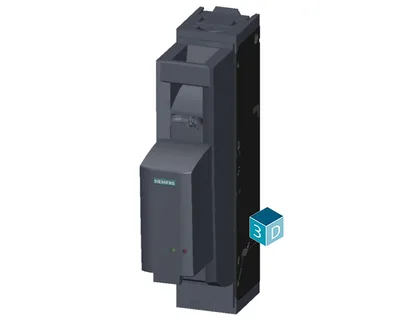

Siemens 3NP1131-1CA14
SENTRON, fuse switch disconnector 3NP1, 1-pole, NH00, 160 A, for assembly and installation on mounting plate, Flat terminal, Fuse monitoring electronic EFM15, cover level 45mm
product designationFuse switch disconnector
design of the safety monitoringelectronic EFM 15
design of the load switch strip formYok
number of poles1
size of disconnecting link00 ve 000
size of fuse linkNH000, NH00
Ürün Hakkında
SENTRON, fuse switch disconnector 3NP1, 1-pole, NH00, 160 A, for assembly and installation on mounting plate, Flat terminal, Fuse monitoring electronic EFM15, cover level 45mm
Siemens 3NP1131-1CA14
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product designationFuse switch disconnector
design of the safety monitoringelectronic EFM 15
design of the load switch strip formYok
type of the driving mechanism motor driveYok
General technical data
number of poles1
type of deviceFor assembly ve installation on mounting plate
size of disconnecting link00 ve 000
size of fuse linkNH000, NH00
let-through current with closed switch maximum23 kA
mechanical service life (operating cycles) typical2.000
I2t value with closed switch maximum120 kA²·s
at AC-22 B0,65
at AC-23 B0,35
with capacitive load-0.25
fuse systemLV HRC fuse
degree of pollution2
Voltage
rated value690 V
with degree of pollution 3 at AC rated value690 V
with degree of pollution 2 at AC rated value1.000 V
power factor at AC-21 B0,95
surge voltage resistance rated value8 kV
— at 35 °C rated value160 A
— at 40 °C rated value155 A
— at 45 °C rated value145 A
— at 50 °C rated value140 A
— at 55 °C rated value133 A
— at AC-21 B at 240 V rated value160 A
— at AC-22 B at 240 V rated value160 A
— at AC-23 B at 240 V rated value160 A
— at DC-21 B at 120 V rated value160 A
— at DC-22 B at 120 V rated value100 A
— at DC-23 B at 120 V rated value100 A
let-through current with high-speed activation maximum15 kA
at AC rated value minimum24 V
at AC rated value maximum240 V
at DC rated value120 V
at DC rated value minimum24 V
at DC rated value maximum120 V
Protection class
with closed switch with cover or cable lug coverIP40
with closed switch without cover or cable lug coverIP30
openIP20
Dissipation
with conventional rated thermal current without fuse per pole5 W
with conventional rated thermal current without fuse per device5 W
for rated value of the current at AC in hot operating state per pole5,7 W
of the fuse per fuse maximum12 W
Main circuit
rated value160 A
with capacitive load at 400 V rated value72 A
with capacitive load at 500 V rated value55 A
Auxiliary circuit
number of CO contacts for auxiliary contacts0
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
Suitability
suitability for use main switchYok
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchYok
suitability for use maintenance/repair switchVar
Product details
product function phase failure monitoringYok
undervoltage releaseYok
undervoltage release with leading contactYok
product feature sealableVar
product extension auxiliary switchVar
product extension optional locking capabilityVar
product extension optional phase failure monitoringYok
product extension optional voltage triggerYok
product extension optional overvoltage protection monitoringYok
Product function
product function overvoltage protection monitoringYok
Short circuit
at AC at 240 V with high-speed activation rated value80 kA
with closed switch at AC at 240 V rated value120 kA
Connections
arrangement of electrical connectors for main current circuitother
solid or stranded minimum2,5 mm²
solid or stranded maximum95 mm²
stranded minimum2,5 mm²
stranded maximum95 mm²
minimum10 N·m
maximum12 N·m
type of connectable conductor cross-sections of the laminated conductors maximum24 x 12 mm
type of connection technologyFlat terminal

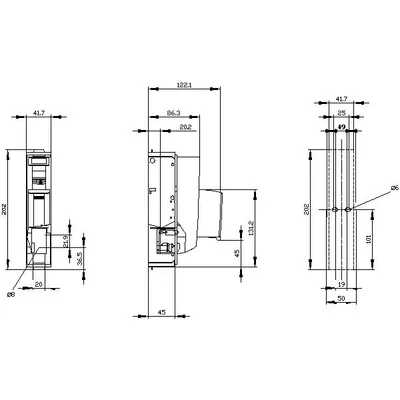

Mechanical Design
height202 mm
width41,8 mm
depth126,1 mm
fastening methodmounting plate
floor mountingVar
rail mountingYok
mounting positionyatay/dikey
Net Weight481 g
Environmental conditions
minimum-25 °C
maximum55 °C
minimum-50 °C
maximum80 °C
Certificates
reference code according to IEC 81346-2Q
Aksesuarlar 45
Siemens 3NP1131-1CA14 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3NP1900-1EF00 | Aksesuar | |
| 3NP1931-1BA00 | Aksesuar | |
| 3NP1931-1BC00 | Aksesuar | |
| 3NP1931-1BE10 | Aksesuar | |
| 3NP1931-1CB00 | Aksesuar | |
| 3NP1931-1CD00 | Aksesuar | |
| 3NP1931-1EB00 | Aksesuar | |
| 3NP1931-1EC00 | Aksesuar | |
| 3NP1931-1EE10 | Aksesuar | |
| 3NP1934-1ED20 | Aksesuar | |
| 3NP1934-1MA20 | Aksesuar | |
| 3NG1002 | Aksesuar · NH fuse system | |
| 3NP1930-1FA00 | Aksesuar | |
| 3NP1930-1FB00 | Aksesuar | |
| 3NP1931-1BB10 | Aksesuar | |
| 3NP1933-1BG10 | Aksesuar | |
| 3NP1933-1BG30 | Aksesuar | |
| 3NP1933-1CF00 | Aksesuar | |
| 3NP1931-1GB44 | Bileşen | |
| 3NP1931-1GB41 | Bileşen | |
| 3NP1931-1GA00 | Bileşen | |
| 3NP1931-1GB43 | Bileşen | |
| 3NE1021-0 | Seçmeli zorunlu ürün | |
| 3NE1022-0 | Seçmeli zorunlu ürün | |
| 3NA3824-6 | Seçmeli zorunlu ürün | |
| 3NA3830-6 | Seçmeli zorunlu ürün | |
| 3NA3824-7 | Seçmeli zorunlu ürün | |
| 3NA3830-7 | Seçmeli zorunlu ürün | |
| 3NA6824-4KK | Seçmeli zorunlu ürün | |
| 3NA6830-4KK | Seçmeli zorunlu ürün | |
| 3NA6832-4 | Seçmeli zorunlu ürün | |
| 3NA6824-6 | Seçmeli zorunlu ürün | |
| 3NA6830-6 | Seçmeli zorunlu ürün | |
| 3NA6824-7 | Seçmeli zorunlu ürün | |
| 3NA6830-7 | Seçmeli zorunlu ürün | |
| 3NA6832 | Seçmeli zorunlu ürün | |
| 3NA7824-6 | Seçmeli zorunlu ürün | |
| 3NA7830-6 | Seçmeli zorunlu ürün | |
| 3NA7824-7 | Seçmeli zorunlu ürün | |
| 3NA7830-7 | Seçmeli zorunlu ürün | |
| 3NA7832 | Seçmeli zorunlu ürün | |
| 3ND1830 | Seçmeli zorunlu ürün | |
| 3ND1832 | Seçmeli zorunlu ürün | |
| 3NA3832 | Seçmeli zorunlu ürün | |
| 3NE1020-2 | Seçmeli zorunlu ürün |
