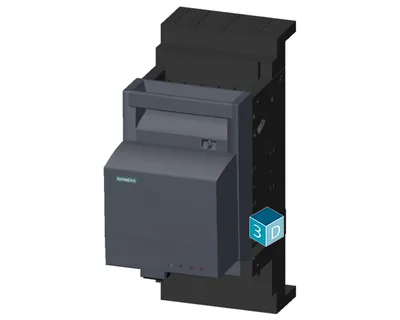

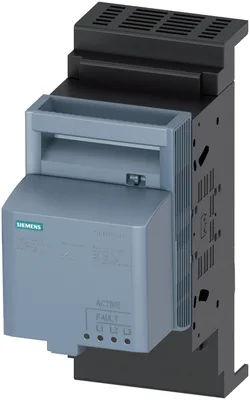

Siemens 3NP1123-1JC22
SENTRON, sigorta anahtar disconnector 3NP1, 3-pole, NH000, 160 A, için Rittal bara system 60 mm, Box klemens, sigorta monitoring: elektronik EFM10, kapak level 32/70 mm
product designationFuse switch disconnector
busbar designbusbar thickness 5 veya 10 mm
design of the safety monitoringelectronic EFM 10
design of the load switch strip formYok
number of poles3
type of deviceFor Rittal 60 mm busbar system
Ürün Hakkında
SENTRON, sigorta anahtar disconnector 3NP1, 3-pole, NH000, 160 A, için Rittal bara system 60 mm, Box klemens, sigorta monitoring: elektronik EFM10, kapak level 32/70 mm
Siemens 3NP1123-1JC22
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product designationFuse switch disconnector
busbar designbusbar thickness 5 veya 10 mm
design of the safety monitoringelectronic EFM 10
design of the load switch strip formYok
type of the driving mechanism motor driveYok
General technical data
number of poles3
type of deviceFor Rittal 60 mm busbar system
size of disconnecting link000
size of fuse linkNH000
let-through current with closed switch maximum15 kA
mechanical service life (operating cycles) typical2.000
I2t value with closed switch maximum223 kA²·s
at AC-22 B0,65
at AC-23 B0,45
with capacitive load-0.25
fuse systemLV HRC fuse
degree of pollution2
Voltage
rated value690 V
with degree of pollution 3 at AC rated value690 V
with degree of pollution 2 at AC rated value1.000 V
power factor at AC-21 B0,95
surge voltage resistance rated value8 kV
— at 35 °C rated value160 A
— at 40 °C rated value150 A
— at 45 °C rated value140 A
— at 50 °C rated value130 A
— at 55 °C rated value120 A
— at AC-21 B at 240 V rated value160 A
— at AC-21 B at 400 V rated value160 A
— at AC-21 B at 500 V rated value160 A
— at AC-21 B at 690 V rated value160 A
— at AC-22 B at 240 V rated value160 A
— at AC-22 B at 400 V rated value160 A
— at AC-22 B at 500 V rated value125 A
— at AC-22 B at 690 V rated value50 A
— at AC-23 B at 690 V rated value25 A
— at AC-23 B at 500 V rated value40 A
— at AC-23 B at 400 V rated value160 A
— at AC-23 B at 240 V rated value160 A
let-through current with high-speed activation maximum10 kA
at AC rated value minimum230 V
at AC rated value maximum690 V
Protection class
with closed switch with cover or cable lug coverIP40
with closed switch without cover or cable lug coverIP30
openIP20
Dissipation
with conventional rated thermal current without fuse per pole5 W
with conventional rated thermal current without fuse per device15 W
for rated value of the current at AC in hot operating state per pole5,7 W
of the fuse per fuse maximum9 W
Main circuit
rated value125 A
with capacitive load at 400 V rated value72 A
with capacitive load at 500 V rated value55 A
Auxiliary circuit
number of CO contacts for auxiliary contacts0
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
Suitability
suitability for use main switchYok
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchYok
suitability for use maintenance/repair switchVar
Product details
product function phase failure monitoringYok
undervoltage releaseYok
undervoltage release with leading contactYok
product feature sealableVar
product extension auxiliary switchVar
product extension optional locking capabilityVar
product extension optional phase failure monitoringVar
product extension optional voltage triggerYok
product extension optional overvoltage protection monitoringVar
Product function
product function overvoltage protection monitoringYok
Short circuit
at AC at 240 V with high-speed activation rated value80 kA
at AC at 500 V with high-speed activation rated value80 kA
at AC at 690 V with high-speed activation rated value50 kA
with closed switch at AC at 240 V rated value120 kA
with closed switch at AC at 500 V rated value120 kA
with closed switch at AC at 690 V rated value100 kA
Connections
arrangement of electrical connectors for main current circuitother
solid or stranded minimum1,5 mm²
solid or stranded maximum50 mm²
finely stranded with core end processing minimum1,5 mm²
finely stranded with core end processing maximum35 mm²
stranded minimum1,5 mm²
stranded maximum50 mm²
minimum3,5 N·m
maximum4 N·m
type of connectable conductor cross-sections of the laminated conductors maximum8 x 8 mm
type of connection technologyBox terminal

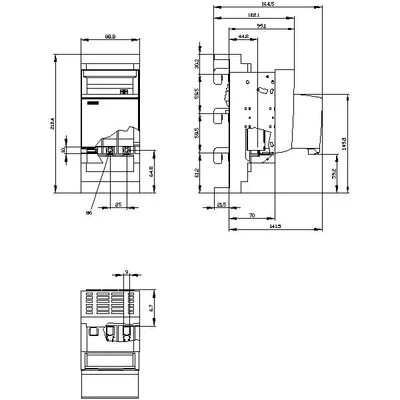

Mechanical Design
height210,4 mm
width88,8 mm
minimum12 mm
maximum30 mm
depth140,9 mm
fastening methodbusbar
floor mountingYok
rail mountingVar
mounting positionyatay/dikey
busbar center-to-center spacing60 mm
Net Weight1,023 kg
Environmental conditions
minimum-25 °C
maximum55 °C
minimum-50 °C
maximum80 °C
Certificates
reference code according to IEC 81346-2Q
Aksesuarlar 37
Siemens 3NP1123-1JC22 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3NP1900-1EF00 | Aksesuar | |
| 3NP1921-1EC00 | Aksesuar | |
| 3NP1924-1ED10 | Aksesuar | |
| 3NP1924-1MA20 | Aksesuar | |
| 3NG1002 | Aksesuar · NH fuse system | |
| 3NP1920-1FA00 | Aksesuar | |
| 3NP1920-1FB00 | Aksesuar | |
| 3NP1923-1CF00 | Aksesuar | |
| 3NP1900-1HA00 | Aksesuar | |
| 3NP1923-1BD00 | Aksesuar | |
| 3NP1923-1BE20 | Aksesuar | |
| 3NP1923-1CB00 | Aksesuar | |
| 3NP1923-1EA00 | Aksesuar | |
| 3NP1933-1CC00 | Aksesuar | |
| 3NP1923-1DA00 | Aksesuar | |
| 3NP1923-1CA30 | Bileşen | |
| 3NP1923-1GB42 | Bileşen | |
| 3NP1923-1GB45 | Bileşen | |
| 3NP1923-1CA10 | Bileşen | |
| 3NP1923-1CA20 | Bileşen | |
| 3NP1923-1GA00 | Bileşen | |
| 3NP1923-1GB20 | Bileşen | |
| 3NP1923-1GB30 | Bileşen | |
| 3NP1923-1GB50 | Bileşen | |
| 3NA3824 | Seçmeli zorunlu ürün | |
| 3NA3830 | Seçmeli zorunlu ürün | |
| 3NA3832-8 | Seçmeli zorunlu ürün | |
| 3NA6824-4 | Seçmeli zorunlu ürün | |
| 3NA6830-4 | Seçmeli zorunlu ürün | |
| 3NA6824 | Seçmeli zorunlu ürün | |
| 3NA6830 | Seçmeli zorunlu ürün | |
| 3NA7824 | Seçmeli zorunlu ürün | |
| 3NA7830 | Seçmeli zorunlu ürün | |
| 3ND1824 | Seçmeli zorunlu ürün | |
| 3ND1830-8 | Seçmeli zorunlu ürün | |
| 3NE1820-0 | Seçmeli zorunlu ürün | |
| 8GK9912-0KK00 | Seçmeli zorunlu ürün |
