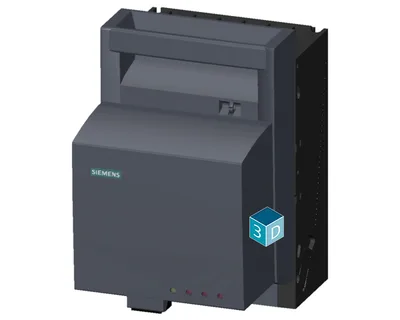

Siemens 3NP1123-1CA24
SENTRON, sigorta anahtar disconnector 3NP1, 3-pole, NH000, 160 A, için assembly ve installation on montaj plaka, Box klemens, sigorta monitoring elektronik EFM15, kapak level 45mm
product designationFuse switch disconnector
design of the safety monitoringelectronic EFM 15
design of the load switch strip formYok
number of poles3
size of disconnecting link0
size of fuse linkNH000
Ürün Hakkında
SENTRON, sigorta anahtar disconnector 3NP1, 3-pole, NH000, 160 A, için assembly ve installation on montaj plaka, Box klemens, sigorta monitoring elektronik EFM15, kapak level 45mm
Siemens 3NP1123-1CA24
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product designationFuse switch disconnector
design of the safety monitoringelectronic EFM 15
design of the load switch strip formYok
type of the driving mechanism motor driveYok
General technical data
number of poles3
type of deviceFor assembly ve installation on mounting plate
size of disconnecting link0
size of fuse linkNH000
let-through current with closed switch maximum15 kA
mechanical service life (operating cycles) typical2.000
I2t value with closed switch maximum223 kA²·s
at AC-22 B0,65
at AC-23 B0,45
with capacitive load-0.25
fuse systemLV HRC fuse
degree of pollution2
Voltage
rated value690 V
with degree of pollution 3 at AC rated value690 V
with degree of pollution 2 at AC rated value1.000 V
power factor at AC-21 B0,95
surge voltage resistance rated value8 kV
— at 35 °C rated value160 A
— at 40 °C rated value150 A
— at 45 °C rated value140 A
— at 50 °C rated value130 A
— at 55 °C rated value120 A
— at AC-21 B at 240 V rated value160 A
— at AC-21 B at 400 V rated value160 A
— at AC-21 B at 500 V rated value160 A
— at AC-21 B at 690 V rated value160 A
— at AC-22 B at 240 V rated value160 A
— at AC-22 B at 400 V rated value160 A
— at AC-22 B at 500 V rated value125 A
— at AC-22 B at 690 V rated value50 A
— at AC-23 B at 690 V rated value25 A
— at AC-23 B at 500 V rated value40 A
— at AC-23 B at 400 V rated value160 A
— at AC-23 B at 240 V rated value160 A
let-through current with high-speed activation maximum10 kA
at AC rated value minimum190 V
at AC rated value maximum690 V
Protection class
with closed switch with cover or cable lug coverIP40
with closed switch without cover or cable lug coverIP30
openIP20
Dissipation
with conventional rated thermal current without fuse per pole5 W
with conventional rated thermal current without fuse per device15 W
for rated value of the current at AC in hot operating state per pole5,7 W
of the fuse per fuse maximum9 W
Main circuit
rated value125 A
with capacitive load at 400 V rated value72 A
with capacitive load at 500 V rated value55 A
Auxiliary circuit
number of CO contacts for auxiliary contacts0
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
Suitability
suitability for use main switchYok
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchYok
suitability for use maintenance/repair switchVar
Product details
product function phase failure monitoringYok
undervoltage releaseYok
undervoltage release with leading contactYok
product feature sealableVar
product extension auxiliary switchVar
product extension optional locking capabilityVar
product extension optional phase failure monitoringYok
product extension optional voltage triggerYok
product extension optional overvoltage protection monitoringVar
Product function
product function overvoltage protection monitoringYok
Short circuit
at AC at 240 V with high-speed activation rated value80 kA
at AC at 500 V with high-speed activation rated value80 kA
at AC at 690 V with high-speed activation rated value50 kA
with closed switch at AC at 240 V rated value120 kA
with closed switch at AC at 500 V rated value120 kA
with closed switch at AC at 690 V rated value100 kA
Connections
arrangement of electrical connectors for main current circuitother
solid or stranded minimum1,5 mm²
solid or stranded maximum50 mm²
finely stranded with core end processing minimum1,5 mm²
finely stranded with core end processing maximum35 mm²
stranded minimum1,5 mm²
stranded maximum50 mm²
minimum3,5 N·m
maximum4 N·m
type of connectable conductor cross-sections of the laminated conductors maximum8 x 8 mm
type of connection technologyBox terminal

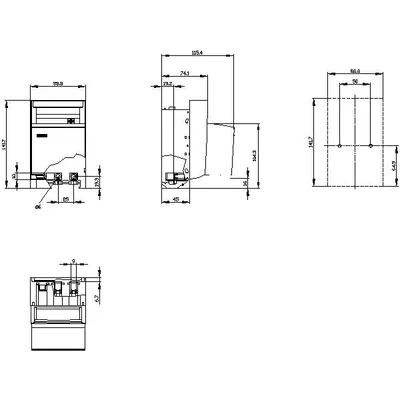

Mechanical Design
height141,7 mm
width88,8 mm
depth117,9 mm
fastening methodmounting plate
floor mountingVar
rail mountingYok
mounting positionyatay/dikey
Net Weight658 g
Environmental conditions
minimum-25 °C
maximum55 °C
minimum-50 °C
maximum80 °C
Certificates
reference code according to IEC 81346-2Q
Ürün bilgileri
EAN4001869567075
Ürün ailesiSENTRON 3NP1 Fuse Switch Disconnectors
Yaşam döngüsü durumuAktif
Gümrük tarife kodu85365080
Teslimat ve lojistik
Menşe ülkeCzech Republic
Teslim süresi3 gün
İade edilebilirEvet
Net ağırlık0,658 Kg
Paket ölçüleri (U x G x Y)220 x 118 x 108 MM
Standart paket adedi1 adet
Minimum sipariş adedi1
Tehlikeli maddeHayır
İhracat kontrolüAL : N / ECCN : 9N9999
Çevre ve uyumluluk
RoHS uyumuSince: 15-10-17
WEEE kategorisi5
REACH bilgisiLead CAS-No. 7439-92-1 > 0,1 % (w / w)
SCIP numarasıa0f25889-3d84-4c9a-8fb2-9e124cba0089
Siemens kataloğu
Ürün grubu5863
Katalog kimliğiLV10
Grup koduP360
Ürün sınıfıStraightforward, can be reused over the short term
Aksesuarlar 35
Siemens 3NP1123-1CA24 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3NP1900-1EF00 | Aksesuar | |
| 3NP1921-1EC00 | Aksesuar | |
| 3NP1924-1MA20 | Aksesuar | |
| 3NG1002 | Aksesuar · NH fuse system | |
| 3NP1920-1FA00 | Aksesuar | |
| 3NP1920-1FB00 | Aksesuar | |
| 3NP1923-1CF00 | Aksesuar | |
| 3NP1900-1HA00 | Aksesuar | |
| 3NP1923-1BD00 | Aksesuar | |
| 3NP1923-1BE20 | Aksesuar | |
| 3NP1923-1EA00 | Aksesuar | |
| 3NP1923-1BF20 | Aksesuar | |
| 3NP1923-1BF30 | Aksesuar | |
| 3NP1923-1BF40 | Aksesuar | |
| 3NP1923-1BF50 | Aksesuar | |
| 3NP1923-1DA00 | Aksesuar | |
| 3NP1923-1GA00 | Bileşen | |
| 3NP1923-1GB20 | Bileşen | |
| 3NP1923-1GB30 | Bileşen | |
| 3NP1923-1GB50 | Bileşen | |
| 3NP1923-1GB45 | Bileşen | |
| 3NP1923-1GB42 | Bileşen | |
| 3NA3824 | Seçmeli zorunlu ürün | |
| 3NA3830 | Seçmeli zorunlu ürün | |
| 3NE1820-0 | Seçmeli zorunlu ürün | |
| 3NA3832-8 | Seçmeli zorunlu ürün | |
| 3NA6824-4 | Seçmeli zorunlu ürün | |
| 3NA6830-4 | Seçmeli zorunlu ürün | |
| 3NA6824 | Seçmeli zorunlu ürün | |
| 3NA6830 | Seçmeli zorunlu ürün | |
| 3NA7824 | Seçmeli zorunlu ürün | |
| 3NA7830 | Seçmeli zorunlu ürün | |
| 3ND1824 | Seçmeli zorunlu ürün | |
| 3ND1830-8 | Seçmeli zorunlu ürün | |
| 8GK9912-0KK00 | Seçmeli zorunlu ürün |
