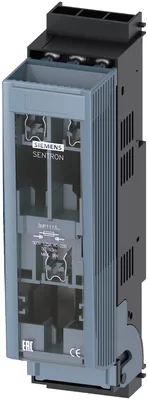

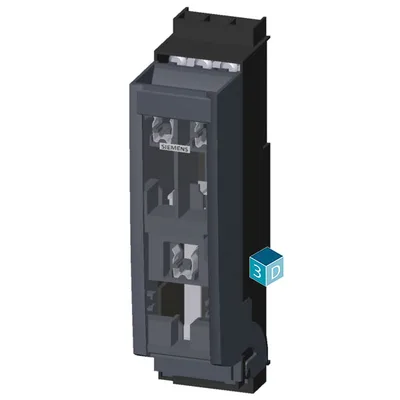

Siemens 3NP1113-1CA20
SENTRON, sigorta anahtar disconnector 3NP1, 3-pole, NH000 narrow, 125 A, için assembly ve installation on montaj plaka, box klemens, kapak level 45 mm
product designationFuse switch disconnector
design of the safety monitoringWithout
design of the load switch strip formYok
number of poles3
size of disconnecting link0
size of fuse linkNH000
Ürün Hakkında
SENTRON, sigorta anahtar disconnector 3NP1, 3-pole, NH000 narrow, 125 A, için assembly ve installation on montaj plaka, box klemens, kapak level 45 mm
Siemens 3NP1113-1CA20
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product designationFuse switch disconnector
design of the safety monitoringWithout
design of the load switch strip formYok
type of the driving mechanism motor driveYok
General technical data
number of poles3
type of deviceFor assembly ve installation on mounting plate
size of disconnecting link0
size of fuse linkNH000
mechanical service life (operating cycles) typical2.000
at AC-22 B0,65
at AC-23 B0,35
fuse systemLV HRC fuse
degree of pollution2
Voltage
rated value800 V
with degree of pollution 2 at AC rated value800 V
power factor at AC-21 B0,95
surge voltage resistance rated value6 kV
— at 35 °C rated value125 A
— at 40 °C rated value111 A
— at 45 °C rated value95 A
— at 50 °C rated value76 A
— at 55 °C rated value51 A
— at AC-21 B at 240 V rated value125 A
— at AC-21 B at 400 V rated value125 A
— at AC-21 B at 500 V rated value125 A
— at AC-21 B at 690 V rated value80 A
— at AC-22 B at 240 V rated value125 A
— at AC-22 B at 400 V rated value125 A
— at AC-22 B at 500 V rated value125 A
— at AC-23 B at 400 V rated value125 A
— at AC-23 B at 240 V rated value125 A
at AC rated value maximum690 V
Protection class
with closed switch with cover or cable lug coverIP30
with closed switch without cover or cable lug coverIP10
openIP10
Dissipation
with conventional rated thermal current without fuse per pole3,6 W
with conventional rated thermal current without fuse per device10,8 W
for rated value of the current at AC in hot operating state per pole10,7 W
of the fuse per fuse maximum9 W
Main circuit
rated value125 A
Auxiliary circuit
number of CO contacts for auxiliary contacts0
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
Suitability
suitability for use main switchYok
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchYok
suitability for use maintenance/repair switchVar
Product details
product function phase failure monitoringYok
undervoltage releaseYok
undervoltage release with leading contactYok
product feature sealableVar
product extension auxiliary switchVar
product extension optional locking capabilityVar
product extension optional phase failure monitoringYok
product extension optional fuse monitoringYok
product extension optional voltage triggerYok
product extension optional overvoltage protection monitoringYok
Product function
product function overvoltage protection monitoringYok
Short circuit
at AC at 240 V with high-speed activation rated value80 kA
at AC at 500 V with high-speed activation rated value120 kA
at AC at 690 V with high-speed activation rated value80 kA
with closed switch at AC at 240 V rated value80 kA
with closed switch at AC at 500 V rated value80 kA
with closed switch at AC at 690 V rated value80 kA
Connections
arrangement of electrical connectors for main current circuitother
solid or stranded minimum1,5 mm²
solid or stranded maximum50 mm²
finely stranded with core end processing minimum1,5 mm²
finely stranded with core end processing maximum35 mm²
stranded minimum16 mm²
stranded maximum50 mm²
minimum4 N·m
maximum5 N·m
type of connectable conductor cross-sections of the laminated conductors maximum6 x (9 x 0,8) mm
type of connection technologyBox terminal

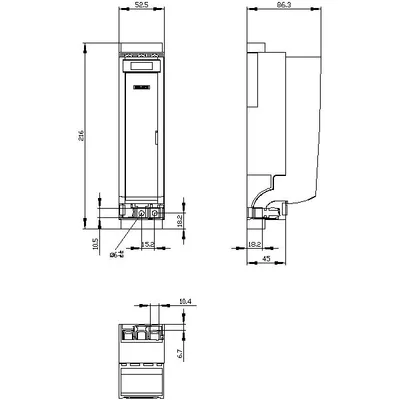

Mechanical Design
height216 mm
width53 mm
depth89 mm
fastening methodmounting plate
floor mountingVar
rail mountingYok
mounting positionyatay/dikey
Net Weight620 g
Environmental conditions
minimum-25 °C
maximum70 °C
minimum-50 °C
maximum80 °C
Certificates
reference code according to IEC 81346-2Q
Aksesuarlar 19
Siemens 3NP1113-1CA20 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3NP1924-1MA20 | Aksesuar | |
| 3NG1002 | Aksesuar · NH fuse system | |
| 3ND1830-8 | Seçmeli zorunlu ürün | |
| 3ND1824 | Seçmeli zorunlu ürün | |
| 3ND1822 | Seçmeli zorunlu ürün | |
| 3NA7830 | Seçmeli zorunlu ürün | |
| 3NA7824 | Seçmeli zorunlu ürün | |
| 3NA7822 | Seçmeli zorunlu ürün | |
| 3NA6830 | Seçmeli zorunlu ürün | |
| 3NA6824 | Seçmeli zorunlu ürün | |
| 3NA6822 | Seçmeli zorunlu ürün | |
| 3NA6830-4 | Seçmeli zorunlu ürün | |
| 3NA6824-4 | Seçmeli zorunlu ürün | |
| 3NE1820-0 | Seçmeli zorunlu ürün | |
| 3NE1818-0 | Seçmeli zorunlu ürün | |
| 3NA3830 | Seçmeli zorunlu ürün | |
| 3NA3824 | Seçmeli zorunlu ürün | |
| 3NA3822 | Seçmeli zorunlu ürün | |
| 3NA6822-4 | Seçmeli zorunlu ürün |
