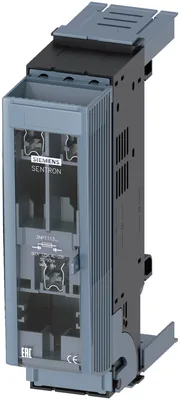

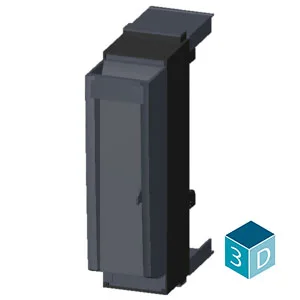

Siemens 3NP1113-1BC26
SENTRON, fuse switch disconnector 3NP1, 3-pole, NH000 narrow, 125 A, for 60 mm busbar systems, box terminal, cable outlet toward bottom, with auxiliary switches 1 CO, cover plane 32/60/70 mm
product designationFuse switch disconnector
busbar designbusbar thickness 5 veya 10 mm
design of the safety monitoringWithout
design of the load switch strip formYok
number of poles3
type of devicefor 60 mm busbar systems
Ürün Hakkında
SENTRON, fuse switch disconnector 3NP1, 3-pole, NH000 narrow, 125 A, for 60 mm busbar systems, box terminal, cable outlet toward bottom, with auxiliary switches 1 CO, cover plane 32/60/70 mm
Siemens 3NP1113-1BC26
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product designationFuse switch disconnector
busbar designbusbar thickness 5 veya 10 mm
design of the safety monitoringWithout
design of the load switch strip formYok
type of the driving mechanism motor driveYok
General technical data
number of poles3
type of devicefor 60 mm busbar systems
size of disconnecting link0
size of fuse linkNH000
let-through current with closed switch maximum15 kA
mechanical service life (operating cycles) typical2.000
I2t value with closed switch maximum150 kA²·s
at AC-22 B0,65
at AC-23 B0,45
fuse systemLV HRC fuse
degree of pollution2
Voltage
rated value800 V
with degree of pollution 2 at AC rated value800 V
power factor at AC-21 B0,95
surge voltage resistance rated value6 kV
— at 35 °C rated value125 A
— at 40 °C rated value111 A
— at 45 °C rated value95 A
— at 50 °C rated value76 A
— at 55 °C rated value51 A
— at AC-21 B at 240 V rated value125 A
— at AC-21 B at 400 V rated value125 A
— at AC-21 B at 500 V rated value125 A
— at AC-21 B at 690 V rated value80 A
— at AC-22 B at 240 V rated value125 A
— at AC-22 B at 400 V rated value125 A
— at AC-22 B at 500 V rated value125 A
— at AC-23 B at 400 V rated value63 A
— at AC-23 B at 240 V rated value63 A
let-through current with high-speed activation maximum10 kA
at AC rated value maximum690 V
Protection class
with closed switch with cover or cable lug coverIP30
with closed switch without cover or cable lug coverIP10
openIP10
Dissipation
with conventional rated thermal current without fuse per pole4,6 W
with conventional rated thermal current without fuse per device13,8 W
for rated value of the current at AC in hot operating state per pole13,6 W
of the fuse per fuse maximum9 W
Main circuit
rated value125 A
Auxiliary circuit
number of CO contacts for auxiliary contacts1
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
Suitability
suitability for use main switchYok
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchYok
suitability for use maintenance/repair switchVar
Product details
product function phase failure monitoringYok
undervoltage releaseYok
undervoltage release with leading contactYok
product feature sealableVar
product extension auxiliary switchVar
product extension optional locking capabilityVar
product extension optional phase failure monitoringYok
product extension optional fuse monitoringYok
product extension optional voltage triggerYok
product extension optional overvoltage protection monitoringYok
Product function
product function overvoltage protection monitoringYok
Short circuit
at AC at 240 V with high-speed activation rated value80 kA
at AC at 500 V with high-speed activation rated value80 kA
at AC at 690 V with high-speed activation rated value80 kA
with closed switch at AC at 240 V rated value80 kA
with closed switch at AC at 500 V rated value80 kA
with closed switch at AC at 690 V rated value80 kA
Connections
arrangement of electrical connectors for main current circuitother
solid or stranded minimum1,5 mm²
solid or stranded maximum50 mm²
finely stranded with core end processing minimum1,5 mm²
finely stranded with core end processing maximum35 mm²
stranded minimum16 mm²
stranded maximum50 mm²
minimum4 N·m
maximum5 N·m
type of connectable conductor cross-sections of the laminated conductors maximum6 x (9 x 0,8) mm
type of connection technologyBox terminal
Mechanical Design
height208 mm
width53 mm
minimum12 mm
maximum30 mm
depth129 mm
fastening methodbusbar
floor mountingYok
rail mountingVar
mounting positionyatay/dikey
busbar center-to-center spacing60 mm
Net Weight750 g
Environmental conditions
minimum-25 °C
maximum70 °C
minimum-50 °C
maximum80 °C
Certificates
reference code according to IEC 81346-2Q
Aksesuarlar 26
Siemens 3NP1113-1BC26 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3NP1900-1EF00 | Aksesuar | |
| 3NG1002 | Aksesuar · NH fuse system | |
| 3NP1924-1MA20 | Aksesuar | |
| 3NP1913-1CF00 | Aksesuar | |
| 3NP1913-1CB00 | Aksesuar | |
| 3NP1910-1FA00 | Aksesuar | |
| 3NP1923-1BG40 | Aksesuar | |
| 3NP1913-1GA00 | Bileşen | |
| 3NP1913-1CA10 | Bileşen | |
| 3ND1830-8 | Seçmeli zorunlu ürün | |
| 3ND1824 | Seçmeli zorunlu ürün | |
| 3ND1822 | Seçmeli zorunlu ürün | |
| 3NA7830 | Seçmeli zorunlu ürün | |
| 3NA7824 | Seçmeli zorunlu ürün | |
| 3NA7822 | Seçmeli zorunlu ürün | |
| 3NA6830 | Seçmeli zorunlu ürün | |
| 3NA6824 | Seçmeli zorunlu ürün | |
| 3NA6822 | Seçmeli zorunlu ürün | |
| 3NA6830-4 | Seçmeli zorunlu ürün | |
| 3NA6824-4 | Seçmeli zorunlu ürün | |
| 3NA6822-4 | Seçmeli zorunlu ürün | |
| 3NE1820-0 | Seçmeli zorunlu ürün | |
| 3NE1818-0 | Seçmeli zorunlu ürün | |
| 3NA3830 | Seçmeli zorunlu ürün | |
| 3NA3824 | Seçmeli zorunlu ürün | |
| 3NA3822 | Seçmeli zorunlu ürün |
