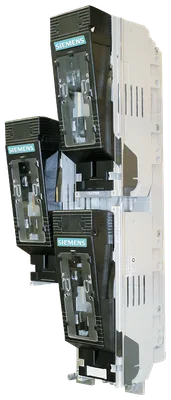

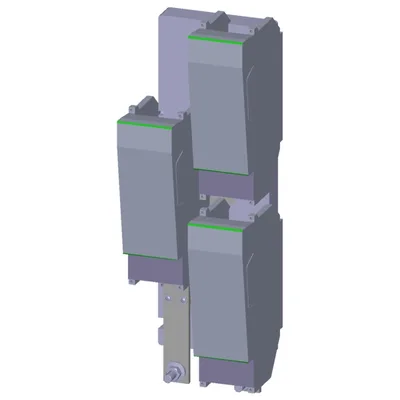

Siemens 3NJ5643-0BB00
In-line sigorta anahtar disconnector 1-pole selectable, gR 4A, I=1250 A Flat klemens M16x 60
product brand nameSENTRON
product designationFuse switch disconnectors
design of the productin in-line design
design of the auxiliary releaseWithout
design of the safety monitoringWithout
design of the load switch strip formVar
Ürün Hakkında
In-line sigorta anahtar disconnector 1-pole selectable, gR 4A, I=1250 A Flat klemens M16x 60
Siemens 3NJ5643-0BB00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationFuse switch disconnectors
design of the productin in-line design
type of switching contact double breaking switching contactYok
design of the auxiliary releaseWithout
design of the safety monitoringWithout
design of the load switch strip formVar
General technical data
number of poles3
number of poles note1-pole switchable
type of deviceFor busbar system 185 mm
size of fuse linkNH4a
fuse systemLV HRC fuse
Voltage
insulation voltage rated value1.000 V
at AC-21 B at 400 V rated value1.250 A
at AC-21 B at 500 V rated value1.250 A
at AC-21 B at 690 V rated value1.250 A
at AC-23 B at 400 V rated value1.250 A
at AC rated value690 V
at DC rated value440 V
Protection class
protection class IP on the frontIP30
Dissipation
for rated value of the current at AC in hot operating state per pole63,3 W
maximum190 W
Main circuit
rated value1.250 A
with capacitive load at 400 V rated value700 A
with capacitive load at 500 V rated value520 A
Suitability
suitability for operationSystem protection
suitability for use main switchYok
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchYok
suitability for use maintenance/repair switchYok
Product details
voltage triggerYok
undervoltage releaseYok
undervoltage release with leading contactYok
Short circuit
at AC-21 B at 400 V rated value50 kA
at AC-21 B at 500 V rated value50 kA
at AC-21 B at 690 V rated value50 kA
at AC-22 B at 400 V rated value50 kA
at AC-22 B at 500 V rated value50 kA
at AC-22 B at 690 V rated value50 kA
at AC-23 B at 400 V rated value50 kA
at AC-23 B at 500 V rated value50 kA
at AC-23 B at 690 V rated value50 kA
Connections
arrangement of electrical connectors for main current circuitFlat terminal
type of electrical connection for main current circuitbusbar connection

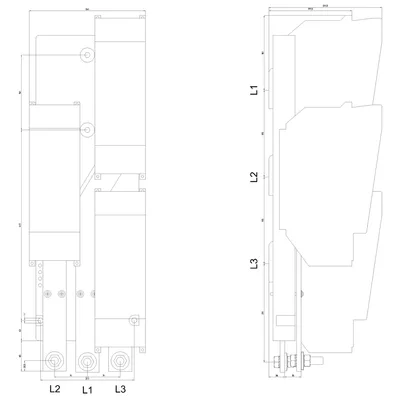

Mechanical Design
height775 mm
width250 mm
depth241 mm
fastening methodStehbolzenanschluss, M16 x 60 mm
mounting positiondikey
busbar center-to-center spacing185 mm
40 mmYok
50 mmYok
60 mmYok
100 mmYok
185 mmVar
Net Weight20,5 kg
Environmental conditions
minimum-25 °C
maximum55 °C
Aksesuarlar 7
Siemens 3NJ5643-0BB00 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3NJ4912-2CA00 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4912-2DA00 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4912-2AA00 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4912-2BA00 | Aksesuar · Fuse switch disconnectors | |
| 3NA3475 | Seçmeli zorunlu ürün | |
| 3NA3480 | Seçmeli zorunlu ürün | |
| 3NA3472 | Seçmeli zorunlu ürün |
