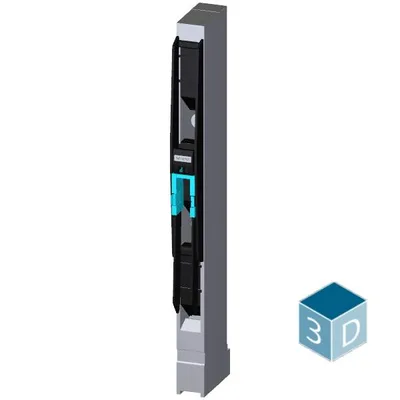

Siemens 3NJ4103-3BF01
In-line fuse switch disconnector 3-pole selectable, Sz. 00 I=160 A, U=690 V AC Flat terminal M8 for cable lug 1x 10-95 mm2
product brand nameSENTRON
product designationFuse switch disconnectors
design of the productin in-line design
design of the auxiliary releaseWithout
design of the safety monitoringWithout
design of the load switch strip formVar
Ürün Hakkında
In-line fuse switch disconnector 3-pole selectable, Sz. 00 I=160 A, U=690 V AC Flat terminal M8 for cable lug 1x 10-95 mm2
Siemens 3NJ4103-3BF01
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationFuse switch disconnectors
design of the productin in-line design
type of switching contact double breaking switching contactYok
design of the auxiliary releaseWithout
design of the safety monitoringWithout
design of the load switch strip formVar
General technical data
number of poles3
number of poles note3-pole switchable
type of deviceFor busbar system 185 mm
size of fuse linkNH000, NH00
fuse systemLV HRC fuse
Voltage
insulation voltage rated value800 V
at AC-21 B at 400 V rated value160 A
at AC-21 B at 500 V rated value160 A
at AC-21 B at 690 V rated value160 A
at AC-23 B at 400 V rated value160 A
at AC rated value690 V
at DC rated value440 V
Protection class
protection class IP on the frontIP30
Dissipation
for rated value of the current at AC in hot operating state per pole6 W
maximum18 W
Main circuit
rated value160 A
with capacitive load at 400 V rated value72 A
with capacitive load at 500 V rated value55 A
Suitability
suitability for operationSystem protection
suitability for use main switchYok
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchYok
suitability for use maintenance/repair switchYok
Product details
voltage triggerYok
undervoltage releaseYok
undervoltage release with leading contactYok
Short circuit
at AC-21 B at 400 V rated value50 kA
at AC-21 B at 500 V rated value50 kA
at AC-21 B at 690 V rated value50 kA
at AC-22 B at 400 V rated value50 kA
at AC-22 B at 500 V rated value50 kA
at AC-22 B at 690 V rated value50 kA
at AC-23 B at 400 V rated value50 kA
at AC-23 B at 500 V rated value50 kA
at AC-23 B at 690 V rated value50 kA
Connections
arrangement of electrical connectors for main current circuitScrew terminal
type of electrical connection for main current circuitscrew-type terminals
Mechanical Design
height647 mm
width50 mm
depth150 mm
fastening methodFlachanschluss, M 8
mounting positiondikey, yatay
busbar center-to-center spacing185 mm
40 mmYok
50 mmYok
60 mmYok
100 mmYok
185 mmVar
Net Weight2,174 kg
Environmental conditions
minimum-25 °C
maximum55 °C
Aksesuarlar 31
Siemens 3NJ4103-3BF01 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3NJ4912-1FA00 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4912-1FA01 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4912-2CA00 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4912-2DA00 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4911-1AA00 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4912-2AA00 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4912-2BA00 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4918-0AA00 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4913-1AA01 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4918-0DC02 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4911-4AA00 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4915-1FB20 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4915-1FB10 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4915-1BA00 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4915-1CA00 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4915-1EA10 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4915-1EA20 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4915-1EB10 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4915-1EB20 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4915-1FA10 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4915-1FA11 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4915-1FA20 | Aksesuar · Fuse switch disconnectors | |
| 3NJ4915-1FB11 | Aksesuar · Fuse switch disconnectors | |
| 8GK4751-4KK13 | Uyumlu ürün | |
| 8GK4751-4KK23 | Uyumlu ürün | |
| 8GK4751-4KK33 | Uyumlu ürün | |
| 8GK4751-4KK10 | Uyumlu ürün | |
| 8GK4751-4KK20 | Uyumlu ürün | |
| 8GK4751-4KK30 | Uyumlu ürün | |
| 3NA3030 | Seçmeli zorunlu ürün | |
| 3NA3032 | Seçmeli zorunlu ürün |
