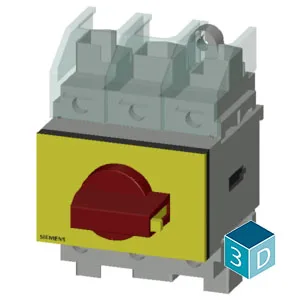

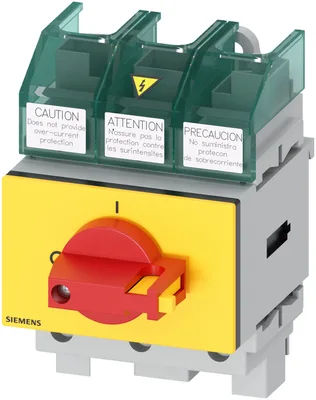

Siemens 3LD5200-0TK13
SENTRON 3LD5 switch disconnector UL, EMERGENCY-OFF switch, 3-pole, approved according to UL 489, UL 60947-4-1 and IEC 60947-3, UL: 60 A, SCCR 50 kA at 480 V AC, operational power @ 480 V AC 3-phase: 40 hp, IEC: 63 A, operational power at AC-23 A at 400 V: 30 kW, floor mounting with direct operating mechanism, red/yellow including terminal covers for the infeed side
product brand nameSENTRON
product designationSwitch disconnector
design of the productEMERGENCY-OFF switch
type of switchFloor mounting with direct drive
design of the actuating elementselector switch
color of the actuating elementred
Ürün Hakkında
SENTRON 3LD5 switch disconnector UL, EMERGENCY-OFF switch, 3-pole, approved according to UL 489, UL 60947-4-1 and IEC 60947-3, UL: 60 A, SCCR 50 kA at 480 V AC, operational power @ 480 V AC 3-phase: 40 hp, IEC: 63 A, operational power at AC-23 A at 400 V: 30 kW, floor mounting with direct operating mechanism, red/yellow including terminal covers for the infeed side
Siemens 3LD5200-0TK13
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationSwitch disconnector
design of the productEMERGENCY-OFF switch
display version for switch position indicator manual operation1 ON - 0 OFF
type of switchFloor mounting with direct drive
design of the actuating elementselector switch
color of the actuating elementred
design of handleknob-operated mechanism, red/yellow
type of the driving mechanism motor driveYok
General technical data
number of poles3
size of switch disconnector2
mechanical service life (operating cycles) typical100.000
at AC-23 A at 690 V6.000
operating frequency maximum50 1/h
degree of pollution3
Voltage
insulation voltage rated value690 V
surge voltage resistance rated value6 kV
at AC rated value690 V
minimum50 Hz
maximum60 Hz
Protection class
protection class IPIP00
protection class IP on the frontIP00
Dissipation
power loss [W] for rated value of the current at AC in hot operating state per pole0,7 W
Main circuit
at AC-21 at 690 V rated value63 A
at AC-21 A at 240 V rated value63 A
at AC-21 A at 400 V rated value63 A
at AC-21 A at 440 V rated value63 A
at AC-23 A at 400 V rated value63 A
at AC-23 A at 240 V rated value18,5 kW
at AC-23 A at 400 V rated value30 kW
at AC-23 A at 440 V rated value30 kW
at AC-23 A at 690 V rated value37 kW
at AC-3 at 240 V rated value18,5 kW
at AC-3 at 400 V rated value30 kW
at AC-3 at 690 V rated value30 kW
Auxiliary circuit
number of CO contacts for auxiliary contacts0
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
operating voltage of auxiliary contacts at AC maximum500 V
continuous current of the auxiliary contact rated value10 A
insulation voltage of the auxiliary switch rated value500 V
Suitability
suitability for use main switchVar
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchVar
suitability for use maintenance/repair switchVar
Product details
product feature can be locked into OFF positionVar
Accessories
motor driveYok
voltage triggerYok
number of connectable NC contacts for auxiliary contacts attachable maximum2
number of connectable NO contacts for auxiliary contacts attachable maximum4
number of connectable CO contacts for auxiliary contacts attachable maximum0
number of bracket locks maximum1
hasp thickness of the bracket locks4... 6 mm
Short circuit
at 440 V by gG fuse rated value50 kA
at 690 V by gG fuse rated value50 kA
at 240 V for combination switch + gG fuse maximum8 kA
at 440 V for combination switch + gG fuse maximum8 kA
at 690 V for combination switch + gG fuse maximum permissible7 kA
at 240 V for combination switch + gG fuse maximum30 kA²·s
at 440 V for combination switch + gG fuse maximum30 kA²·s
at 690 V for combination switch + gG fuse maximum24 kA²·s
for short-circuit protection of the main circuit requiredfuse gL/gG: 63 A
for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 10 A
operational current of upstream fuse rated value63 A
according UL
operational current at AC according to UL 489/UL 60947-4-1 rated value60 A
operational current at AC according to UL 508/UL 60947-4-1 rated value60 A
operating voltage at AC at 50/60 Hz according to UL 489 rated value480 V
operating voltage at AC at 50/60 Hz according to UL 508/UL 60947-4-1 rated value480 V
active power [hp] at AC at 480 V according to UL 508/UL 60947-4-1 rated value30
short-time withstand current (SCCR) at 480 V according to UL 508/UL 60947-4-1 and UL 48950 kA
continuous current of upstream fuse according to UL rated value60 A
type of fuse according to ULClass J
Connections
1
12
minimum12
maximum1
minimum10
maximum4
solid1x (4...50mm²)
finely stranded with core end processing1x (4...35mm²)
stranded1x (4...50mm²)
solid2x (0,75... 2,5 mm²), 1x 4 mm²
finely stranded with core end processing2x (0,75... 1,5 mm²), 1x 2,5 mm²
stranded2x (0,75... 2,5 mm²), 1x 4 mm²
for main current circuitbox terminal
for auxiliary contactsconnection terminals

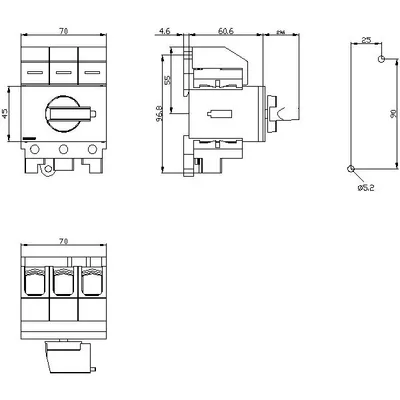

Mechanical Design
height106 mm
width70 mm
depth95 mm
type of devicefixed mounting
fastening methodBuilt-in unit fixed-mounted version
4-hole front mountingYok
front mounting with central attachmentYok
rail mountingVar
Net Weight439 g
Environmental conditions
minimum-25 °C
maximum55 °C
minimum-25 °C
maximum55 °C
