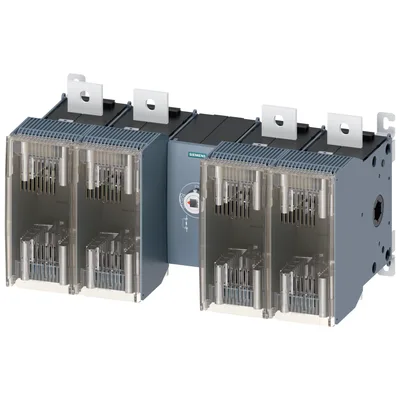

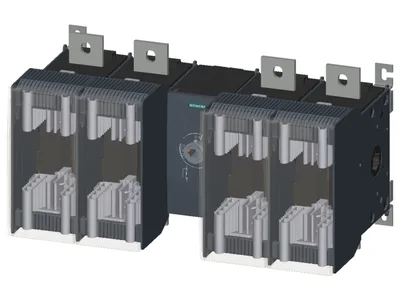

Siemens 3KF5480-0MF11
anahtar disconnector ile sigorta 800 A, gövde boyu 5, 4-pole için LV HRC sigorta boyut 2 ve 3 ön çalışma mechanism centr temel ünite olmadan handle flat konnektör olmadan fuses
product brand nameSENTRON
product designation3KF switch disconnector with fuses
design of the product3KF switch disconnector with fuses
product version3KF NH
design of the actuating elementwithout
design of handleWithout
Ürün Hakkında
anahtar disconnector ile sigorta 800 A, gövde boyu 5, 4-pole için LV HRC sigorta boyut 2 ve 3 ön çalışma mechanism centr temel ünite olmadan handle flat konnektör olmadan fuses
Siemens 3KF5480-0MF11
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designation3KF switch disconnector with fuses
design of the product3KF switch disconnector with fuses
product version3KF NH
design of the actuating elementwithout
design of handleWithout
direction of actuationfrom the front
type of the driving mechanism motor driveYok
number of poles4
size of disconnecting link3 ve 2
size of switch disconnector5
size of fuse linkNH2, NH3
mechanical service life (operating cycles) typical6.000
at AC-23 A at 440 V1.500
at AC-23 A at 690 V1.000
at DC-23 A at 440 V500
with closed switch for combination switch + fuse at 500 V maximum4.100.000 A²·s
with closed switch for combination switch + fuse at 400 V maximum4.100.000 A²·s
with closed switch at 690 V for combination switch + gG fuse maximum2.050.000 A²·s
of the fuse at 500 V maximum permissible10.400.000 A²·s
of the gG fuse at 690 V maximum permissible7.000.000 A²·s
of the aM fuse at 690 V maximum permissible7.000.000 A²·s
position of the switch operating mechanismcenter right
fuse systemLV HRC fuse
overvoltage categoryIV
with degree of pollution 2 at DC rated value440 / 3
with degree of pollution 3 at DC rated value440 / 3
surge voltage resistance rated value12 kV
Besleme gerilimi
operating voltage at AC rated value maximum690 V
Protection class
protection class IPIP00
with closed switch with cover or cable lug coverIP20
on the frontIP00
Dissipation
with conventional rated thermal current per pole50 W
with conventional rated thermal current per device150 W
with conventional rated thermal current without fuse per pole50 W
with conventional rated thermal current without fuse per device150 W
for rated value of the current at AC in hot operating state per pole50 W
of the fuse per fuse maximum60 W
Main circuit
operating power at AC-23 A at 500 V rated value560 kW
operational current rated value800 A
Auxiliary circuit
number of connected NC contacts for auxiliary contacts0
number of connected NO contacts for auxiliary contacts0
number of connected CO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts0
number of NC contacts for auxiliary contacts8
number of NO contacts for auxiliary contacts8
suitability for use main switchVar
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchVar
suitability for use maintenance/repair switchVar
product feature interlockYok
product function phase failure monitoringYok
voltage triggerYok
undervoltage releaseYok
undervoltage release with leading contactYok
product feature sealableVar
product extension auxiliary switchVar
product extension optional locking capabilityVar
product extension optional motor driveYok
product extension optional fuse monitoringVar
fuse monitoringYok
overvoltage protection monitoringYok
Short circuit
short-circuit current making capacity (Icm) for switch disconnector at 690 V AC/440 V DC without fuse link rated value minimum44 kA
at 500 V by gG fuse rated value100 kA
at 690 V by gG fuse rated value80 kA
Connections
arrangement of electrical connectors for main current circuitTop ve bottom
minimum50 N·m
maximum75 N·m
type of connectable conductor cross-sections for aluminum conductor stranded with lug1x (25... 300 mm²), 2x (25... 300 mm²)
for copper busbar2x (50 x 5 mm²)
stranded with lug according to DIN 462341x (25... 240 mm²), 2x (25... 240 mm²)
type of electrical connection for main current circuitflat connector

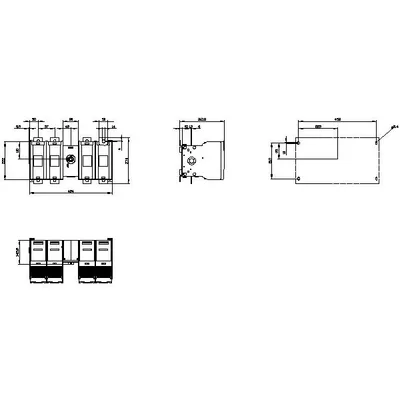

Mechanical Design
height270 mm
width490 mm
depth262 mm
fastening methodfloor mounting
4-hole front mountingYok
front mounting with central attachmentYok
rail mountingYok
mounting positionany
Net Weight21,2 kg
Environmental conditions
minimum-25 °C
maximum70 °C
minimum-50 °C
maximum80 °C
Aksesuarlar 21
Siemens 3KF5480-0MF11 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1400-1AA10-1FA0 | Aksesuar · Commanding and signaling devices | |
| 3KF9512-1AA00 | Aksesuar | |
| 3KF9512-0CA00 | Aksesuar | |
| 3KF9506-7AA00 | Aksesuar | |
| 3KF9506-0AA00 | Aksesuar | |
| 3KF9505-0AA00 | Aksesuar | |
| 3KD9508-6 | Aksesuar | |
| 3SU1400-1AA10-1PA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1NA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1MA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1LA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1QA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1EA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1DA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1CA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1BA0 | Aksesuar · Commanding and signaling devices | |
| 3NE1333-0 | Seçmeli zorunlu ürün | |
| 3NE1333-2 | Seçmeli zorunlu ürün | |
| 3KF9512-0AA00 | Seçmeli zorunlu ürün | |
| 3NE1333-3 | Seçmeli zorunlu ürün | |
| 3NE1334-0 | Seçmeli zorunlu ürün |
