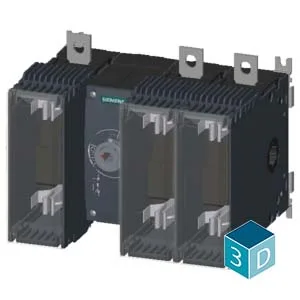

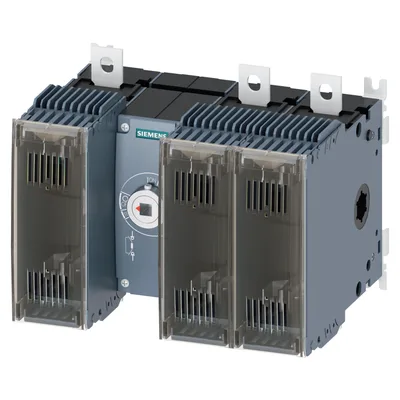

Siemens 3KF3325-0MF11

switch disconnector with fuse 250 A, frame size 3, 3-pole for LV HRC fuse size 0 and 1 front operating mechanism centr basic unit without handle flat connector without fuses

SiemensMFR # 3KF3325-0MF11SKU # YLSULZ0YQ4ZYL7

product brand nameSENTRON

product designation3KF switch disconnector with fuses

design of the product3KF switch disconnector with fuses

product version3KF NH

design of the actuating elementwithout

design of handleWithout

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

switch disconnector with fuse 250 A, frame size 3, 3-pole for LV HRC fuse size 0 and 1 front operating mechanism centr basic unit without handle flat connector without fuses

Siemens 3KF3325-0MF11

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Model

product brand nameSENTRON

product designation3KF switch disconnector with fuses

design of the product3KF switch disconnector with fuses

product version3KF NH

design of the actuating elementwithout

design of handleWithout

direction of actuationfrom the front

type of the driving mechanism motor driveYok

number of poles3

size of disconnecting link1 ve 0

size of switch disconnector3

size of fuse linkNH0, NH1

mechanical service life (operating cycles) typical10.000

at AC-23 A at 440 V5.000

at AC-23 A at 690 V4.000

at DC-23 A at 440 V1.000

with closed switch for combination switch + fuse at 500 V maximum437.000 A²·s

with closed switch for combination switch + fuse at 400 V maximum437.000 A²·s

with closed switch at 690 V for combination switch + gG fuse maximum490.100 A²·s

of the fuse at 500 V maximum permissible1.500.000 A²·s

of the gG fuse at 690 V maximum permissible940.000 A²·s

of the aM fuse at 690 V maximum permissible1.400.000 A²·s

position of the switch operating mechanismcenter left

fuse systemLV HRC fuse

overvoltage categoryIV

with degree of pollution 2 at DC rated value440 / 3

with degree of pollution 3 at DC rated value440 / 3

surge voltage resistance rated value12 kV

Besleme gerilimi

operating voltage at AC rated value maximum690 V

Protection class

protection class IPIP00

with closed switch with cover or cable lug coverIP20

on the frontIP00

Dissipation

with conventional rated thermal current per pole15 W

with conventional rated thermal current per device45 W

with conventional rated thermal current without fuse per pole15 W

with conventional rated thermal current without fuse per device45 W

for rated value of the current at AC in hot operating state per pole15 W

of the fuse per fuse maximum25,5 W

Main circuit

operating power at AC-23 A at 500 V rated value160 kW

operational current rated value250 A

Auxiliary circuit

number of connected NC contacts for auxiliary contacts0

number of connected NO contacts for auxiliary contacts0

number of connected CO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts0

number of NC contacts for auxiliary contacts8

number of NO contacts for auxiliary contacts8

suitability for use main switchVar

suitability for use switch disconnectorVar

suitability for use EMERGENCY OFF switchVar

suitability for use maintenance/repair switchVar

product feature interlockYok

product function phase failure monitoringYok

voltage triggerYok

undervoltage releaseYok

undervoltage release with leading contactYok

product feature sealableVar

product extension auxiliary switchVar

product extension optional locking capabilityVar

product extension optional motor driveYok

product extension optional fuse monitoringVar

fuse monitoringYok

overvoltage protection monitoringYok

Short circuit

short-circuit current making capacity (Icm) for switch disconnector at 690 V AC/440 V DC without fuse link rated value minimum13,6 kA

at 500 V by gG fuse rated value100 kA

at 690 V by gG fuse rated value100 kA

Connections

arrangement of electrical connectors for main current circuitTop ve bottom

minimum30 N·m

maximum44 N·m

type of connectable conductor cross-sections for aluminum conductor stranded with lug1x (6... 240 mm²), 2x (6... 120 mm²)

for copper busbar1x (25 x 3 mm²)

stranded with lug according to DIN 462341x (6... 240 mm²), 2x (6... 120 mm²)

stranded with lug according to DIN 462351x (6... 240 mm²), 2x (6... 120 mm²)

type of electrical connection for main current circuitflat connector

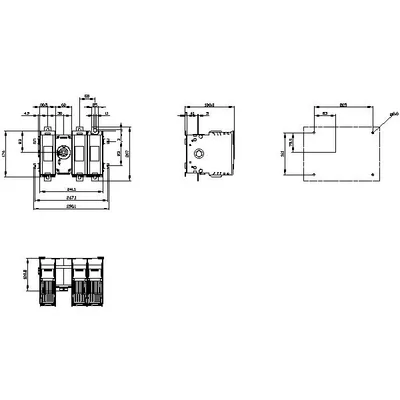

Mechanical Design

height207 mm

width247,7 mm

depth188,5 mm

fastening methodfloor mounting

4-hole front mountingYok

front mounting with central attachmentYok

rail mountingYok

mounting positionany

Net Weight5,315 kg

Environmental conditions

minimum-25 °C

maximum70 °C

minimum-50 °C

maximum80 °C

Aksesuarlar 23

Siemens 3KF3325-0MF11 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3SU1400-1AA10-1FA0	Aksesuar · Commanding and signaling devices
3KF9312-0CA00	Aksesuar
3KF9306-7AA00	Aksesuar
3KF9306-0AA00	Aksesuar
3KF9304-7	Aksesuar
3KF9304-6	Aksesuar
3KD9408-6	Aksesuar
3SU1400-1AA10-1PA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1NA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1MA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1LA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1QA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1EA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1DA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1CA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1BA0	Aksesuar · Commanding and signaling devices
3KF9305-0AA00	Aksesuar
3KF9301-1AA00	Seçmeli zorunlu ürün
3KF9412-0AA00	Seçmeli zorunlu ürün
8UD1141-3AF25	Seçmeli zorunlu ürün
8UD1141-3AF21	Seçmeli zorunlu ürün
3KF9301-2AA00	Seçmeli zorunlu ürün
3NA3036	Seçmeli zorunlu ürün
