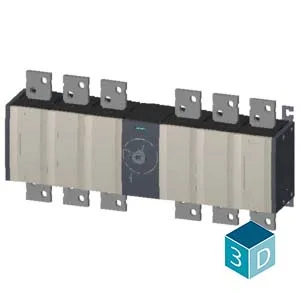

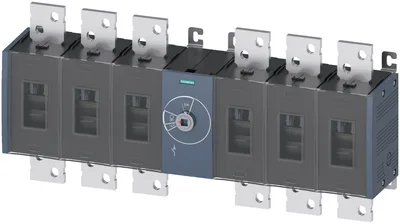

Siemens 3KD5060-0RE20-0
anahtar disconnector 1000 A, boyut 5, 6-pole DC ön çalışma mechanism center temel ünite olmadan handle flat klemens
product brand nameSENTRON
product designation3KD switch disconnector
design of the productDC switch
design of the actuating elementWithout handle
type of the driving mechanismFront operating mechanism
number of poles6
Ürün Hakkında
anahtar disconnector 1000 A, boyut 5, 6-pole DC ön çalışma mechanism center temel ünite olmadan handle flat klemens
Siemens 3KD5060-0RE20-0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designation3KD switch disconnector
design of the productDC switch
display version for switch position indicator door-coupling rotary operating mechanismON-OFF
design of the actuating elementWithout handle
type of the driving mechanismFront operating mechanism
type of the driving mechanism motor driveYok
General technical data
number of poles6
type of devicefixed mounting
size of switch disconnector5
mechanical service life (operating cycles) typical8.000
at DC-21 A at 1000 V100
of the gG/aM SITOR fuse at 1000 V maximum permissible1.800.000 A²·s
position of the switch operating mechanismafter the third pole
overvoltage categoryIV
Voltage
with degree of pollution 2 at DC rated value1200 V / 6
with degree of pollution 3 at DC rated value1200 V / 6
with degree of pollution 2 at DC rated value1.250 V
with degree of pollution 3 at DC rated value1.250 V
surge voltage resistance rated value12 kV
Protection class
protection class IPIP00
with closed switch with cover or cable lug coverIP20
on the frontIP00
Dissipation
with conventional rated thermal current per pole20 W
with conventional rated thermal current per device120 W
for rated value of the current at AC in hot operating state per pole20 W
Main circuit
operational current rated value1.000 A
Auxiliary circuit
number of connected NC contacts for auxiliary contacts0
number of connected NO contacts for auxiliary contacts0
number of connected CO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts0
number of NC contacts for auxiliary contacts8
number of NO contacts for auxiliary contacts8
Suitability
suitability for use main switchVar
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchVar
suitability for use according to IEC 62626-1 safety switchYok
suitability for use maintenance/repair switchVar
Product details
product feature interlockYok
trip indicatorYok
voltage triggerYok
undervoltage releaseYok
undervoltage release with leading contactYok
product extension auxiliary switchVar
product extension optional motor driveYok
product extension optional voltage triggerYok
Short circuit
at DC at 1200 V without fuse link rated value minimum28,4 kA
Connections
stranded with lug1x (120... 300 mm²), 2x (95... 300 mm²)
with combination of Al conductor+switch680A / 2x 300mm²
stranded with lug according to DIN 462341x (120... 240 mm²), 2x (95... 240 mm²)
stranded with lug according to DIN 462351x (120... 240 mm²), 2x (95... 240 mm²)
type of electrical connection for main current circuitflat connector

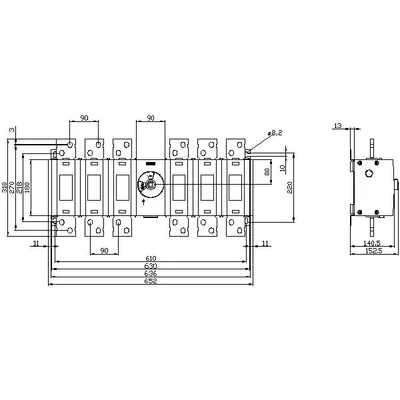

Mechanical Design
height310 mm
width652 mm
depth153 mm
fastening methodscrew fixing
4-hole front mountingYok
front mounting with central attachmentYok
rail mountingYok
mounting positionany
Net Weight29,3 kg
Environmental conditions
minimum-25 °C
maximum70 °C
minimum-50 °C
maximum80 °C
Certificates
reference code according to IEC 81346-2Q
Aksesuarlar 7
Siemens 3KD5060-0RE20-0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3KF9512-0AA00 | Aksesuar | |
| 3KD9511-1 | Aksesuar | |
| 8UD1161-4AE21 | Seçmeli zorunlu ürün | |
| 8UD1161-4AF21 | Seçmeli zorunlu ürün | |
| 8UD1161-4AF25 | Seçmeli zorunlu ürün | |
| 3KD9501-1 | Seçmeli zorunlu ürün | |
| 3KD9501-2 | Seçmeli zorunlu ürün |
