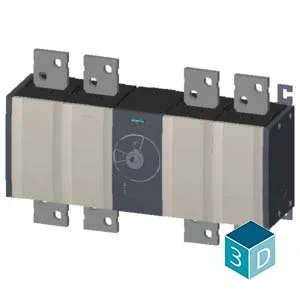

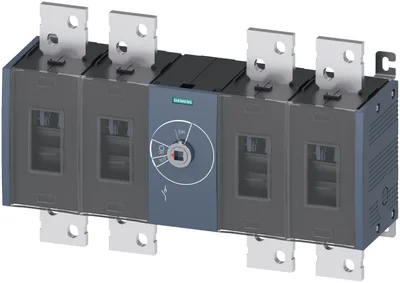

Siemens 3KD5040-0RE20-0
anahtar disconnector 1000 A, boyut 5, 4-pole ön çalışma mechanism center temel ünite olmadan handle flat klemens
product brand nameSENTRON
product designation3KD switch disconnector
design of the productSwitch
design of the actuating elementWithout handle
type of the driving mechanismFront operating mechanism
number of poles4
Ürün Hakkında
anahtar disconnector 1000 A, boyut 5, 4-pole ön çalışma mechanism center temel ünite olmadan handle flat klemens
Siemens 3KD5040-0RE20-0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designation3KD switch disconnector
design of the productSwitch
display version for switch position indicator door-coupling rotary operating mechanismON-OFF
design of the actuating elementWithout handle
type of the driving mechanismFront operating mechanism
type of the driving mechanism motor driveYok
General technical data
number of poles4
type of devicefixed mounting
size of switch disconnector5
mechanical service life (operating cycles) typical8.000
at DC-21 A at 1000 V100
at AC-23 A at 690 V500
at DC-23 A at 440 V500
with closed switch at 1000 V for combination switch +gG/aM SITOR fuse maximum3.492.000 A²·s
of the fuse at 500 V maximum permissible19.000.000 A²·s
of the gG/aM SITOR fuse at 1000 V maximum permissible1.800.000 A²·s
position of the switch operating mechanismafter the second pole
overvoltage in percent relative to the operating voltage at AC at 400, 500, 690 V at 50/60 Hz10 %
overvoltage categoryIV
degree of pollution3
Voltage
with degree of pollution 2 at DC rated value440 V / 3
with degree of pollution 3 at DC rated value440 V / 3
rated value1.000 V
surge voltage resistance rated value12 kV
operational current at AC-22 A at 1000 V maximum1.000 A
let-through current of the fuse at 500 V maximum permissible176.400 A
Besleme gerilimi
operating voltage at AC rated value1.000 V
Protection class
protection class IPIP00
with closed switch with cover or cable lug coverIP20
on the frontIP00
Dissipation
with conventional rated thermal current per pole20 W
with conventional rated thermal current per device80 W
for rated value of the current at AC in hot operating state per pole20 W
Main circuit
at AC-23 A at 500 V rated value710 kW
operational current rated value1.000 A
Auxiliary circuit
number of connected NC contacts for auxiliary contacts0
number of connected NO contacts for auxiliary contacts0
number of connected CO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts0
number of NC contacts for auxiliary contacts8
number of NO contacts for auxiliary contacts8
Suitability
suitability for use main switchVar
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchVar
suitability for use according to IEC 62626-1 safety switchYok
suitability for use maintenance/repair switchVar
Product details
product feature interlockYok
trip indicatorYok
voltage triggerYok
undervoltage releaseYok
undervoltage release with leading contactYok
product extension auxiliary switchVar
product extension optional motor driveYok
product extension optional voltage triggerYok
Short circuit
short-time withstand current (Icw) at 1000 V AC/440 V DC limited to 1 s rated value55 kA
at 1000 V AC without fuse link rated value minimum121 kA
at DC 440 V without fuse link rated value minimum80 kA
without fuse link rated value minimum121 kA
at 415 V by molded case circuit breaker rated value65 kA
at 500 V by gG fuse rated value100 kA
at 690 V by gG fuse rated value100 kA
Connections
stranded with lug1x (120... 300 mm²), 2x (95... 300 mm²)
with combination of Al conductor+switch680A / 2x 300mm²
for copper busbar'2 x (60 x 10 mm²)
stranded with lug according to DIN 462341x (120... 240 mm²), 2x (95... 240 mm²)
stranded with lug according to DIN 462351x (120... 240 mm²), 2x (95... 240 mm²)
type of electrical connection for main current circuitflat connector

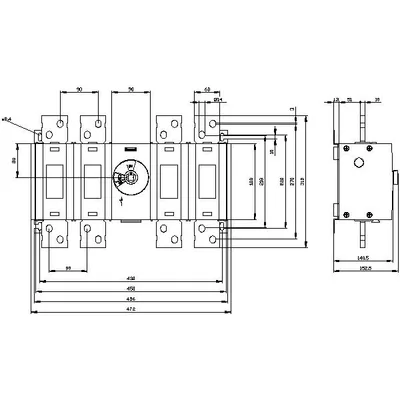

Mechanical Design
height310 mm
width472 mm
depth153 mm
fastening methodscrew fixing
4-hole front mountingYok
front mounting with central attachmentYok
rail mountingYok
mounting positionany
Net Weight21,06 kg
Environmental conditions
minimum-25 °C
maximum70 °C
minimum-50 °C
maximum80 °C
Certificates
reference code according to IEC 81346-2Q
Aksesuarlar 19
Siemens 3KD5040-0RE20-0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1400-1AA10-1FA0 | Aksesuar · Commanding and signaling devices | |
| 3KD9511-1 | Aksesuar | |
| 3KD9140-0 | Aksesuar | |
| 3KF9512-0AA00 | Aksesuar | |
| 3SU1400-1AA10-1PA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1NA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1MA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1LA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1QA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1EA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1DA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1CA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1BA0 | Aksesuar · Commanding and signaling devices | |
| 3KD9508-8 | Aksesuar | |
| 8UD1161-4AF25 | Seçmeli zorunlu ürün | |
| 8UD1161-4AF21 | Seçmeli zorunlu ürün | |
| 8UD1161-4AE21 | Seçmeli zorunlu ürün | |
| 3KD9501-1 | Seçmeli zorunlu ürün | |
| 3KD9501-2 | Seçmeli zorunlu ürün |
