Siemens 3KD4430-0PE20-0 için nasıl fiyat teklifi alabilirim?

Siemens 3KD4430-0PE20-0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu YLSB1VPFLGZA6CN ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3KD4430-0PE20-0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3KD4430-0PE20-0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3KD4430-0PE20-0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

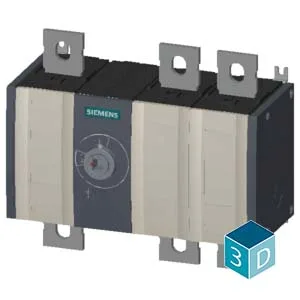

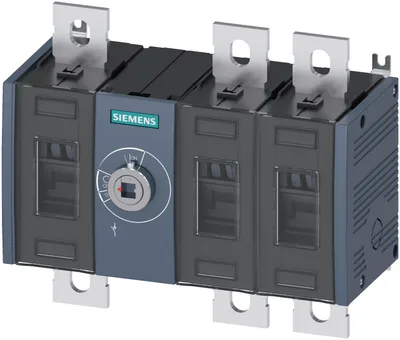

Siemens 3KD4430-0PE20-0

SWITCH-DISCONNECTOR 500A, FRAME SIZE 3, 3-POLE FRONT OPERATING CENTER BASIC UNIT WITHOUT HANDLE FLAT TERMINAL

SiemensMFR # 3KD4430-0PE20-0SKU # YLSB1VPFLGZA6CN

product brand nameSENTRON

product designation3KD switch disconnector

design of the productSwitch

design of the actuating elementWithout handle

type of the driving mechanismFront operating mechanism

number of poles3

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SWITCH-DISCONNECTOR 500A, FRAME SIZE 3, 3-POLE FRONT OPERATING CENTER BASIC UNIT WITHOUT HANDLE FLAT TERMINAL

Siemens 3KD4430-0PE20-0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Model

product brand nameSENTRON

product designation3KD switch disconnector

design of the productSwitch

display version for switch position indicator door-coupling rotary operating mechanismON-OFF

design of the actuating elementWithout handle

type of the driving mechanismFront operating mechanism

type of the driving mechanism motor driveYok

General technical data

number of poles3

type of devicefixed mounting

size of switch disconnector3

mechanical service life (operating cycles) typical15.000

at AC-23 A at 690 V1.000

at DC-23 A at 440 V1.000

with closed switch at 1000 V for combination switch +gG/aM SITOR fuse maximum239.650 A²·s

of the fuse at 500 V maximum permissible2.700.000 A²·s

of the gG fuse at 690 V maximum permissible2.500.000 A²·s

of the gG/aM SITOR fuse at 1000 V maximum permissible260.000 A²·s

of the molded case circuit breaker at 415 V maximum permissible4.750.000 A²·s

position of the switch operating mechanismafter the first pole

overvoltage in percent relative to the operating voltage at AC at 400, 500, 690 V at 50/60 Hz10 %

overvoltage categoryIV

degree of pollution3

Voltage

with degree of pollution 2 at DC rated value440 V / 3

with degree of pollution 3 at DC rated value440 V / 3

rated value1.000 V

surge voltage resistance rated value12 kV

operational current at AC-22 A at 1000 V maximum400 A

let-through current of the fuse at 500 V maximum permissible54.800 A

let-through current of the gG fuse at 690 V maximum permissible45.200 A

Besleme gerilimi

operating voltage at AC rated value1.000 V

Protection class

protection class IPIP00

with closed switch with cover or cable lug coverIP20

on the frontIP00

Dissipation

with conventional rated thermal current per pole17,2 W

with conventional rated thermal current per device51,6 W

for rated value of the current at AC in hot operating state per pole17,2 W

Main circuit

at AC-23 A at 500 V rated value250 kW

operational current rated value400 A

Auxiliary circuit

number of connected NC contacts for auxiliary contacts0

number of connected NO contacts for auxiliary contacts0

number of connected CO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts0

number of NC contacts for auxiliary contacts6

number of NO contacts for auxiliary contacts6

Suitability

suitability for use main switchVar

suitability for use switch disconnectorVar

suitability for use EMERGENCY OFF switchVar

suitability for use according to IEC 62626-1 safety switchYok

suitability for use maintenance/repair switchVar

Product details

product feature interlockYok

trip indicatorYok

voltage triggerYok

undervoltage releaseYok

undervoltage release with leading contactYok

product extension auxiliary switchVar

product extension optional motor driveYok

product extension optional voltage triggerYok

Short circuit

short-time withstand current (Icw) at 1000 V AC/440 V DC limited to 1 s rated value13 kA

at 1000 V AC without fuse link rated value minimum36 kA

at DC 440 V without fuse link rated value minimum36 kA

without fuse link rated value minimum36 kA

at 415 V by molded case circuit breaker rated value65 kA

at 500 V by gG fuse rated value100 kA

at 690 V by gG fuse rated value100 kA

Connections

stranded with lug1x (25... 240 mm²), 2x (25... 120 mm²)

with combination of Al conductor+switch315 A / 240 mm²

for copper busbar'1 x (30 x 10 mm²)

stranded with lug according to DIN 462341x (6... 240 mm²), 2x (6... 150 mm²)

stranded with lug according to DIN 462351x (16... 185 mm²), 2x (16...150 mm²)

type of electrical connection for main current circuitflat connector

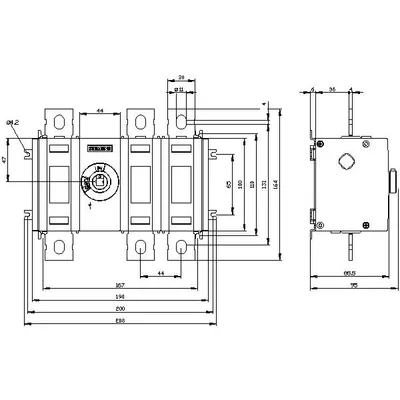

Mechanical Design

height164 mm

width190 mm

depth94 mm

fastening methodscrew fixing

4-hole front mountingYok

front mounting with central attachmentYok

rail mountingYok

mounting positionany

Net Weight2,834 kg

Environmental conditions

minimum-25 °C

maximum70 °C

minimum-50 °C

maximum80 °C

Certificates

reference code according to IEC 81346-2Q

Aksesuarlar 27

Siemens 3KD4430-0PE20-0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3SU1400-1AA10-1FA0	Aksesuar · Commanding and signaling devices
3KD9304-5	Aksesuar
3KD9304-8	Aksesuar
3KD9304-1	Aksesuar
3KD9140-0	Aksesuar
3KD9306-7	Aksesuar
3KD9306-0	Aksesuar
3SU1400-1AA10-1BA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1CA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1DA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1EA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1QA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1LA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1MA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1NA0	Aksesuar · Commanding and signaling devices
3KD9304-6	Aksesuar
3KD9304-7	Aksesuar
3KD9308-6	Aksesuar
3KF9112-0AA10	Aksesuar
3KF9212-0AA10	Aksesuar
3KD9318-0	Aksesuar
3KD9305-0	Aksesuar
3SU1400-1AA10-1PA0	Aksesuar · Commanding and signaling devices
8UD1141-2AF21	Seçmeli zorunlu ürün
8UD1141-2AF25	Seçmeli zorunlu ürün
3KD9301-1	Seçmeli zorunlu ürün
3KD9301-2	Seçmeli zorunlu ürün
