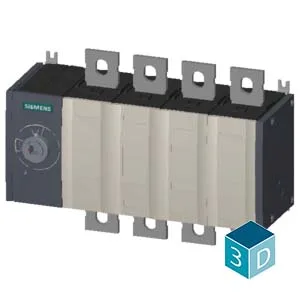

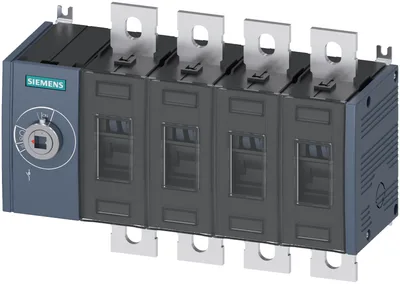

Siemens 3KD4340-0PE10-0
Switch disconnector 400 A, Size 3, 4-pole DC Front operating mechanism left Basic unit without handle flat terminal
product brand nameSENTRON
product designation3KD switch disconnector
design of the productDC switch
design of the actuating elementWithout handle
type of the driving mechanismFront operating mechanism
number of poles4
Ürün Hakkında
Switch disconnector 400 A, Size 3, 4-pole DC Front operating mechanism left Basic unit without handle flat terminal
Siemens 3KD4340-0PE10-0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designation3KD switch disconnector
design of the productDC switch
display version for switch position indicator door-coupling rotary operating mechanismON-OFF
design of the actuating elementWithout handle
type of the driving mechanismFront operating mechanism
type of the driving mechanism motor driveYok
General technical data
number of poles4
type of devicefixed mounting
size of switch disconnector3
mechanical service life (operating cycles) typical15.000
at DC-21 A at 1000 V200
position of the switch operating mechanismthe left end
overvoltage categoryIV
Voltage
with degree of pollution 2 at DC rated value1000 V / 4
with degree of pollution 2 at DC rated value1.000 V
with degree of pollution 3 at DC rated value1.000 V
surge voltage resistance rated value12 kV
Protection class
protection class IPIP00
with closed switch with cover or cable lug coverIP20
on the frontIP00
Dissipation
with conventional rated thermal current per pole14 W
with conventional rated thermal current per device56 W
for rated value of the current at AC in hot operating state per pole14 W
Main circuit
operational current rated value400 A
Auxiliary circuit
number of connected NC contacts for auxiliary contacts0
number of connected NO contacts for auxiliary contacts0
number of connected CO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts0
number of NC contacts for auxiliary contacts6
number of NO contacts for auxiliary contacts6
Suitability
suitability for use main switchVar
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchVar
suitability for use according to IEC 62626-1 safety switchYok
suitability for use maintenance/repair switchVar
Product details
product feature interlockYok
trip indicatorYok
voltage triggerYok
undervoltage releaseYok
undervoltage release with leading contactYok
product extension auxiliary switchVar
product extension optional motor driveYok
product extension optional voltage triggerYok
Short circuit
at DC at 1000 V without fuse link rated value minimum14,2 kA
Connections
stranded with lug1x (25... 240 mm²), 2x (25... 120 mm²)
with combination of Al conductor+switch315 A / 240 mm²
for copper busbar'1 x (30 x 10 mm²)
stranded with lug according to DIN 462341x (6... 240 mm²), 2x (6... 150 mm²)
stranded with lug according to DIN 462351x (16... 185 mm²), 2x (16...150 mm²)
type of electrical connection for main current circuitflat connector

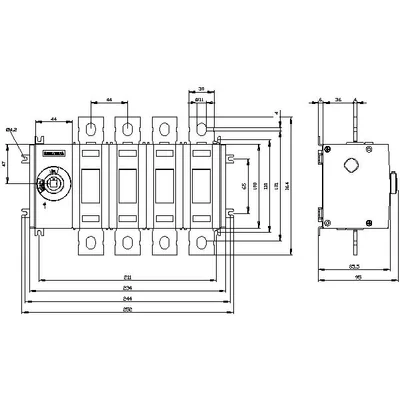

Mechanical Design
height164 mm
width234 mm
depth94 mm
fastening methodscrew fixing
4-hole front mountingYok
front mounting with central attachmentYok
rail mountingYok
mounting positionany
Net Weight153 kg
Environmental conditions
minimum-25 °C
maximum70 °C
minimum-50 °C
maximum80 °C
Certificates
reference code according to IEC 81346-2Q
Aksesuarlar 23
Siemens 3KD4340-0PE10-0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1400-1AA10-1FA0 | Aksesuar · Commanding and signaling devices | |
| 3KD9304-7 | Aksesuar | |
| 3KD9304-6 | Aksesuar | |
| 3KD9304-1 | Aksesuar | |
| 3KD9318-0 | Aksesuar | |
| 3KF9212-0AA10 | Aksesuar | |
| 3KF9112-0AA10 | Aksesuar | |
| 3KD9308-8 | Aksesuar | |
| 3KD9304-8 | Aksesuar | |
| 3KD9304-5 | Aksesuar | |
| 3SU1400-1AA10-1PA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1NA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1MA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1LA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1QA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1EA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1DA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1CA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1BA0 | Aksesuar · Commanding and signaling devices | |
| 8UD1141-2AF25 | Seçmeli zorunlu ürün | |
| 8UD1141-2AF21 | Seçmeli zorunlu ürün | |
| 3KD9301-1 | Seçmeli zorunlu ürün | |
| 3KD9301-2 | Seçmeli zorunlu ürün |
