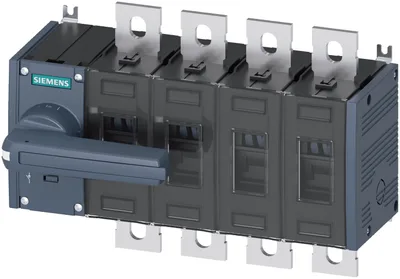

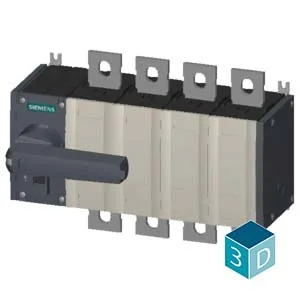

Siemens 3KD3642-0PE10-0
Switch disconnector 200 A, Size 3, 4-pole Front operating mechanism left Complete unit with direct operating mechanism gray flat terminal
product brand nameSENTRON
product designation3KD switch disconnector
design of the productSwitch
design of the actuating elementLong rotary knob
type of the driving mechanismFront operating mechanism
number of poles4
Ürün Hakkında
Switch disconnector 200 A, Size 3, 4-pole Front operating mechanism left Complete unit with direct operating mechanism gray flat terminal
Siemens 3KD3642-0PE10-0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designation3KD switch disconnector
design of the productSwitch
display version for switch position indicator manual operationON-OFF-TEST
design of the actuating elementLong rotary knob
type of the driving mechanismFront operating mechanism
type of the driving mechanism motor driveYok
General technical data
number of poles4
type of devicefixed mounting
size of switch disconnector3
mechanical service life (operating cycles) typical15.000
at AC-23 A at 690 V1.000
at DC-23 A at 440 V1.000
with closed switch at 1000 V for combination switch +gG/aM SITOR fuse maximum19.815 A²·s
of the fuse at 500 V maximum permissible780.005 A²·s
of the gG fuse at 690 V maximum permissible525.005 A²·s
of the gG/aM SITOR fuse at 1000 V maximum permissible260.000 A²·s
of the molded case circuit breaker at 415 V maximum permissible4.750.000 A²·s
position of the switch operating mechanismthe left end
overvoltage in percent relative to the operating voltage at AC at 400, 500, 690 V at 50/60 Hz10 %
overvoltage categoryIV
degree of pollution3
Voltage
with degree of pollution 2 at DC rated value440 V / 3
with degree of pollution 3 at DC rated value440 V / 3
rated value1.000 V
surge voltage resistance rated value12 kV
operational current at AC-22 A at 1000 V maximum200 A
let-through current of the fuse at 500 V maximum permissible25.700 A
let-through current of the gG fuse at 690 V maximum permissible29.500 A
Besleme gerilimi
operating voltage at AC rated value1.000 V
Protection class
protection class IPIP00
with closed switch with cover or cable lug coverIP20
on the frontIP00
Dissipation
with conventional rated thermal current per pole4 W
with conventional rated thermal current per device16 W
for rated value of the current at AC in hot operating state per pole4 W
Main circuit
at AC-23 A at 500 V rated value132 kW
operational current rated value200 A
Auxiliary circuit
number of connected NC contacts for auxiliary contacts0
number of connected NO contacts for auxiliary contacts0
number of connected CO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts0
number of NC contacts for auxiliary contacts6
number of NO contacts for auxiliary contacts6
Suitability
suitability for use main switchVar
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchYok
suitability for use according to IEC 62626-1 safety switchYok
suitability for use maintenance/repair switchVar
Product details
product feature interlockVar
trip indicatorYok
voltage triggerYok
undervoltage releaseYok
undervoltage release with leading contactYok
product extension auxiliary switchVar
product extension optional motor driveYok
product extension optional voltage triggerYok
Short circuit
short-time withstand current (Icw) at 1000 V AC/440 V DC limited to 1 s rated value13 kA
at 1000 V AC without fuse link rated value minimum36 kA
at DC 440 V without fuse link rated value minimum36 kA
without fuse link rated value minimum36 kA
at 415 V by molded case circuit breaker rated value65 kA
at 500 V by gG fuse rated value100 kA
at 690 V by gG fuse rated value100 kA
Connections
stranded with lug1x (25... 240 mm²), 2x (25... 120 mm²)
with combination of Al conductor+switch200A / 240 mm²
for copper busbar'1 x (30 x 10 mm²)
stranded with lug according to DIN 462341x (6... 240 mm²), 2x (6... 150 mm²)
stranded with lug according to DIN 462351x (16... 185 mm²), 2x (16...150 mm²)
type of electrical connection for main current circuitflat connector

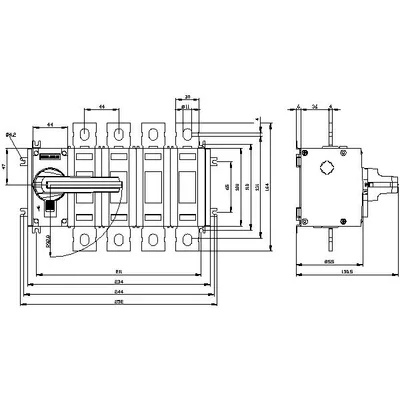

Mechanical Design
height164 mm
width234 mm
depth131 mm
fastening methodscrew fixing
4-hole front mountingYok
front mounting with central attachmentYok
rail mountingYok
mounting positionany
Net Weight3,585 kg
Environmental conditions
minimum-25 °C
maximum70 °C
minimum-50 °C
maximum80 °C
Certificates
reference code according to IEC 81346-2Q
Aksesuarlar 20
Siemens 3KD3642-0PE10-0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1400-1AA10-1FA0 | Aksesuar · Commanding and signaling devices | |
| 3KD9304-7 | Aksesuar | |
| 3KD9304-6 | Aksesuar | |
| 3KD9304-1 | Aksesuar | |
| 3KD9140-0 | Aksesuar | |
| 3KD9318-0 | Aksesuar | |
| 3KF9212-0AA10 | Aksesuar | |
| 3KD9308-8 | Aksesuar | |
| 3KD9304-8 | Aksesuar | |
| 3KD9304-5 | Aksesuar | |
| 3SU1400-1AA10-1PA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1NA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1MA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1LA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1QA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1EA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1DA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1CA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1BA0 | Aksesuar · Commanding and signaling devices | |
| 3KF9112-0AA10 | Aksesuar |
