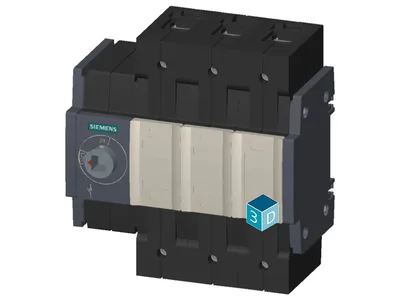

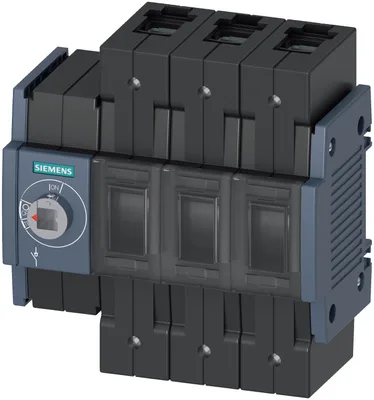

Siemens 3KD3530-2NE10-0
switch disconnector 160A, frame size 2, 3-pole DC600V, front operating mech. left, basic unit without handle, box terminal, DC-21B
product brand nameSENTRON
product designation3KD switch disconnector
design of the productSwitch
design of the actuating elementLong rotary knob
type of the driving mechanismFront operating mechanism
number of poles3
Ürün Hakkında
switch disconnector 160A, frame size 2, 3-pole DC600V, front operating mech. left, basic unit without handle, box terminal, DC-21B
Siemens 3KD3530-2NE10-0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designation3KD switch disconnector
design of the productSwitch
display version for switch position indicator manual operationON-OFF-TEST
design of the actuating elementLong rotary knob
type of the driving mechanismFront operating mechanism
type of the driving mechanism motor driveYok
General technical data
number of poles3
type of devicefixed mounting
size of switch disconnector2
mechanical service life (operating cycles) typical15.000
at AC-23 A at 690 V1.500
at DC-23 A at 440 V1.500
position of the switch operating mechanismthe left end
overvoltage categoryIII
degree of pollution3
Voltage
with degree of pollution 2 at DC rated value600V
with degree of pollution 3 at DC rated value600V
rated value1.000 V
with degree of pollution 3 at DC rated value600 V
surge voltage resistance rated value8 kV
Protection class
protection class IPIP20
with closed switch with cover or cable lug coverIP20
on the frontIP20
Dissipation
with conventional rated thermal current per pole4,6 W
with conventional rated thermal current per device13,8 W
for rated value of the current at AC in hot operating state per pole4,6 W
Main circuit
operational current rated value160 A
Auxiliary circuit
number of connected NC contacts for auxiliary contacts0
number of connected NO contacts for auxiliary contacts0
number of connected CO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts4
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
Suitability
suitability for use main switchVar
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchYok
suitability for use according to IEC 62626-1 safety switchYok
suitability for use maintenance/repair switchVar
Product details
product feature interlockVar
trip indicatorYok
voltage triggerYok
undervoltage releaseYok
undervoltage release with leading contactYok
product extension auxiliary switchVar
product extension optional motor driveYok
product extension optional voltage triggerYok
Connections
type of connectable conductor cross-sections with flexible busbar3x (0.8x14 mm²)
for copper busbar'1 x (3 x 14 mm²)
solid1x (2,5... 16 mm²)
finely stranded with core end processing1x (2,5... 70 mm²)
stranded1x (10... 70 mm²)
type of electrical connection for main current circuitbox terminal

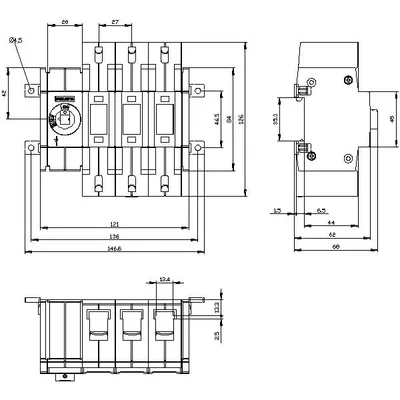

Mechanical Design
height168 mm
width121 mm
depth68 mm
fastening methodScrew fixing ve standard rail mounting 35 mm
4-hole front mountingYok
front mounting with central attachmentYok
rail mountingVar
mounting positionany
Net Weight153 kg
Environmental conditions
minimum-25 °C
maximum70 °C
minimum-50 °C
maximum80 °C
Certificates
reference code according to IEC 81346-2Q
