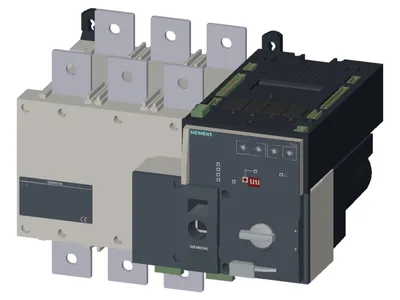

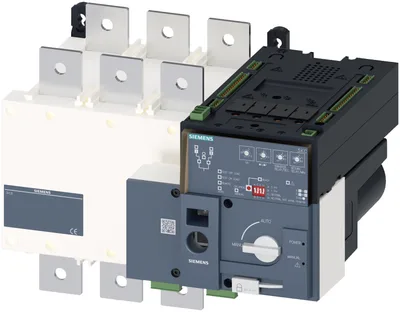

Siemens 3KC8346-0EA22-0GA3
SENTRON, ATE, transfer switching equipment 3KC, automatically, ATSE, 3- pole, Iu: 630 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 400 A, Ie at AC-23 A at 690 V: 400 A, screw mounting, motorized operating mechanism, at the right end, long handle, busbar connection
product brand nameSENTRON
product categoryATE
product designationtransfer switching equipment
design of the productautomatic
design of the actuating elementLong rotary knob
design of handleHandle
Ürün Hakkında
SENTRON, ATE, transfer switching equipment 3KC, automatically, ATSE, 3- pole, Iu: 630 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 400 A, Ie at AC-23 A at 690 V: 400 A, screw mounting, motorized operating mechanism, at the right end, long handle, busbar connection
Siemens 3KC8346-0EA22-0GA3
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product categoryATE
product designationtransfer switching equipment
design of the productautomatic
display version for switch position indicator manual operationI - O - II
design of the actuating elementLong rotary knob
design of handleHandle
type of the driving mechanismmotorized operating mechanism
type of the driving mechanism motor driveVar
General technical data
number of poles3
type of devicefixed mounting
mechanical service life (operating cycles) for function sequence O-I-O typical4.000
with closed switch at 690 V for combination switch + gG fuse maximum5.269.000 A²·s
of the fuse at 415 V maximum permissible3.000.000 A²·s
of the gG fuse at 690 V maximum permissible4.500.000 A²·s
position of the switch operating mechanismthe right end
overvoltage categoryIII
degree of pollution3
rated value1.000 V
with degree of pollution 3 at DC rated value1.000 V
Besleme gerilimi
minimum166 V
maximum332 V
Protection class
protection class IPIP00
with closed switch with cover or cable lug coverIP20
on the frontIP00
Dissipation
with conventional rated thermal current per device97,2 W
Main circuit
minimum45 Hz
maximum65 Hz
operational current rated value630 A
Auxiliary circuit
number of connected NC contacts for auxiliary contacts0
number of connected NO contacts for auxiliary contacts3
number of connected CO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts4
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
suitability for use main switchVar
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchYok
suitability for use maintenance/repair switchVar
product feature interlockVar
product extension auxiliary switchVar
product extension optional motor driveYok
product extension optional voltage triggerYok
Short circuit
at 415 V AC without fuse link according to IEC 60947-6-1 rated value minimum25,2 kA
at 690 V AC without fuse link according to IEC 60947-3 rated value minimum17 kA
at 415 V by gG fuse according to IEC 60947-6-1 rated value50 kA
at 415 V by gG fuse rated value50 kA
at 690 V by gG fuse according to IEC 60947-3 rated value50 kA
input current at digital input with signal <0> maximum2,1 mA
number of digital inputs11
design of the switching inputConnected with control terminal
relay design2 relays: 2NO, 2A 250 VAC veya 2A 24 VDC; 1 relay: 1CO, 2A 250 VAC veya 2A 24 VDC
pulse duration minimum0,06 s
input delay time0,046 s
number of monitored phases3
Connections
for copper busbar2x40x5
stranded with lug according to DIN 462342 x (150...300 mm²)
of the inputs and outputsRemovable/insertable
for main current circuitbusbar connection

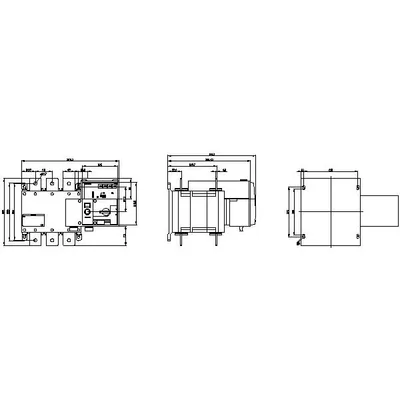

Mechanical Design
height260 mm
width377 mm
depth368,5 mm
fastening methodscrew fixing
4-hole front mountingYok
front mounting with central attachmentYok
rail mountingYok
Net Weight16,44 kg
Environmental conditions
minimum-20 °C
maximum70 °C
minimum-40 °C
maximum70 °C
Aksesuarlar 17
Siemens 3KC8346-0EA22-0GA3 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3KC9803-1 | Aksesuar | |
| 3KC9625-1 | Aksesuar | |
| 3KC9000-8TL40 | Aksesuar | |
| 3KD9504-6 | Aksesuar | |
| 3KC9820-6 | Aksesuar | |
| 3KC9824-1 | Aksesuar | |
| 3KC9826-0 | Aksesuar | |
| 3KC9821-0 | Aksesuar | |
| 3KC9820-4 | Aksesuar | |
| 3KC9826-2 | Aksesuar | |
| 3KC9827-2 | Aksesuar | |
| 3KC9808-2 | Aksesuar | |
| 3KC9818-4 | Seçmeli zorunlu ürün | |
| 3KC9832-3 | Seçmeli zorunlu ürün | |
| 3KC9822-3 | Seçmeli zorunlu ürün | |
| 3KC9833-3 | Seçmeli zorunlu ürün | |
| 3KC9834-3 | Seçmeli zorunlu ürün |
