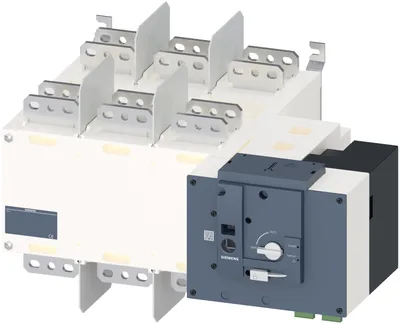

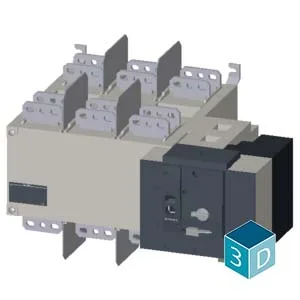

Siemens 3KC4358-0JA21-0AA3
SENTRON, transfer anahtarlama equipment 3KC, remotely operated, RTSE, 3-pole, Iu: 2500 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 1250 A, vidalı montaj, motorized çalışma mechanism, at the right end, long handle, bara bağlantı
product brand nameSENTRON
product designationtransfer switching equipment
design of the productremote-controlled
design of the actuating elementLong rotary knob
design of handleHandle
type of the driving mechanismmotorized operating mechanism
Ürün Hakkında
SENTRON, transfer anahtarlama equipment 3KC, remotely operated, RTSE, 3-pole, Iu: 2500 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 1250 A, vidalı montaj, motorized çalışma mechanism, at the right end, long handle, bara bağlantı
Siemens 3KC4358-0JA21-0AA3
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationtransfer switching equipment
design of the productremote-controlled
display version for switch position indicator manual operationI - O - II
design of the actuating elementLong rotary knob
design of handleHandle
type of the driving mechanismmotorized operating mechanism
type of the driving mechanism motor driveVar
General technical data
number of poles3
type of devicefixed mounting
mechanical service life (operating cycles) for function sequence O-I-O typical1.500
position of the switch operating mechanismthe right end
overvoltage categoryIV
degree of pollution3
rated value1.000 V
Besleme gerilimi
minimum166 V
maximum332 V
Protection class
protection class IPIP00
with closed switch with cover or cable lug coverIP20
on the frontIP00
Dissipation
with conventional rated thermal current per device765 W
Main circuit
minimum45 Hz
maximum65 Hz
operational current rated value2.500 A
Auxiliary circuit
number of connected NC contacts for auxiliary contacts0
number of connected NO contacts for auxiliary contacts3
number of connected CO contacts for auxiliary contacts4
number of CO contacts for auxiliary contacts0
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
suitability for use main switchVar
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchYok
suitability for use maintenance/repair switchVar
product feature interlockVar
product extension auxiliary switchYok
product extension optional motor driveYok
product extension optional voltage triggerYok
Short circuit
at 415 V AC without fuse link according to IEC 60947-3 rated value minimum105 kA
at 415 V AC without fuse link according to IEC 60947-6-1 rated value minimum105 kA
input current at digital input with signal <0> maximum1 mA
number of digital inputs5
design of the switching inputConnected with control terminal
relay design1 relay: 1NO, 2A 250 VAC veya 2A 24 VDC.
pulse duration minimum0,06 s
input delay time0,046 s
Connections
for copper busbar2x100x10
of the inputs and outputsRemovable/insertable
for main current circuitbusbar connection
Mechanical Design
height380 mm
width596 mm
depth569 mm
fastening methodscrew fixing
4-hole front mountingYok
front mounting with central attachmentYok
rail mountingYok
Net Weight66,25 kg
Environmental conditions
minimum-20 °C
maximum70 °C
minimum-40 °C
maximum70 °C
Aksesuarlar 11
Siemens 3KC4358-0JA21-0AA3 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
