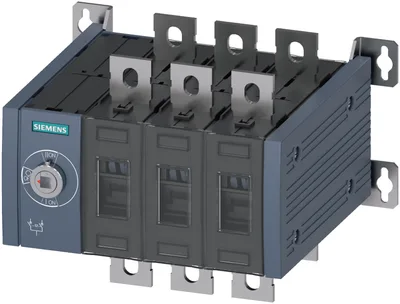

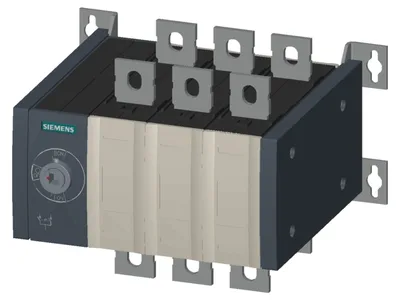

Siemens 3KC0338-0PE00-0AA0
SENTRON, 3KC transfer switching equipment, manually operated, MTSE, size: 3, 3-pole, Iu: 250 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 250 A, Ie at AC-23 A at 690 V: 250 A, Screw mounting, front operating mechanism, at the left end, without handle, busbar connection
product brand nameSENTRON
product designationtransfer switching equipment
design of the productmanually operated
design of the actuating elementWithout handle
design of handlewithout
type of the driving mechanismFront operating mechanism
Ürün Hakkında
SENTRON, 3KC transfer switching equipment, manually operated, MTSE, size: 3, 3-pole, Iu: 250 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 250 A, Ie at AC-23 A at 690 V: 250 A, Screw mounting, front operating mechanism, at the left end, without handle, busbar connection
Siemens 3KC0338-0PE00-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationtransfer switching equipment
design of the productmanually operated
display version for switch position indicator door-coupling rotary operating mechanismI ON- O OFF- II ON
design of the actuating elementWithout handle
design of handlewithout
type of the driving mechanismFront operating mechanism
type of the driving mechanism motor driveYok
General technical data
number of poles3
type of devicefixed mounting
size of switch disconnector3
mechanical service life (operating cycles) for function sequence O-I-O typical10.000
with closed switch for combination switch + fuse at 500 V maximum426.500 A²·s
with closed switch at 690 V for combination switch + gG fuse maximum348.000 A²·s
of the fuse at 415 V maximum permissible780.005 A²·s
of the fuse at 500 V maximum permissible780.005 A²·s
of the gG fuse at 690 V maximum permissible525.005 A²·s
with closed switch for combination switch + fuse at 415 V maximum426.500 A²·s
position of the switch operating mechanismthe left end
overvoltage categoryIV
degree of pollution3
rated value1.000 V
Protection class
protection class IPIP00
with closed switch with cover or cable lug coverIP20
on the frontIP00
Dissipation
with conventional rated thermal current per device21 W
Main circuit
at AC-23 A at 400 V at 50/60 Hz rated value132 kW
at AC-23 A at 500 V rated value160 kW
operational current rated value250 A
Auxiliary circuit
number of connected NC contacts for auxiliary contacts0
number of connected NO contacts for auxiliary contacts0
number of connected CO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts0
number of NC contacts for auxiliary contacts12
number of NO contacts for auxiliary contacts12
suitability for use main switchVar
suitability for use switch disconnectorVar
suitability for use EMERGENCY OFF switchVar
suitability for use maintenance/repair switchVar
product feature interlockYok
product extension auxiliary switchVar
product extension optional motor driveYok
product extension optional voltage triggerYok
Short circuit
at 415 V AC without fuse link according to IEC 60947-6-1 rated value minimum36 kA
at 690 V AC without fuse link according to IEC 60947-3 rated value minimum26 kA
at 415 V by gG fuse according to IEC 60947-6-1 rated value100 kA
at 415 V by gG fuse rated value100 kA
at 500 V by gG fuse according to IEC 60947-3 rated value100 kA
at 690 V by gG fuse according to IEC 60947-3 rated value65 kA
Connections
type of connectable conductor cross-sections for aluminum conductor stranded with lug1x (25... 240 mm²), 2x (25... 120 mm²)
with combination of Al conductor+switch250 A / 240 mm²
for copper busbar1x (30x10 mm²)
stranded with lug according to DIN 462341x (6... 240 mm²), 2x (6... 150 mm²)
stranded with lug according to DIN 462351x (16... 185 mm²), 2x (16...150 mm²)
for main current circuitbusbar connection
Mechanical Design
height164 mm
width235 mm
depth197,2 mm
fastening methodscrew fixing
4-hole front mountingYok
front mounting with central attachmentYok
rail mountingYok
Net Weight6,612 kg
Environmental conditions
minimum-25 °C
maximum70 °C
minimum-50 °C
maximum80 °C
Aksesuarlar 17
Siemens 3KC0338-0PE00-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1400-1AA10-1FA0 | Aksesuar · Commanding and signaling devices | |
| 3KD9308-6 | Aksesuar | |
| 3KD9304-7 | Aksesuar | |
| 3KD9304-6 | Aksesuar | |
| 3SU1400-1AA10-1PA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1NA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1LA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1QA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1EA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1DA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1CA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1BA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1MA0 | Aksesuar · Commanding and signaling devices | |
| 3KC9301-1 | Seçmeli zorunlu ürün | |
| 8UD1141-2AE21 | Seçmeli zorunlu ürün | |
| 3KC9301-2 | Seçmeli zorunlu ürün | |
| 3KC9318-0 | Seçmeli zorunlu ürün |
