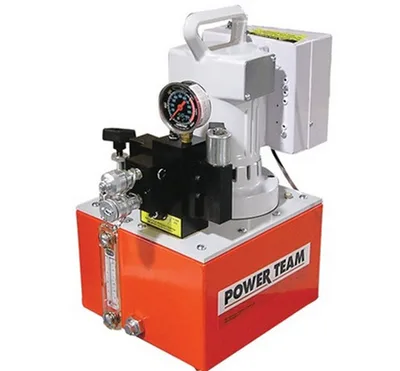

Power Team PE55TWP-4-E220
Vanguard® PE55 Electric Torque Wrench Pump - Single or Double-Acting, 1-1/8 hp, 2.50 gal Reservoir, 525.0 in³ Usable Capacity, 56 in³/min Flow at Max psi, 220 V, 50/60 Hz
Pump TypePE55 Electric Torque Wrench Pump
Power Rating1-1/8 hp
Voltage220 V
Frequency50/60 Hz
UPC_NO662536506441
Amperage13.0 A
Ürün Hakkında
Vanguard® PE55 Electric Torque Wrench Pump - Single or Double-Acting, 1-1/8 hp, 2.50 gal Reservoir, 525.0 in³ Usable Capacity, 56 in³/min Flow at Max psi, 220 V, 50/60 Hz
Özellikler ve Avantajlar
- Two-speed high performance pump
- External adjustable pressure regulator
- Retract side internal relief valve protects tool
- Hand remote
- Use for double or single acting tools
- Four-tool manifold (-4 model only) allows use of up to four tools simultaneously
Power Team PE55TWP-4-E220
- Orijinal ve sertifikalı Power Team ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Pump TypePE55 Electric Torque Wrench Pump
Power Rating1-1/8 hp
Voltage220 V
Frequency50/60 Hz
UPC_NO662536506441
Amperage13.0 A
Max Rpm12000 rpm
Valve Part Number9592
Valve Type3-Way/4-Way, 2-Position Solenoid Valve
Valve Type/Function3-Way/4-Way, 2-Position / Advance Hold Return
Valve Function DetailsOil is directed to “extend” side of cylinder, oil from “retract” side goes to reservoir; cylinder in advance position “holds” with pump shut off. Oil is directed to “retract” side of cylinder; oil from “extend” side goes to reservoir. Cylinder will not “hold” in the “return” position with motor running or shut off.
Control SwitchRemote Motor & Valve
Reservoir Capacity2.50 gal (US)
Reservoir Capacity Cubic Inches577.5 in³
Usable Oil Capacity525.0 in³
Typical Flow At Max Psi56 in³/min
Typical Flow At 10000 Psi56 in³/min
Typical Flow At 5000 Psi74 in³/min
Typical Flow At 700 Psi440 in³/min
Typical Flow At 0 Psi704 in³/min
Max Pressure10000 psi
Sound Level At Idle 10000 Psi90/89 dB(a)
Overall Length9.500 in
Overall Width18.490 in
Overall Height19.150 in
Weight78.00 lbs
