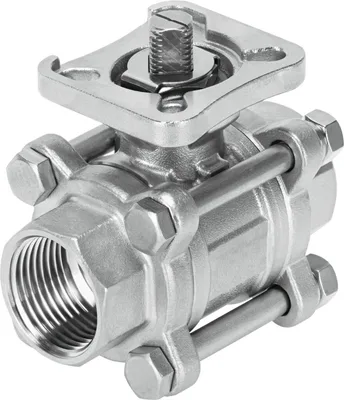

Festo VZBE-21/2-T-63-T-2-F0710-V15V16
Küresel vana. Kilitlenebilir el kollu, 2 yollu manuel. ISO 5211 kafa flanşlı 2 ve 3 yollu, isteğe bağlı kilitlenebilir el kollu. Paslanmaz çelik tasarım. ASME B1.20.1'e göre boru dişi veya ASME B16.11'e göre kaynak ucu. Opsiyonel olarak önceden monte edilmiş el koluyla
Tasarım2 yollu küresel vana
Kumanda tipiMekanik
Sızdırmazlık prensibiYumuşak
Montaj konumuHerhangi
Montaj tipiHat içi montaj
Proses valfi bağlantısı2 1/2 NPT
Ürün Hakkında
Küresel vana. Kilitlenebilir el kollu, 2 yollu manuel. ISO 5211 kafa flanşlı 2 ve 3 yollu, isteğe bağlı kilitlenebilir el kollu. Paslanmaz çelik tasarım. ASME B1.20.1'e göre boru dişi veya ASME B16.11'e göre kaynak ucu. Opsiyonel olarak önceden monte edilmiş el koluyla
Festo VZBE-21/2-T-63-T-2-F0710-V15V16
- Orijinal ve sertifikalı Festo ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Tasarım2 yollu küresel vana
Kumanda tipiMekanik
Sızdırmazlık prensibiYumuşak
Montaj konumuHerhangi
Montaj tipiHat içi montaj
Proses valfi bağlantısı2 1/2 NPT
Anahtarlama konumu göstergesiYuva yönü = akış yönü
Flanş delik düzeniF0710
İç çap63
Nominal boyut DN65
Valf fonksiyonu2/2
Akış yönüTersinir
Nominal basınç PN63
Fark basıncında kopma torku, nominal basınç, proses valfi PN79
Dayandığı standartISO 5211
Sembol00991458
AkışkanBuhar, ISO 8573-1:2010 [-:-:-] uyarınca basınçlı hava, İnert gazlar, Su, Nötr akışkanlar
Ortam sıcaklığı (akışkan)-20, 200
Debi Kv684
Malzemelere ilişkin notRoHS uyumlu
LABS (PWIS) uygunluğuVDMA24364 bölge III
Gövde malzemesiDöküm paslanmaz çelik
Gövde malzeme numarası1,4408
Yuva contası malzemesiPTFE
Sızdırmazlık malzemesiFloro kauçuk, PTFE
Bilye malzemesiYüksek alaşımlı paslanmaz çelik
Bilye malzeme numarası1,4401
Mil malzemesiYüksek alaşımlı paslanmaz çelik
Mil malzeme numarası1,4401
Ürün ağırlığı5050
OnayCRN
CE işareti (uygunluk beyanına bakınız)AB Basınçlı Ekipman Direktifi'ne uygun
Patlama korumasıBölge 1 (ATEX), Bölge 2 (ATEX), Bölge 21 (ATEX), Bölge 22 (ATEX)
Korozyon direnci sınıfı CRC4 - Çok yüksek korozyon zorlanması
Aksesuarlar 90
Festo VZBE-21/2-T-63-T-2-F0710-V15V16 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| DAPS-0106-090-R-F0507 | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS1-F0507 | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS2-F0507 | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS3-F0507 | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS4-F0507 | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-R-F0507-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS1-F0507-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS2-F0507-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS3-F0507-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS4-F0507-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0106-090-R-F0507-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS2-F0507-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS3-F0507-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS4-F0507-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0106-090-R-F0507-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0106-090-R-F0507-MW-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS1-F0507-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS2-F0507-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS3-F0507-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS4-F0507-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0106-090-R-F0507-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS4-F0507-T4 | Quarter turn actuator · Connection accessories | |
| DFPD-80- | Quarter turn actuator · Connection accessories | |
| DFPD-120- | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RD-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RS30-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RS60-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RS30-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RS60-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RD-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS30-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS60-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS30-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS60-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-180-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-135-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-120-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-80-RP-90-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-80-RP-90-RD-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-90-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-90-RD-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-80-RP-90-RS30-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-80-RP-90-RS60-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-80-RP-90-RS30-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-80-RP-90-RS60-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-90-RS30-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-90-RS60-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-90-RS30-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-90-RS60-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-40-RP-180-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-40-RP-135-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-40-RP-120-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-180-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-135-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-120-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DARQ-R-A-S22-S17-22 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S22-S17-22-P5 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S22-S17-22-P10 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S22-S17-22-P50 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S27-S17-27 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-K-V-F10S22-F07S17-R1 | Mounting kit · Mounting accessories | |
| DFPD-80-RP-90-RS35-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RS45-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RS60-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-80-RP-90-RS35-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-80-RP-90-RS45-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-80-RP-90-RS60-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RS35-F07-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RS45-F07-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RS60-F07-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS35-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS45-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS60-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-90-RS35-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-90-RS45-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-90-RS60-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS35-F07-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS45-F07-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS60-F07-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS35-F07-17-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS45-F07-17-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS60-F07-17-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RS35-F07-17-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RS45-F07-17-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RS60-F07-17-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS35-F07-17-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS45-F07-17-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS60-F07-17-R3-C-VDE2 | Quarter turn actuator · Connection accessories |
