Festo
MPA-FB-VI
MFR #MPA-FB-VI
SKU #YLSABGWZTDXERP
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

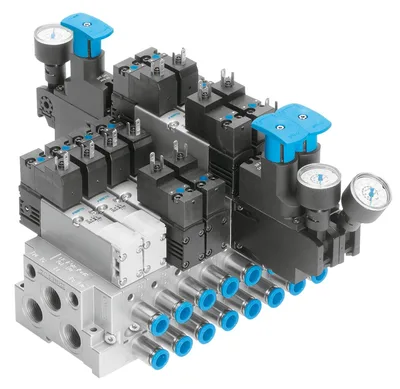

Festo VTIA
Valf manifold grubu. ISO 15407-1 ile uyumlu. Geniş bireysel elektrik bağlantısı seçeneği. Standart elektrik bağlantısı: C tipi kare fiş veya M8/M12 merkezi fişli tekil bağlantı. İki valf boyutu birleştirilebilir: ISO boyut 01/26 mm ve ISO boyut 02/18 mm
Elektriksel kontrolTekli bağlantı
Klemens tipi16
Ortam sıcaklığı (akışkan)-5, 50
Ortam sıcaklığı-5, 50
Depolama sıcaklığı-20, 60
Bağıl hava nemi0 - 90%
Ürün Hakkında
Valf manifold grubu. ISO 15407-1 ile uyumlu. Geniş bireysel elektrik bağlantısı seçeneği. Standart elektrik bağlantısı: C tipi kare fiş veya M8/M12 merkezi fişli tekil bağlantı. İki valf boyutu birleştirilebilir: ISO boyut 01/26 mm ve ISO boyut 02/18 mm
Festo VTIA
- Orijinal ve sertifikalı Festo ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Elektriksel kontrolTekli bağlantı
Klemens tipi16
Çalışma ortamıISO 8573-1:2010 [7:4:4]'e göre basınçlı hava
Pilot akışkanISO 8573-1:2010 [7:4:4]'e göre basınçlı hava
Çalışma ve pilot ortamı hakkında notYağlı çalışma mümkündür (bu durumda her zaman yağlı çalışma gerekir)
Ortam sıcaklığı (akışkan)-5, 50
Ortam sıcaklığı-5, 50
Depolama sıcaklığı-20, 60
Bağıl hava nemi0 - 90%
Koruma sınıfıIP65, NEMA 4
Korozyon direnci sınıfı CRC0 - Korozyon zorlanması yok
Çalışma basıncı-0.09, 1.6
Çalışma basıncı-0.9, 16
Pilot basıncı0.3, 1
Pilot basıncı3, 10
LABS (PWIS) uygunluğuVDMA24364-B2-L
Malzemelere ilişkin notRoHS uyumlu
Sızdırmazlık malzemesiHNBR, NBR
Valf terminali yapısıModüler, valf boyutları karıştırılabilir
Maks. valf pozisyonu sayısı16
Maks. basınç bölgesi sayısı3
Kumanda tipiElektrikli
Valf fonksiyonu2x3/2 normalde kapalı monostabil, 2x3/2 normalde açık monostabil, 2x3/2 yollu, açık/kapalı, monostabil, 5/2 yollu, çift bobinli, 5/2 yollu, bistabil, baskın, 5/2 yollu, tek bobinli, 5/3 yollu, basınçlı, 5/3 egzozlu
TasarımPistonlu sürgülü valf
Valf boyutu26
Maks. standart nominal debi18 mm'de 550 l/min, 26 mm'de 1100 l/min
Genişlik18 mm, 26 mm
Vakuma uygunlukEvet
Egzoz havası fonksiyonuKısma plakası üzerinden
Pnömatik çalışma portuG1/8, G1/4, G3/8, G1/2, QS-8, QS-10, QS-12, QS-16
İzin verilen gerilim dalgalanmaları-15% / +10%
Aksesuarlar 140
Festo VTIA motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| B-1/8 | Blanking plug · Other connectors | |
| B-1/4 | Blanking plug · Other connectors | |
| B-3/8 | Blanking plug · Other connectors | |
| B-1/2 | Blanking plug · Other connectors | |
| U-1/8-B | Silencer · Silencer | |
| U-3/8-B | Silencer · Silencer | |
| U-1/2-B | Silencer · Silencer | |
| NRH-35-2000 | DIN mounting rail · Mounting accessories | |
| QS-G1/8-4-100 | Push-in fitting · Push-in fittings | |
| QS-G1/8-6-100 | Push-in fitting · Push-in fittings | |
| QS-G1/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-6-100 | Push-in fitting · Push-in fittings | |
| QS-G1/4-8-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-12-20 | Push-in fitting · Push-in fittings | |
| QS-G3/8-8-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-50 | Push-in fitting · Push-in fittings | |
| QS-G3/8-12-20 | Push-in fitting · Push-in fittings | |
| QS-G1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-G1/2-16-20 | Push-in fitting · Push-in fittings | |
| QS-G1/8-10-I | Push-in fitting · Push-in fittings | |
| QS-G1/8-10-I-100 | Push-in fitting · Push-in fittings | |
| QS-G1/8-4-I-100 | Push-in fitting · Push-in fittings | |
| QS-G1/8-6-I-100 | Push-in fitting · Push-in fittings | |
| QS-G1/8-8-I-100 | Push-in fitting · Push-in fittings | |
| NAW-1/4-01-VDMA | Manifold sub-base · Connection accessories | |
| NAW-1/4-01-VDMA-VL | Manifold sub-base · Connection accessories | |
| NEV-01-VDMA | End plate kit · Connection accessories | |
| NDV-01-VDMA | Cover plate · Connection accessories | |
| NZV-01/02-VDMA | Intermediate plate · Connection accessories | |
| NAS-1/4-01-VDMA | Individual sub-base · Connection accessories | |
| NAW-1/8-02-VDMA | Manifold sub-base · Connection accessories | |
| NAW-1/8-02-VDMA-VL | Manifold sub-base · Connection accessories | |
| NEV-02-VDMA | End plate kit · Connection accessories | |
| NDV-02-VDMA | Cover plate · Connection accessories | |
| NAS-1/8-02-VDMA | Individual sub-base · Connection accessories | |
| QS-G1/8-4 | Push-in fitting · Push-in fittings | |
| QS-G1/8-6 | Push-in fitting · Push-in fittings | |
| QS-G1/4-6 | Push-in fitting · Push-in fittings | |
| QS-G1/8-8 | Push-in fitting · Push-in fittings | |
| QS-G1/4-8 | Push-in fitting · Push-in fittings | |
| QS-G3/8-8 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10 | Push-in fitting · Push-in fittings | |
| QS-G3/8-10 | Push-in fitting · Push-in fittings | |
| QS-G3/8-12 | Push-in fitting · Push-in fittings | |
| QS-G1/2-12 | Push-in fitting · Push-in fittings | |
| QS-G1/2-16 | Push-in fitting · Push-in fittings | |
| QS-G1/8-4-I | Push-in fitting · Push-in fittings | |
| QS-G1/8-6-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-6-I | Push-in fitting · Push-in fittings | |
| QS-G1/8-8-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-8-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-8-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-10-I | Push-in fitting · Push-in fittings | |
| QS-G3/8-12-I | Push-in fitting · Push-in fittings | |
| QS-G1/2-12-I | Push-in fitting · Push-in fittings | |
| QS-V0-G1/8-6 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/8-8 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/4-6 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/4-8 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/4-10 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/4-12 | Push-in fitting · Push-in fittings | |
| QS-V0-G3/8-8 | Push-in fitting · Push-in fittings | |
| QS-V0-G3/8-10 | Push-in fitting · Push-in fittings | |
| QS-V0-G3/8-12 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/2-12 | Push-in fitting · Push-in fittings | |
| QS-G3/8-16 | Push-in fitting · Push-in fittings | |
| QS-G1/4-12 | Push-in fitting · Push-in fittings | |
| NEV-02-01-VDMA | End plate kit · Connection accessories | |
| B-1/8-100 | Blanking plug · Other connectors | |
| B-1/4-50 | Blanking plug · Other connectors | |
| B-3/8-20 | Blanking plug · Other connectors | |
| B-1/2-20 | Blanking plug · Other connectors | |
| ASCF-T-S6 | Inscription label holder · General accessories | |
| PAGN-26-16-P10 | Pressure gauge · General accessories | |
| PAGN-26-10-P10 | Pressure gauge · General accessories | |
| VABF-S3-2-R1C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S3-1-R1C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S3-2-R1C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S3-1-R1C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S3-2-R3C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S3-1-R3C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S3-2-R3C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S3-1-R3C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S3-2-R2C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S3-1-R2C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S3-2-R2C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S3-1-R2C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S3-2-R4C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S3-1-R4C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S3-2-R4C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S3-1-R4C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S3-2-R5C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S3-1-R5C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S3-2-R5C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S3-1-R5C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S3-2-L1D1-C | Vertical pressure shut-off plate · Connection accessories | |
| VABF-S3-1-L1D1-C | Vertical pressure shut-off plate · Connection accessories | |
| VABF-S3-2-F1B1-C | Throttle plate · Connection accessories | |
| VABF-S3-1-F1B1-C | Throttle plate · Connection accessories | |
| VABF-S3-1-P1A3-G14 | Vertical pressure supply plate · Connection accessories | |
| VABF-S3-2-P1A3-G18 | Vertical pressure supply plate · Connection accessories | |
| VSCS-B-M32-MH-WA-1C1 | Solenoid valve · Valves | |
| VSCS-B-M32-MH-WA-5C1 | Solenoid valve · Valves | |
| VSCS-B-M32-MH-WA-1AC1 | Solenoid valve · Valves | |
| VSCS-B-M32-MH-WA-2AC1 | Solenoid valve · Valves | |
| VSCS-B-M32-MH-WA-3AC1 | Solenoid valve · Valves | |
| VABF-S3-2-R6C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S3-1-R6C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S3-2-R6C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S3-1-R6C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S3-2-R7C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S3-1-R7C2-C-6 | Regulator plate · Connection accessories | |
| VABF-S3-2-R7C2-C-10 | Regulator plate · Connection accessories | |
| VABF-S3-1-R7C2-C-10 | Regulator plate · Connection accessories | |
| PAGN-26-232P-P10 | Pressure gauge · General accessories | |
| PAGN-26-145P-P10 | Pressure gauge · General accessories | |
| PAGN-26-1.6M-P10 | Pressure gauge · General accessories | |
| PAGN-26-1M-P10 | Pressure gauge · General accessories | |
| VSCS-B-M32-MD-WA-1C1 | Solenoid valve · Valves | |
| VSCS-B-M32-MD-WA-5C1 | Solenoid valve · Valves | |
| VSCS-B-M32-MD-WA-1AC1 | Solenoid valve · Valves | |
| VSCS-B-M32-MD-WA-2AC1 | Solenoid valve · Valves | |
| VSCS-B-M32-MD-WA-3AC1 | Solenoid valve · Valves | |
| VSCS-B-M32-MH-WA-1C1-8 | Solenoid valve · Valves | |
| VSCS-B-M32-MH-WA-5C1-8 | Solenoid valve · Valves | |
| VSCS-B-M32-MH-WA-1AC1-8 | Solenoid valve · Valves | |
| VSCS-B-M32-MH-WA-2AC1-8 | Solenoid valve · Valves | |
| VSCS-B-M32-MH-WA-3AC1-8 | Solenoid valve · Valves | |
| VSCS-B-M32-MD-WA-1C1-8 | Solenoid valve · Valves | |
| VSCS-B-M32-MD-WA-5C1-8 | Solenoid valve · Valves | |
| VSCS-B-M32-MD-WA-1AC1-8 | Solenoid valve · Valves | |
| VSCS-B-M32-MD-WA-2AC1-8 | Solenoid valve · Valves | |
| VSCS-B-M32-MD-WA-3AC1-8 | Solenoid valve · Valves | |
| PAGN-26-10-G18S | Pressure gauge · General accessories | |
| PAGN-26-1M-G18S | Pressure gauge · General accessories | |
| B-1/8-F1A | Blanking plug · Other connectors | |
| B-1/4-F1A | Blanking plug · Other connectors |
